- Monitored Parameters (up to 10):
Free & Total Chlorine, Color, Conductivity, DOC, ORP/Redox, pH, Pressure, Temperature, TOC, Turbidity, UV254 (SUVA) - Installation:
Direct on main pipe via 2-inch tapping saddle (DN 50–300+), no flow interruption, accurate under stagnant conditions - Technology & Maintenance:
Spectrometer (i::scan) and electrochemical sensors, no reagents or waste, minimal maintenance (1–2 times/year) - Data & Communication:
Real-time transmission to central database, supports event detection, alarms, and network monitoring

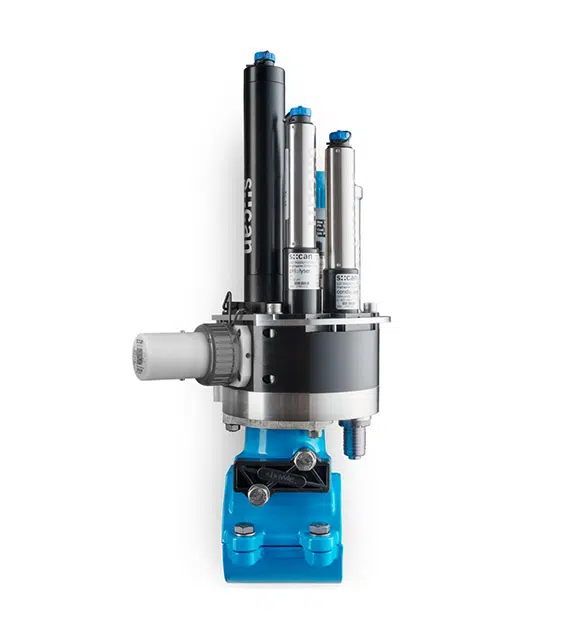

Pipe::scan
Drinking water quality monitoring in the network
The pipe::scan is a modular sensor system for monitoring drinking water quality in pipes under pressure. It measures up to 10 parameters in one device: TOC, DOC, UV254, Turbidity, Color, Chlorine, pH/Redox, Conductivity, Temperature and Pressure. The water quality data can be sent to any central database via almost any protocol. Multiple pipe::scans are the ideal solution to monitor drinking water at any point in the network.
- Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
- The web server on board – IoT enabled, no user software is needed to configure the probe
- Communicates directly with your mobile device via WLAN
- Choose exactly the parameters you want to measure – an unlimited number of parameters possible
- 8 GB onboard memory – capacity for logging data for many years
- Improved optical performance – revolutionary precision
- Fast measurement interval – every 10 seconds
- Extremely power efficient – sleep mode for low energy consumption
- Multiparameter probe with 1 mm, 5 mm, or 35 mm optical path length, ideal for wastewater, surface water, and drinking water
- Long term stable and maintenance-free in operation
- Factory precalibrated, local multi-point calibration possible
- Automatic cleaning with compressed air or brush/ruck::sack
- Drinking Water Treatment: Monitor quality during and after treatment for compliance and optimized chemical dosing.
- Distribution Network: Deploy multiple units for real-time monitoring and early detection of issues.
- Remote Monitoring: Send data to central platforms (e.g., BEACON) for analysis, reducing manual sampling.
- Process Optimization: Support decisions on coagulation, disinfection, and overall water safety.
