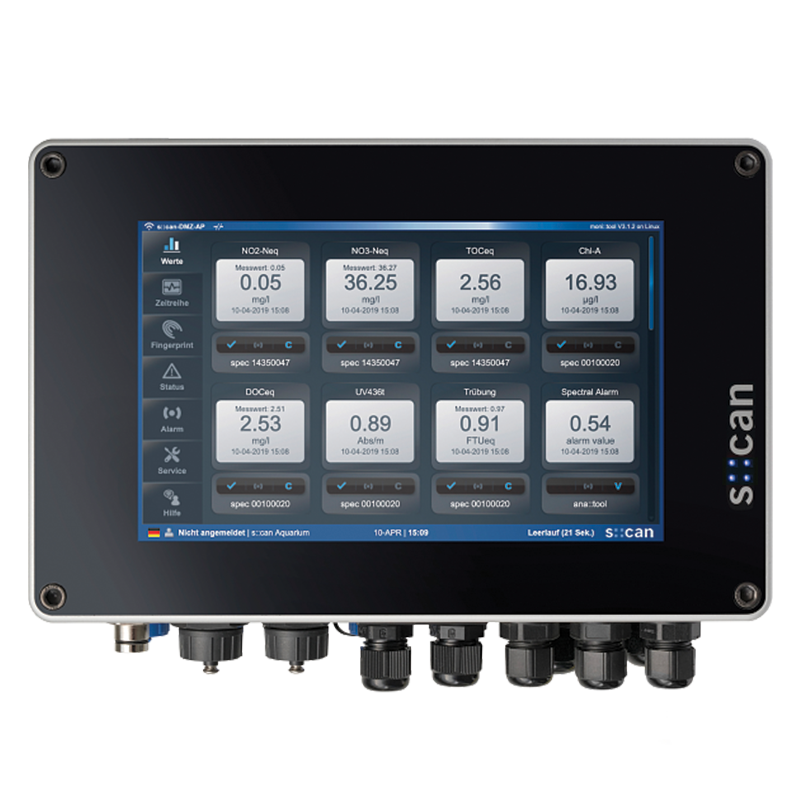

con::cube V3
con::cube – a compact, versatile terminal for data acquisition and station control. The newest processor technology and very flexible options for interfacing with SCADA or any central database systems make the con::cube in combination with moni::tool a powerful terminal for compact station control.
- s::can high-end IoT (Internet of Things) terminal based on an industrial PC, IP65
- Widescreen color graphical display (9”) and touchscreen
- Highly intuitive use, informative visualization & easy operation: time series, optical spectra, and all events in clear text
- Sensor and station management of up to 64 parameters: automatic cleaning, data logging, sample & calibration incl. history and multipoint calibration, sensor function check, user management, easy data transfer via USB-stick
- Low power operation with less than 3 watts (@ 15 min. measuring interval): wide range AC and DC variants available
- IoT (Internet of Things) and M2M (Machine to Machine) connectivity: 1 Gb/s Ethernet, 300 Mb/s Wi-Fi 802.11a/b/g/n and optional worldwide HSPA+ 3G interface, remote control (HTTP), data transfer into the cloud via FTP, SSH, and TML
- Process interface to SCADA via Modbus RTU/TCP, SDI-12, Profibus DP, analog 0/4-20mA, and relay outputs (state)
- Integration of third-party sensors via analog 0/4-20 mA and digital (solid-state) inputs, Modbus RTU/TCP
- Easily extendable: 8 slots to customize I/Os, moni::tool software pre-installed, additional software features like online data validation and event detection optional
- Collection System Monitoring: Detect pollution, monitor combined sewer overflows (CSOs), and identify atypical discharges in real time.
- Wastewater Treatment: Track influent quality, optimize biological treatment (nitrification/denitrification), ensure effluent compliance, and monitor sludge blankets.
- Drinking Water Treatment: Monitor raw water intake and treatment processes to ensure safe, high-quality drinking water.
- Industrial Effluent: Continuously monitor discharge quality to meet regulatory standards and optimize industrial processes.
- Environmental Monitoring: Assess surface water, groundwater, and other environmental bodies for overall water quality and ecological health.
- Display & Operation: 9-inch widescreen color touchscreen for intuitive operation and data visualization.
- Sensor Management: Supports up to 64 parameters from s::can and third-party sensors.
- Data Handling: Includes data logging, automatic cleaning, sampling and calibration history, sensor diagnostics, user management, and USB data export.
- Connectivity:
- Wired: 1 Gb/s Ethernet
- Wireless: 300 Mb/s Wi-Fi 802.11a/b/g/n
- Optional: Worldwide HSPA+ 3G interface
- Remote control via HTTP; cloud transfer via FTP, SSH, and TML
- SCADA integration via Modbus RTU/TCP, SDI-12, Profibus DP, analog 0/4-20 mA, and relay outputs
- Power & Efficiency: Typical <3 W at 15-minute intervals, max 20 W, sleep mode 60 mW; supports AC and DC power.
- Housing & Expansion: Industrial PC with IP65 rating; 8 slots for customizable I/O expansion.
