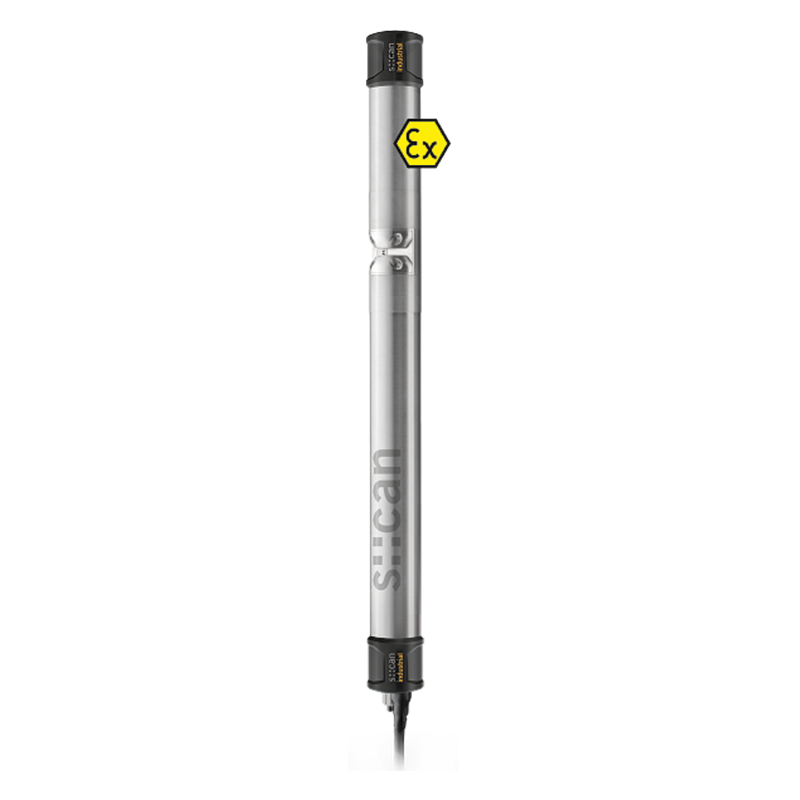

spectro::lyser industrial ATEX
spectro::lyser® industrial monitors depending on the application an individual selection of TSS, turbidity, NO3-N, COD, BOD, TOC, DOC, UV254, NO2-N, color, O3, HS-, BTX, fingerprints, and spectral alarms, temperature, and pressure
- s::can plug & measure
- Measuring principle: UV-Vis spectrometry over the total range (190-720 nm)
- Ideal for industrial wastewater and sewer applications
- Explosion proof specification according to RL 2014/34/EU, TÜV-A 12ATEX0001 X; II 2 G Ex db IIC T6 Gb; QAN: TÜV-A 22ATEX3001Q
- Factory precalibrated, with advanced calibration service included
- Long term stable and maintenance-free in operation
- Automatic cleaning with compressed air or brush
- Mounting and measurement directly in the media (InSitu) or in a flow cell (monitoring station)
- Adaption of optical path lengths to 35 mm, 15 mm, 5 mm, 2 mm, 1 mm, or 0.5 mm possible
- Easy mounting without clogging
- ATEX Certified: Explosion-proof (II 2 G Ex db IIC T6 Gb), TÜV approved for hazardous areas.
- UV-Vis Spectrometry: Full 190–720 nm range for detailed analytics.
- Wide Parameters: COD, TOC, BOD, TSS, turbidity, NO₃-N, color, H₂S, BTX, and more with spectral alarms.
- IoT Enabled: Built-in web server and WLAN; no external software needed.
- Low Maintenance: Automatic air/brush cleaning; long-term, factory-precalibrated stability.
- Flexible Installation: In-situ or flow-cell mounting.
- Adjustable Optics: Path lengths from ~0.5 mm to 35 mm for varying media.
- Industrial-Grade: Designed for harsh wastewater, sewer, and process environments.
- Industrial Effluent Monitoring: Tracks pollutants in industrial discharge (e.g., COD in dairy plants) to reduce product loss, ensure compliance, and avoid fines.
- Process Monitoring & Control: Supports quality, safety, and optimization in industries like refineries and chemical plants with continuous water-quality data.
- Wastewater Treatment: Monitors key parameters in municipal and industrial plants for effective treatment performance.
- Sewer/Collection Systems: ATEX-certified for safe use in explosive sewer environments with gases like CH₄ and H₂S.
- Technology: Full-range UV-Vis spectrometry (190–720 nm)
- ATEX Rating: II 2 G Ex db IIC T6 Gb for explosive environments
- Housing: Titanium Grade 2 or Stainless Steel 1.4404 for harsh conditions
- Parameters: Customizable—BOD, COD, TOC/DOC, TSS, turbidity, UV254, color, NO₃-N/NO₂-N, O₃, H₂S, BTX, fingerprints, temperature, pressure
- Installation: In-situ submersion or flow-cell mounting
- Maintenance: Automatic air/brush cleaning for long-term stability
- Connectivity: WLAN with built-in web server; no external software required
- Optics: Multiple path lengths (0.5–35 mm)
- Operation: Factory pre-calibrated, reliable, long-term stable
