- Drinking Water: Ensures safety and compliance by detecting contamination, monitoring key parameters, and supporting treatment optimization.
- Wastewater & Industrial Effluent: Tracks complex wastewater flows, monitors chemical and physical contaminants, and ensures regulatory compliance.
- Industrial Processes: Provides real-time water quality data for process control, safety, and efficiency in manufacturing operations.
- Environmental Protection: Continuously monitors surface and groundwater to safeguard ecosystems and detect pollution early.
- Early Warning: Detects abnormal conditions or contamination events to prevent public health risks.

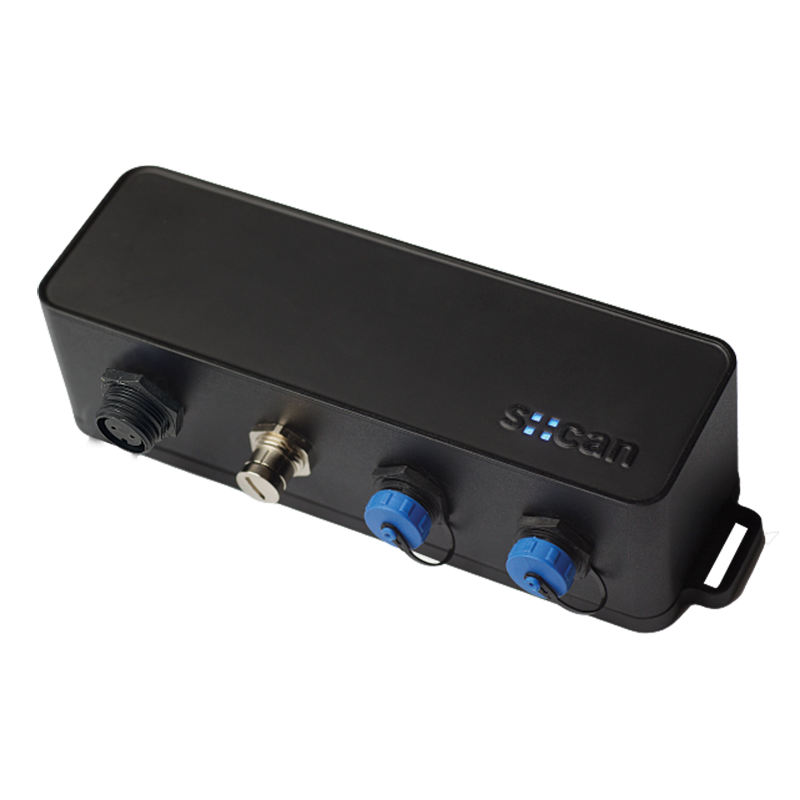

con::line
- s::can’s new low-power terminal for battery-powered remote monitoring
- 4G data communication to any cloud system through secure SFTP or SCP connections
- Direct connection to s::can sensors and pipe::scan
- On-board storage of measurement data for up to one year
- Local access to the terminal via WLAN interface with Io::Tool
- MODBUS TCP or MODBUS RTU uplink to SCADA systems
- Includes external antenna (D-330-ANTENNA-PRO) and power cable (C-500-POWER-030
- Sensor Integration: Seamlessly connects with multiple water quality sensors (pH, turbidity, chlorine, etc.) and flow meters.
- IoT Enabled: Allows remote monitoring and access via mobile devices or SCADA systems.
- Low Power Operation: Optimized for battery-powered operation in remote locations.
- Modular & Versatile: Supports up to 8 M-Node sensors for customized monitoring setups.
- Data & Control: Features an onboard web server, data logging, and control functions for proactive water management.
- Early Detection: Provides alerts for leaks, contamination, or abnormal conditions before they escalate.
- Compact Design: Small footprint enables flexible installation in tight spaces.
Technical Specification
- Storage capacity: 8 GB
- Power consumption: ~ 1.5 W without sensors
- Housing material: Polyurethane
- Dimension (BxHxT): 93 x 60 x 226 mm
- Weight: 500 g
- Protection class: IP67
- Certificates: RED, FCC, ISED, PTCRB, UK CA, MIC
Part Number
- D-500-012
