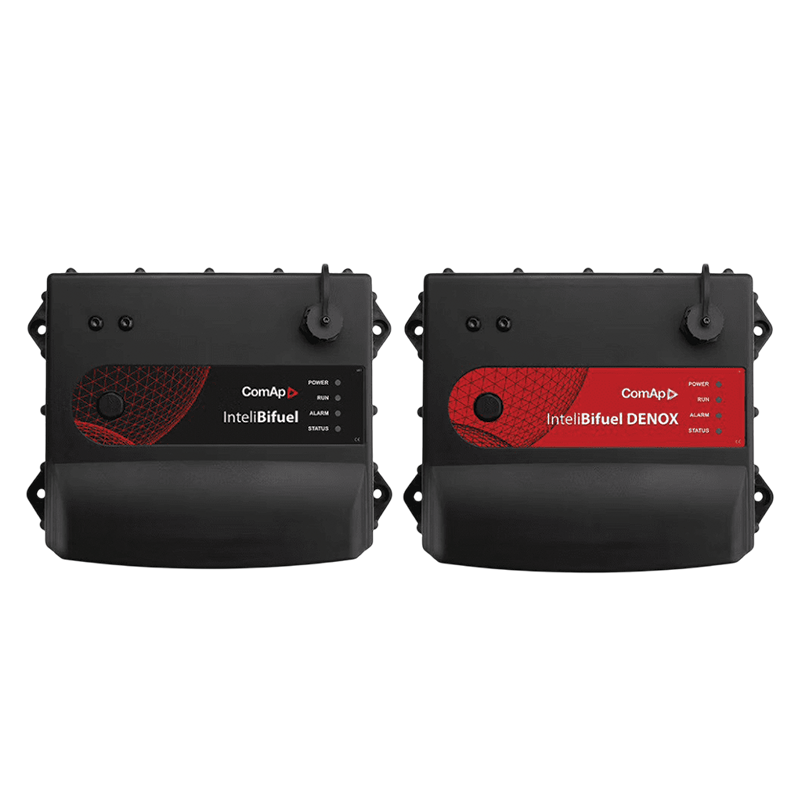

InteliBifuel Set
InteliBifuel is a complete bi-fuel technology solution specialized for oil and gas, mining, and rental applications. Providing control for the entire bi-fuel system, this solution will enable seamless diesel-gas operations, and optimize your fuel consumption and costs. This specific solution is intended for engines with an output power range from 500kW to 2.5MW.
Providing smart control for your bi-fuel operations and variable speed applications, InteliBifuel Mobile protects your engine and supports safe long-term engine operations in dual fuel mode. This controller enables short time-to-market thanks to numerous predefined functions but still gives you the possibility to design your own functions at no extra cost.
The InteliBifuel Mobile offers:
- Smart engine system control and monitoring based on various factors such as gas quality and temperature
- Algorithm ensuring automatic compensation for gas quality changes
- Remote monitoring using plug-in modules
- Safe engine operations when used in combination with the InteliBifuel Denox controller, ensuring the engine avoids knocking
- Ability to control a single-point injection for both high-pressure and low-pressure gas
- Significant diesel savings and diesel fuel substitution leading to more environmentally sustainable operations
- Robust design that meets the IP-69 certification requirements and can withstand operations in extreme environments
- Broad range of predefined adjustable functions for variable speed applications, such as configurable 3D maps
- Large built-in PLC interpreter to suit your individual needs and design-demanding applications
- AirGate to connect to your equipment remotely, without worrying about your asset’s IP address
- Plug & play support and communication with ComAp’s Intellivision 5 display
- Easy communication with the engine management system via CAN using J1939 or another communication protocol
- Option to use ComAp’s freely available PC tools for configuration and monitoring
- Built-in event & performance log for easy troubleshooting and warranty claim handling
Key Features
- Control for high-pressure and low-pressure gas systems
- Automatic compensation for gas quality changes
- Robust design
- Fully configurable 3D maps
- Remote monitoring
- Extended PLC logic
- Event-based history
- Oil & Gas: For offshore platforms, land rigs, and gas compression, utilizing low-pressure fumigation or high-pressure injection for efficiency.
- Mining: Converting heavy mobile machinery (haul trucks, frack trucks) for big diesel savings, using variable speed control algorithms.
- Power Generation: Stationary gensets for standby, prime power, or rental fleets (e.g., resorts, construction sites).
- Industrial & Transportation: Locomotives, marine propulsion, and other heavy-duty mobile applications.
- Application: For single-speed diesel engines converted to bi-fuel (diesel + gas/hydrogen).
- Engine Power Range: Typically 500 kW to 2.5 MW (standard “Set” version).
- Gas Introduction: Supports high-pressure and low-pressure gas systems, including single-point and multi-point injection.
- Core Functions:
- Automatic gas quality compensation
- Engine protection with Denox anti-knock module
- EMS communication via CAN (J1939)
- Inputs/Outputs:
- 10 analog inputs
- 6 analog outputs
- 18 binary outputs (standard unit)
- Communication:
- CAN bus up to 250 kBd
- RS232, Modbus
- Remote monitoring via plug-in modules (GSM/GPRS, GPS, AirGate)
- Operating Temperature: Suitable for harsh environments, –40°C to +80°C.
- Design & Certifications:
- Rugged construction meeting IP-69 protection
- CE, ABS, UL, CSA certified
