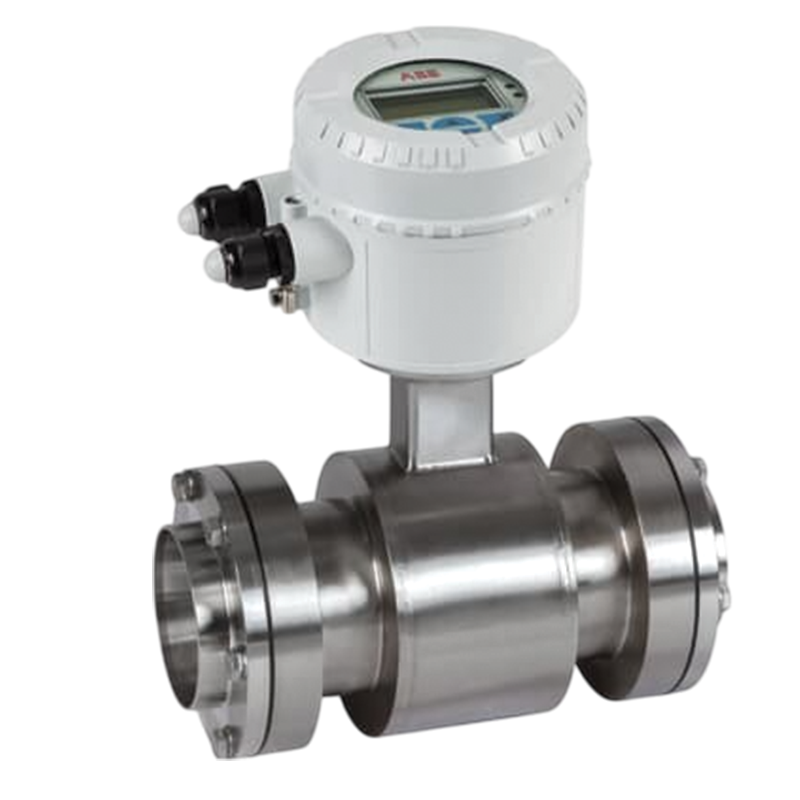

Electromagnetic Flowmeter HygienicMaster FEH610
- HygienicMaster FEH610 is designed specifically for the food & beverage industries in a cost-effective, robust package.
- The sensor is fully CIP/SIP cleanable, manufactured from FDA-approved materials, and certified with 3A.
- Available as an integral or remote mount design – with or without local LCD display. All versions use a common transmitter with easy-to-understand diagnostic messages for improved operator efficiency.
- HygienicMaster FEH610´s variable process connections simplify installation and reduce inventory and replacement costs.
- HygienicMaster FEH610 is ideally suited for hygienic standard applications.
Overview
HygienicMaster FEH610 is ideally suited for hygienic standard applications featuring all functions required – no more and no less.
The perfect device for everyday applications.
Simple and economical.
- Field-proven powerful and flexible transmitter technology
– ABB common HMI concept
– Easy Set-up function for simple and intuitive configuration
– Through-the-glass operation - One single transmitter for all design types
– Integral mount design or remote mount design
– With or without a local LCD display
– Universal wide-range power supply
– 1 analog output, 2 digital outputs - Robust construction for rough environmental conditions
– Hermetically sealed flow sensor
– Protection of the inside components against
Condensation, vibration, and corrosion
Damages during transport and mounting
- Food and Beverage: It is ideally suited for standard hygienic applications in this industry, providing reliable flow measurement.
- Hygienic Cleaning: The sensor is fully CIP/SIP (Clean-in-Place/Sterilize-in-Place) cleanable and manufactured from FDA-approved materials, ensuring compliance with hygiene standards.
- Simple and Economical: It offers a cost-effective solution for applications that do not require the advanced diagnostics of the more specialized HygienicMaster FEH500 or FEH300 models.
- Robust and Reliable: Built with a hermetically sealed sensor, it is protected against condensation, vibration, and corrosion, making it suitable for rough environmental conditions.
- Versatile Process Connections: The wide variety of process connections simplifies installation and reduces inventory and replacement costs.
- Easy Operation: It features a common ABB transmitter with a user-friendly HMI for easy configuration and through-the-glass operation, according to
General specifications:
- Measuring value error
– 0.5 % of the rate - Nominal diameter
– DN 1 to 100 (1/25 to 4 in.) - Process connection
– Weld stubs, threaded pipe connections, Tri-clamps, wafer-type, flanges, external threads, flanges in accordance with DIN/EN, ASME, JIS - Nominal pressure
– PN 10 to 40, ASME CL 150, 300 - Lining
– PFA vacuum stable - Protection class
– IP 67 or IP 68 - Fluid temperature
– Up to 130 °C (266 °F) - Certificates
– 3A, FDA approved materials
