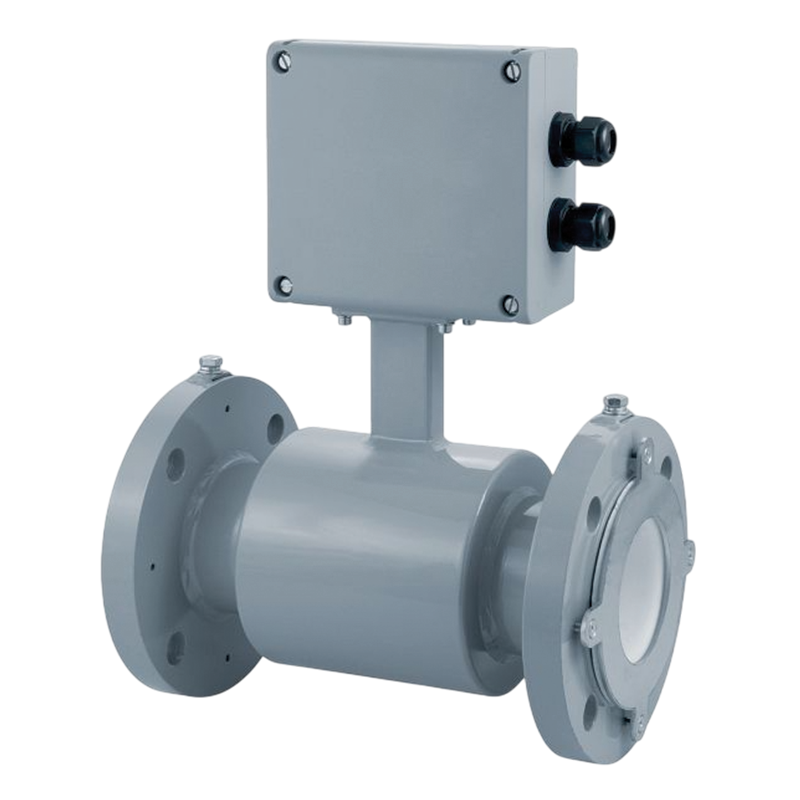

M7600 Electromagnetic Flowmeter
The Badger Meter® M7600 flow meter combines the most advanced electromagnetic flow metering technology with a simple, yet robust, output for batching systems found in industrial applications.
Based on Faraday’s Law of electromagnetic induction, M7600 meters can accurately measure and control most batching needs in the industrial market. Its completely open cross-section flow tube design with no moving parts makes it the ideal metering device for batching a wide range of industrial conductive fluids.
While other metering technologies are hindered by the presence of suspended solids in the process fluid, the M7600 will continue to measure flow, provided the conductivity remains higher than 5 micromhos/cm. Having a non-obstructive flow-through pipe design allows particulates to pass through the meter body. The signal voltage, measured by the electrodes, passes through the entire cross-sectional profile for improved accuracy.
The M7600 meter features an intuitive PC interface used for selecting the scale factor, a unit of measure, and pules per unit, making these meters the most straightforward metering system available in the Industry.
- Sizes: 1/2…4 in.
- Standard accuracy ±0.5% of rate
- ±0.1% repeatability
- Open cross-section design: no pressure loss, no moving parts, no maintenance required
- Unaffected by the presence of most suspended solids in the liquid
- Pulsed DC magnetic field for maximum zero point stability
- Two standard pulse outputs: solid-state relay and open collector output, compatible with most batch controllers and totalizer displays
- Programmable scale factor
- Long-life, corrosion-resistant liner (PTFE)
- NEMA 4 standard enclosure
- Industrial Batching
The M7600 is engineered to meet the rigorous requirements of industrial batching operations, delivering reliable and repeatable flow measurement. - Concrete Batching
Widely recognized as a top choice for concrete batching plants—including ready-mix, precast, and block plants—thanks to its durability and stable performance. - Fluids with Suspended Solids
Its open-tube design prevents clogging, allowing accurate measurement of fluids containing suspended solids, provided conductivity is above 5 micromhos/cm. - Various Industrial Fluids
Capable of measuring a broad range of conductive liquids—from water to highly viscous fluids—with minimal maintenance requirements.
| Parameter | Details |
|---|---|
| Sizes | 1/2 to 4 inches (15 to 100 mm) |
| Standard Accuracy | ±0.5% of rate |
| Repeatability | ±0.1% |
| Temperature Range | Up to 100 °C (212 °F) |
| Flow Range | 0.53 to 5000 lpm or 0.14 to 1320 gpm |
| Power Supply | 92 to 275 VAC |
| Liner Material | Long-life, corrosion-resistant PTFE |
| Enclosure | NEMA 4 standard |
| Outputs | Two standard pulse outputs: solid-state relay and open collector |
