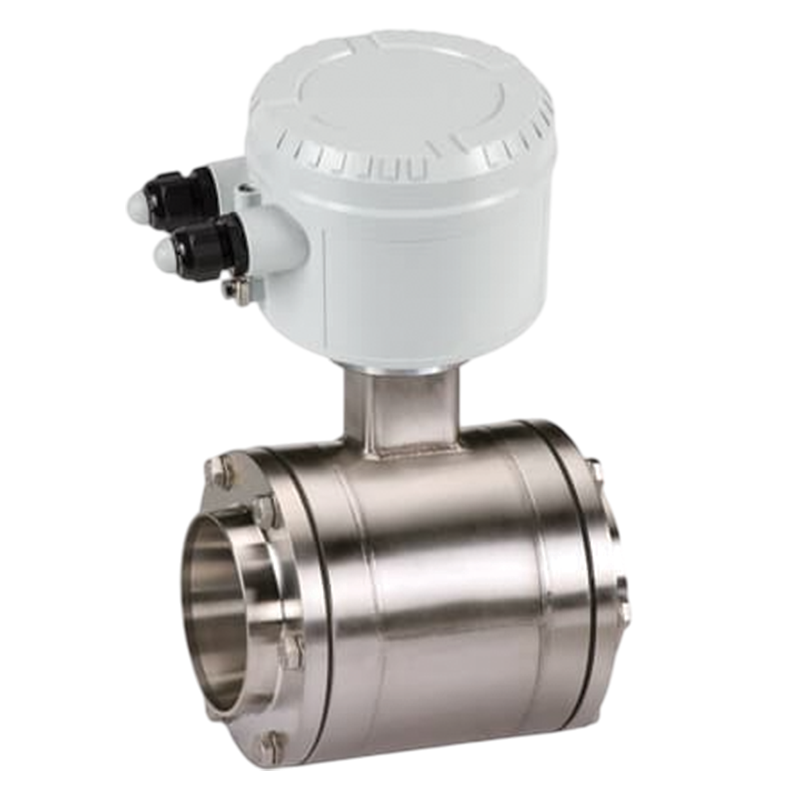

Electromagnetic Flowmeter HygienicMaster FEH630

HygienicMaster FEH630 – The first choice for all hygienic applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

• Real-time diagnostic keep your process up and running
  – Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
  – Clear text messages simplify troubleshooting
• In-built noise/grounding check
  – Verify the installation is correct from day one
  – Checks for proper grounding which is fundamental to an accurate flow measurement
• In-built verification for highest confidence in your flow measurement
  – Checking for sensor and transmitter Integrity
  – No need to remove the flowmeter from the process
• Simplicity of operation
  – Automatic self-configuration sequence
  – Incredibly easy to work with
• Ethernet IP communication
  – For remote access to built-in diagnostic monitoring the flowmeter and your process
  – Flowmeter verification and configuration over Ethernet minimizing commissioning time
  – Built-in webserver, no additional software required for flowmeter configuration

General specifications:

• Measuring value error
  – 0.4 % of rate, Option for 0.3% or 0,2%
• Nominal diameter
  – DN 1 to 100 (1/25 to 4 in.)
• Process connection
  – Weld stubs, threaded pipe connections, Tri-clamps, wafer-type, flanges, external threads, flanges in accordance with DIN/EN, ASME, JIS
• Nominal pressure
  – PN 10 to 40, ASME CL 150, 300
• Lining
  – PFA vacuum stable
• IP rating
  – IP67 or IP68
• Fluid temperature
  – Up to 180 °C (356 °F)
• Communication
  – HART
  – PROFIBUS DP, Profibus PA
  – Modbus RTU, Modbus TCP
  – Ethernet IP, Profinet
• Webserver
• Process diagnostics
  – Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
• Certificates
  – 3A, FDA approved material
