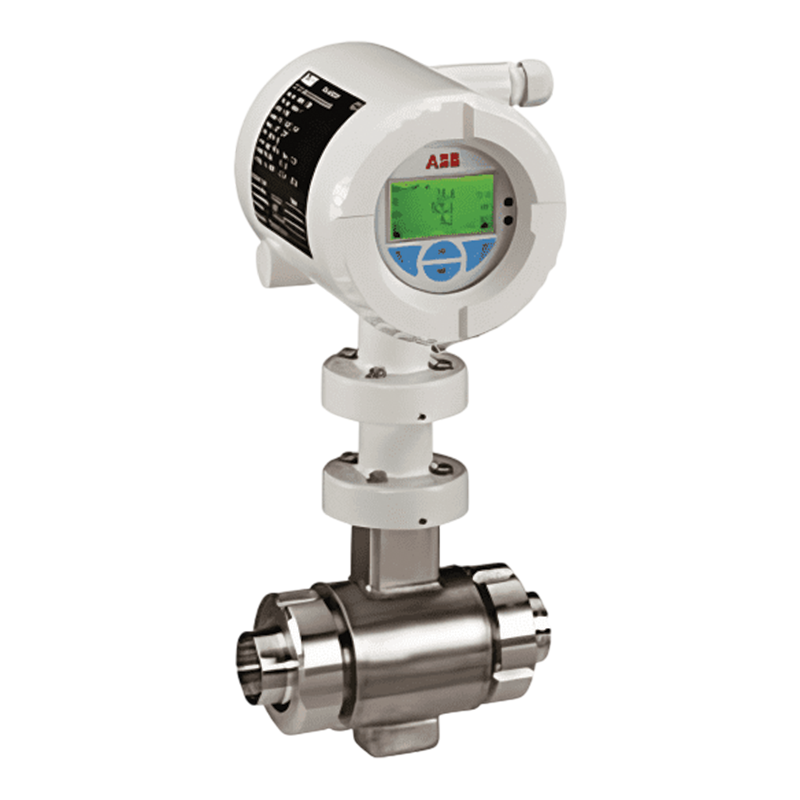

Electromagnetic Flowmeter HygienicMaster FEH300
The HygienicMaster FEH300 standard version is designed specifically for the food & beverage, pharmaceutical, and biotechnical industries. Manufactured from FDA-approved materials and certified in accordance with 3-A.
Available as an integral mount design or remote mount design system.
Overview
The stainless steel exterior, the variable process connection, the advanced signal processing, and the state-of-the-art data storage provide a complete and cost-effective flow solution.
HygienicMaster FEH300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery, and simple and clearly understandable documentation.
- Intuitive and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key-based functionality
– “Easy Set-up” function - State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration - Diagnostics for real-life-situations
– Status messages in accordance with NAMUR
– Help texts in LCD display - ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant
- Food and Beverage: Used for measuring liquids like milk, juice, and beer, as well as slurries and pastes in production processes.
- Pharmaceutical and Biotechnology: Suitable for applications where high purity and sanitary standards are critical, such as in the production of medicines and biotechnological products.
- Wastewater: Can be used for monitoring and measuring wastewater flows in the hygienic plants of these industries.
General Specifications:
- Measuring value error
– Standard 0.4 % of rate, optional 0.2 % of rate - Nominal diameter
– DN 3 to 100 (1/10 to 4 in.) - Process connection
– Wafer type design
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS
– Threaded pipe connection in accordance with DIN 11851
– Weld stubs
– Tri-Clamp in accordance with DIN 32676, ASME BPE
– External thread in accordance with ISO 228 / DIN 2999 - Lining
– PFA (vacuum tight) - Process connection material
– Flange: stainless steel
– Variable process connections: 1.4404 - Communication
– HART, PROFIBUS PA, FOUNDATION Fieldbus - Explosion protection approvals
– ATEX, IECEx, FM, cFM, NEPSI, GOST - Certificates
– 3-A, FDA-approved material
Special Features:
- Process diagnosis
– Empty pipe detection
