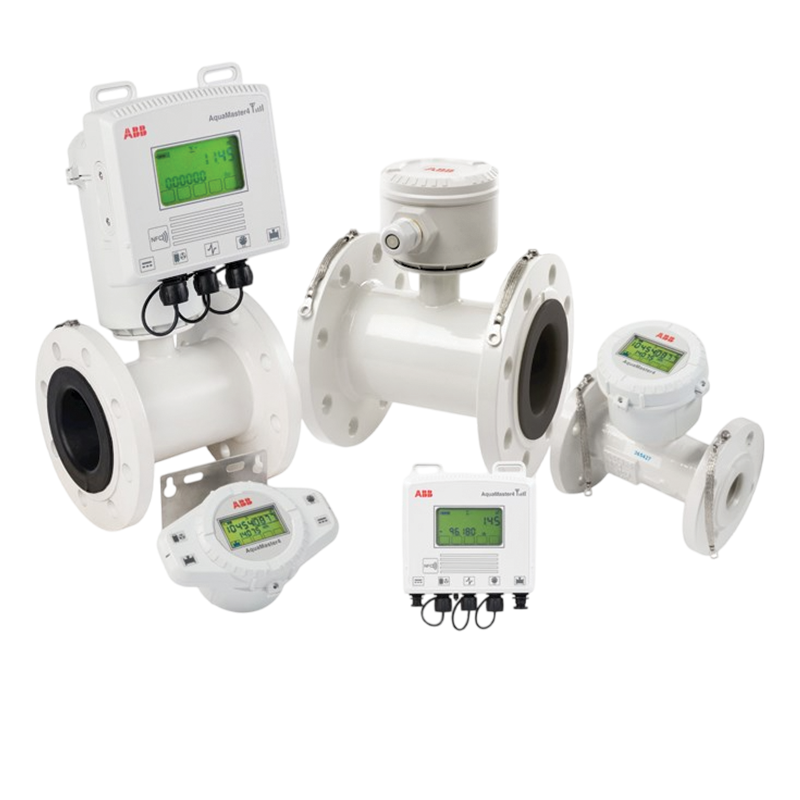

Electromagnetic Flowmeter AquaMaster FEW400
- The solution from the masters of flow measurement – in 1988, ABB invented and designed the world’s first battery-powered electromagnetic flowmeter for DMA (District Metered Area)
- Invest smartly through a ‘single box’ DMA solution – combining flow, pressure, and data-logging
- Have the greatest confidence in your billing based on the highest accuracy with the widest flow range revenue meter
- Get early warnings for leaks or bursts and reduce NRW (Non-Revenue Water) – highest confidence in night line performance
- Have the highest confidence in the wet calibration – our flow rigs are certified by various national independent accredited bodies/laboratories all linked by the ‘International Laboratory Accreditation Cooperation (ILAC)
- Fit and flow with factory default settings. To customize minimal on-site configuration required with quick and easy configuration through ABB Velox mobile smartphone/tablet app
- The lowest total cost of ownership (TOTEX) over the complete product lifecycleAquaMaster conforms to the latest international standards to meet increasing legislative demands for accurate flow metering. Its wide measuring range ensures peak daytime flows are accurately recorded and its exceptional low flow performance aids network leak detection.
- Fit and flow for foolproof installation, all data is stored in the sensor to reduce on-site setup. AquaMaster’s unique sensor design conditions the flow profile resulting in excellent meter performance in poor hydraulic installation conditions.
- Measurement capabilities:
- Measures flow rate, velocity, and volume (forward, reverse, and net).
- Optional pressure measurement.
- Supports high and low flow rate alarms.
- Power options:
- Long-life internal battery with up to 10 years of life.
- Renewable power options like solar or wind.
- AC mains power supply.
- Communication and data:
- Pulse, Modbus, and Sensus protocols.
- Wireless interface for smartphones/tablets via the ABB Velox mobile app for configuration, diagnostics, and data retrieval.
- Real-time data collection.
- Durability and certifications:
- IP68 rating for submersion and up to 5 meters of burial.
- Suitable for arduous applications in water distribution networks.
- WRAS, NSF, ACS, and AS/NZS 4020 drinking water certifications.
- Metrological approvals (OIML R49 and MID MI-001 pending).
- Verification and diagnostics:
- In-situ diagnostics and self-checking capabilities for in-field verification.
- Backward compatible with legacy AquaMaster sensors.
- DMA monitoring: A single-box solution combining flow, pressure, and data logging for complete network monitoring.
- Leak detection: High accuracy and low-flow sensitivity enable early leak identification and reduced NRW.
- Revenue metering: Ensures precise measurement across a wide flow range for reliable billing.
- Network analysis: Captures and stores real-time flow and pressure data for detailed condition assessment.
- Remote installations: Suitable for hard-to-reach sites, powered by long-life batteries (up to 10 years) or solar/wind options.
- Submersible use: Sensor can be buried or submerged, with the transmitter mounted at ground level for easy access.
- Measurement parameters: flow rate, flow velocity, volume flow (forward, reserve and net) and pressure (option)
- Wide range of sensor styles and size: reduced bore DN40 to 600, full bore DN40 to 2400 and probe 300 to 1000 mm. Range up to R1000 and accuracy up to ±0.2% ±0.5mm/sec whichever is greater.
- Power options: 10 years battery life, solar / wind renewable and AC mains
- Communication options: Cellular (4G / NB-IoT) with FTPS/MQTTS, Pulse, Modbus and Sensus with wireless interface to mobile
- High and low flowrate alarms
- Bi- Directional communication over cellular network for remote configuration & OTA securely over mTLS 1.2 based encryption throught FTPS or MQTTS + Sparkplug B.
- Access High resolution data remotely allowing for investigation.
- Applicable for arduous applications: IP68 for submersion and up to 5m buriable
- Verification: In situ diagnostics and self-checking capabilities
- Backward compatible with legacy AquaMaster sensors
- Drinking water approvals: WRAS, NSF, ACS, AS/NZS 4020
- Metrological approvals for custody transfer: OIML R49 and MID MI-001
