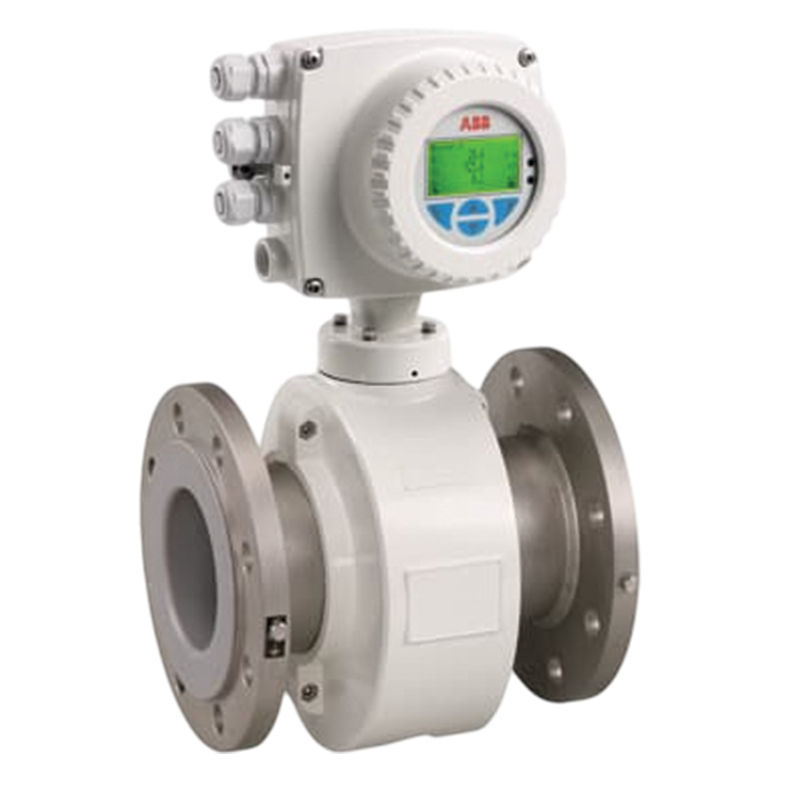

Electromagnetic Flowmeter ProcessMaster FEP300
The powerful transmitter is easy to use and provides the output signal that meets the needs.
ProcessMaster FEP300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery, and simple and clearly understandable documentation.
Versatile and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key-based functionality
– “Easy Set-up” function
State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration
Diagnostics for real-life-situations
– Simplified plant troubleshooting
– Status messages in accordance with NAMUR
– Help texts in LCD display
ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant
- Water network management: Monitors flow in distribution systems for leak detection and performance analysis.
- Existing pipelines: Cost-effective retrofit option without major excavation or pipe replacement.
- Flow profiling: Installable at centerline or key points; supports traversing for accurate volume measurement in non-ideal flow conditions.
- Permanent installations: Ideal where cost or space constraints make traditional meters impractical.
- Temporary or survey use: Hot-tap installation allows quick, temporary placement for short-term data collection.
General Specifications:
- Measuring value error
– Standard 0.4 % of rate, optional 0.2 % of rate - Nominal diameter
– DN 3 to 2000 (1/10 to 80 in.) - Process connection
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129 - Nominal pressure
– PN 10 to 100,
– ASME CL 150, 300, 600, 900, 1500, 2500 - Lining
– Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex - Communication
– HART, PROFIBUS PA, FOUNDATION Fieldbus - Explosion protection approvals
– ATEX, IECEx, FM, cFM, NEPSI, GOST
Special Features:
- Process Diagnosis
– Empty pipe and partially filling detection
