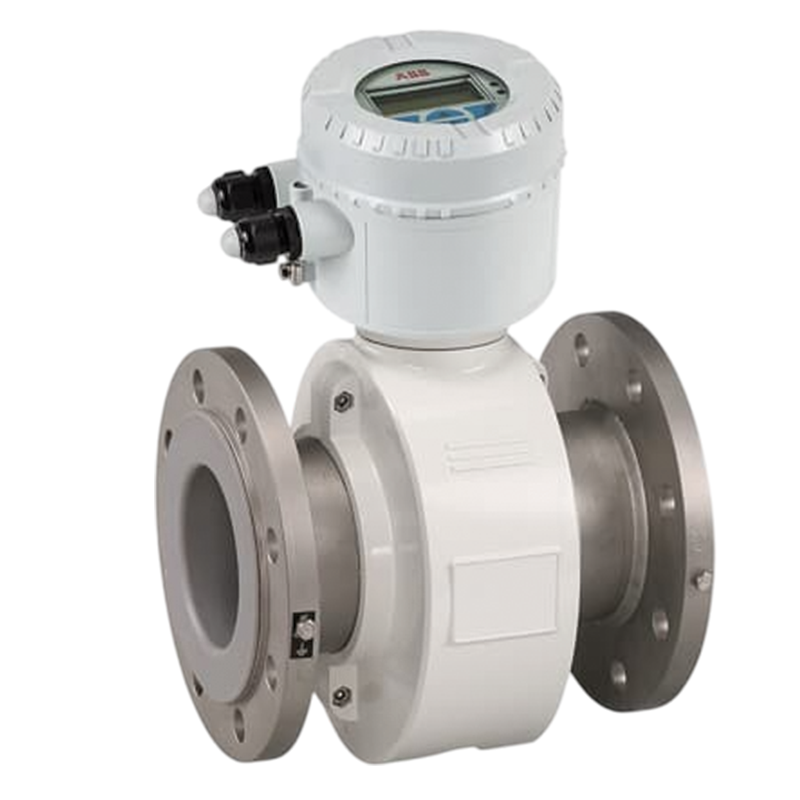

Electromagnetic Flowmeter ProcessMaster FEP610

  • ProcessMaster FEP610 offers robust, cost-effective flow measurement with the industry´s widest range of liners, electrodes, and sizes to meet the needs of all industrial standard applications.
  • The ProcessMaster´s concept comprises of uniform operating concept with a high degree of performance and reliability, assuring the longest service life.
  • Available as an integral or remote mount design – with or without local LCD display. All versions use a common transmitter with easy-to-understand diagnostic messages for improved operator efficiency.
  • ProcessMaster FEP610 is ideally suited for all industrial standard applications.

ProcessMaster FEP610 is ideally suited for industrial standard applications featuring all functions required – no more and no less.
The perfect device for everyday applications.
Simple and economical.

Field-proven powerful and flexible transmitter technology
– ABB common HMI concept
– Easy Set-up function for simple and intuitive configuration
– Through-the-glass operation
One single transmitter for all design types
– Integral mount design or remote mount design
– With or without local LCD display
– Universal wide range power supply
– 1 analog output, 2 digital outputs
Robust construction for rough environmental conditions
– Hermetically sealed flow sensor
– Protection of the inside components against
Condensation, vibration and corrosion
Damages during transport and mounting

General specifications:

  • Measuring value error
    – 0.5 % of the rate
  • Nominal diameter
    – DN 3 to 2000 (1/10 to 80 in.)
  • Process connection
    – Flange in accordance with DIN, ASME, JIS
  • Nominal pressure
    – PN 10 to 40, ASME CL 150, 300, JIS 10K
  • Lining
    – Hard rubber, soft rubber, PTFE, PFA, ETFE
