- Industrial processes: Monitor and control flow for quality, safety, and process optimization.
- Wastewater treatment: Enable advanced flow measurement, water quality monitoring, and toxic gas detection.
- HVAC systems: Improve energy efficiency and protect equipment in closed-loop systems.
- Property operations: Manage water use across buildings, commercial sites, and irrigation systems.

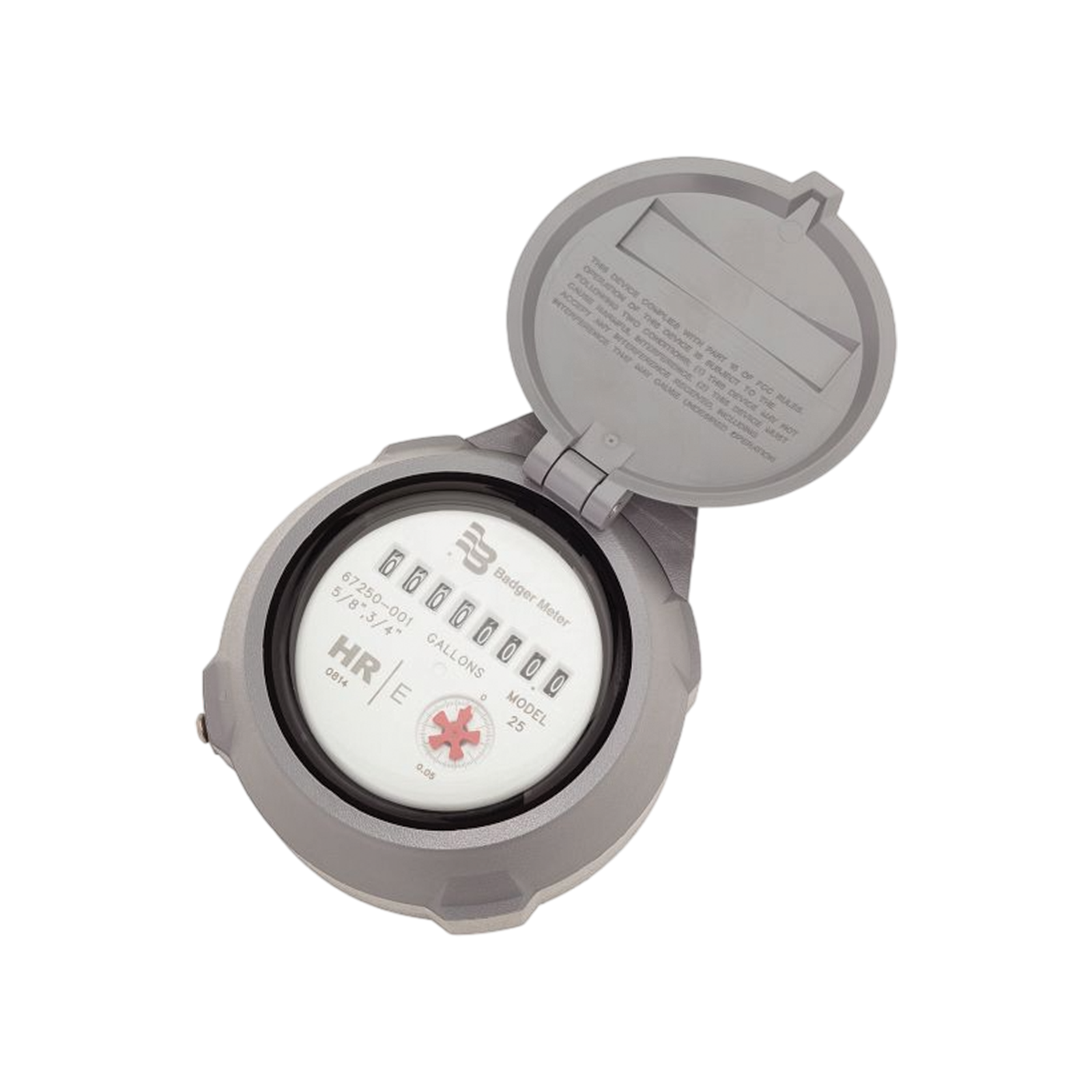

HR-E®
The High Resolution Encoder (HR-E) features a straight reading, permanently sealed, magnetic drive, and communicates using the industry standard ASCII communication protocol to provide a high resolution encoded output.
The 8-dial High Resolution Encoder (HR-E®) uses non-contact, field-proven, light-emitting diode technology to provide an 8-digit reading, while also eliminating the friction and wear of traditional mechanical encoders.
- Endpoint Compatibility. Compatible with Badger Meter ORION® family of endpoints and other approved technologies.
- Durable Design. Built with a unique adhesive sealing technology to withstand harsh environments, including flooded pits.
- Simple Installation. Available in a terminal screw version for easy installation, with no programming or setting adjustments required.
- Temperature range: –40 to 140°F (–40 to 60°C)
- Units of measure: U.S. gallons, cubic feet, cubic meters (factory or field-programmable)
- Electronic resolution: 9-digit resolution for AMR/AMI
- Signal type: 3-wire synchronous for AMR/AMI systems
- Battery life: 20 years
- Tamper resistance: Register removal and magnetic tamper indicators
- Status indicators: Electronic and visual icons for alarms and meter status (AMR/AMI-compatible)
- Connectivity: Works with Badger Meter endpoints (ORION family)
- Programming: Field-programmable via IR port and software (units, resolution, and more)
