Automatic Weather Monitoring Stations (AWS) are advanced systems that automatically observe and report weather conditions. These stations are equipped with a range of sensors and data loggers that continuously collect meteorological data such as temperature, humidity, wind speed and direction, rainfall, solar radiation, and atmospheric pressure. They function without any human intervention and transmit real-time weather data to central servers using internet, GSM, or satellite communication.
In India, AWS technology is being rapidly adopted by agencies like the Indian Meteorological Department (IMD), state governments, and agricultural organizations. As of 2024, over 1,000 AWS and more than 5,000 Automatic Rain Gauge (ARG) stations are operational across the country, significantly improving forecasting, disaster preparedness, and agriculture planning.
What is an Automatic Weather Monitoring Station?
An Automatic Weather Monitoring Station is a self-contained, remote system designed to measure and record weather parameters automatically. Once installed, these stations function round the clock, collecting data and transmitting it without the need for manual operation. This automation makes them highly effective in areas where human access is limited or where continuous data collection is required.
Key Features:
-
- Autonomous and low maintenance
-
- Powered by solar energy
-
- Equipped with high-accuracy sensors
-
- Real-time data transmission
-
- Customizable for location-specific needs
Key Instruments Used in AWS
Each AWS includes various sensors and components to measure a broad spectrum of weather parameters. Here’s what they typically include:
-
- Temperature Sensor: Records the air temperature
-
- Humidity Sensor: Measures moisture content in the air
-
- Anemometer (Wind Speed Sensor): Detects the speed of the wind
-
- Wind Vane (Wind Direction Sensor): Identifies the direction from which the wind is blowing
-
- Rain Gauge: Measures the amount and rate of rainfall
-
- Solar Radiation Sensor: Detects sunlight intensity
-
- Pressure Sensor: Monitors atmospheric pressure
-
- Data Logger: Stores collected data temporarily
-
- Antenna/Transmitter: Sends data to servers via GSM/internet
-
- Solar Panel: Powers the entire system
These components work together to deliver accurate, uninterrupted, and location-specific weather data.
How AWS Works: Step-by-Step Process
-
- Sensing: Meteorological sensors capture data at regular intervals.
-
- Logging: A data logger collects and stores these measurements.
-
- Transmission: Data is transmitted to a central server using internet or satellite.
-
- Access: Weather data is accessed by scientists, government departments, farmers, and apps.
Example setup:
[Solar Panel]
|
[Data Logger] -- [Sensors: Temp, Wind, Rain, Humidity, etc.]
|
[Antenna] --> Sends data to central server/cloudAWS Usage in India: Applications Across Sectors
Weather Fore Casting
-
- Improves short-term and long-term weather predictions
-
- Enhances accuracy of IMD bulletins
Agriculture
-
- Helps farmers plan irrigation, sowing, harvesting
-
- Reduces crop losses due to unforeseen weather changes
Disaster Management
-
- Early warnings for floods, cyclones, heatwaves, droughts
-
- Aids in evacuation planning and emergency preparedness
Climate and Environmental Research
-
- Data supports research on climate change and pollution
- Used by universities and research institutions
AWS Deployment in India
Where are these stations installed?
-
- Remote villages and farming zones
-
- Coastal and river basin areas
-
- Urban and industrial zones
-
- Forest and hilly terrain
Who operates them?
-
- Indian Meteorological Department (IMD)
-
- State Disaster Management Authorities
-
- Agricultural departments and research centers
-
- Private weather and agri-tech firms
SOMMER’s Rugged, Customizable AWS Solutions
SOMMER’s weather stations are crafted for durability in extreme alpine conditions, offering long-term meteorological data collection without the need for existing infrastructure. Their modular designs make them suitable for both research and infrastructure protection.
Features and Advantages:
-
Tailored sensor configurations based on project needs
-
Seamless integration into existing data networks
-
Solar-powered with GPRS/web-based data access
-
End-to-end support: consulting, installation, and maintenance
-
Designed for harsh alpine conditions
Where Are SOMMER AWS Used?
-
Avalanche zones and snow monitoring regions
-
Mountain passes, railway tunnels, highways
-
Weather services in the Alps and other harsh terrains
Implementation:
- Delivered as a full turnkey solution
- High-quality materials ensure year-round durability
- Optional GSM/GPRS connectivity for data transmission

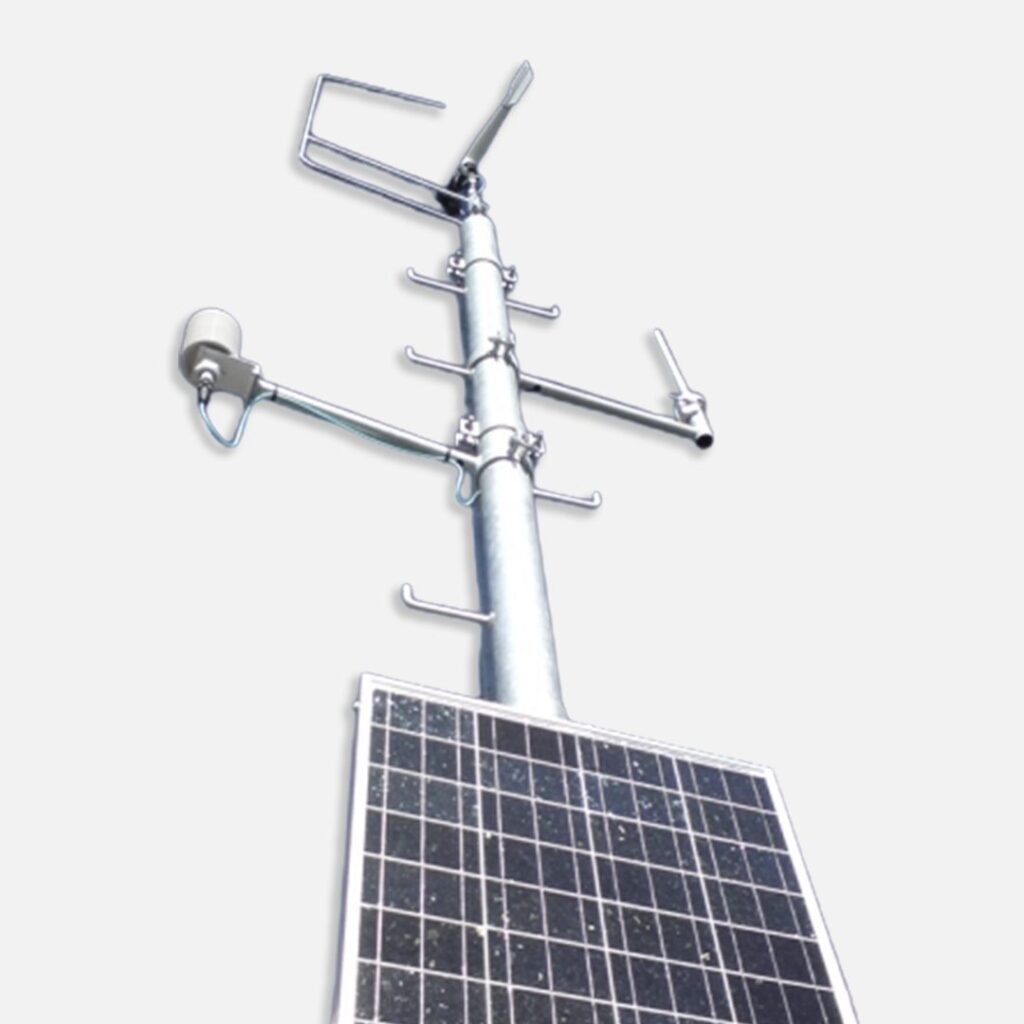

Standard configuration includes:
- Automatic sensors
- Hot-galvanized mast (up to 10m) with climbing protection
- Solar panel
- Switch cabinet with data logger and lightning protection
Installation, Service & Support:
-
- Team of experienced field technicians available
- Includes setup, training, and ongoing maintenance
- Installation supported even in alpine zones, using helicopters if needed
From Small to Professional – Configuring the AWS:
- Reinforced versions for extreme alpine use
- Tailored setup as per site and purpose
- Snow and wind spots, mobile trailer setups, tripod units
- Combo units with water level/discharge measurements
Possible Sensors:
- Air temperature [°C]
- Humidity [% r.h.]
- Wind direction [°]
- Wind speed [m/s] and peak [m/s]
- Air pressure [mbar/hPa]
- Global radiation [W/m²]
- Radiation balance [W/m²]
- Precipitation [mm], Rain yes/no
- Soil temperature [°C], Soil humidity [% r.h.]
- Evaporation [mm/day]
Data Transmission Options:
- GPRS Webserver (recommended)
- Fixed line (analog/ISDN modem)
- GSM and radio transmission
What Makes a Good Automatic Weather Station?
Top-performing AWS systems share these traits:
-
- High accuracy and low error margin
-
- Remote access to real-time data
-
- Long-lasting power systems (solar/battery backup)
-
- Easy installation and rugged design for harsh climates
-
- Compliance with IMD and WMO standards
Real-World Benefits and Impact
Who benefits?
-
- Farmers: Accurate forecasting improves crop yield
-
- Disaster Managers: Enables quicker, data-backed decisions
-
- Meteorologists: Higher accuracy in models and predictions
-
- Citizens: Real-time data available through apps and websites
Why is it important?
-
- Reduces dependency on manual data collection
-
- Increases preparedness and reduces loss during natural disasters
-
- Supports sustainable agriculture and climate resilience
