- Mining: Large haul trucks operate on natural gas, cutting fuel costs and emissions even in extreme climates.
- Fracking: Dual-fuel frack trucks gain higher efficiency in remote field operations.
- Railways: Enables sustainable, cost-efficient dual-fuel locomotive performance.
- Marine: Controls dual-fuel engines for cleaner, more economical vessel propulsion.
OTT RLS – Radar Level Sensor
Building on years of experience with the robust and accurate OTT PLS, the PLS 500 water level monitoring solution adds innovative metadata and internal sensors to remotely verify device performance providing peace of mind for long term deployment

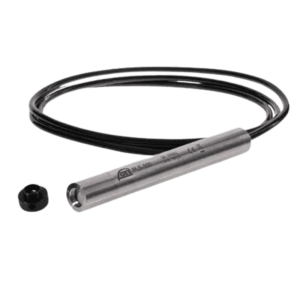

The OTT PLS 500 measures water level, depth to water, or pressure by means of an easy to maintain, ceramic pressure cell. This highly accurate sensor includes design features such as four internal compensations, stainless steel housing, and a rugged cable making it ideal for monitoring water level in a variety of applications. Common communication protocols (SDI-12 and Modbus RTU) allow for seamless integration with external data loggers. The accurate temperature measurements and built-in microcontroller compensate for environmental changes in water density. Built-in QA/QC and metadata along with reduced sensor drift allow you to have full confidence in your long-term data.
Custom Cable
All PLS 500s are manufactured with cables cut to the users specifications upon order. Please specify the length of cable (meters or feet) that you require with any quoted item.
Providing smart control for your bi-fuel operations and variable speed applications, InteliBifuel Mobile protects your engine and supports safe long-term engine operations in dual fuel mode. This controller enables short time-to-market thanks to numerous predefined functions but still gives you the possibility to design your own functions at no extra cost.
The InteliBifuel Mobile offers:
- Smart engine system control and monitoring based on various factors such as gas quality and temperature
- Algorithm ensuring automatic compensation for gas quality changes
- Remote monitoring using plug-in modules
- Safe engine operations when used in combination with the InteliBifuel Denox controller, ensuring the engine avoids knocking
- Ability to control a single-point injection for both high-pressure and low-pressure gas
- Significant diesel savings and diesel fuel substitution leading to more environmentally sustainable operations
- Robust design that meets the IP-69 certification requirements and can withstand operations in extreme environments
- Broad range of predefined adjustable functions for variable speed applications, such as configurable 3D maps
- Large built-in PLC interpreter to suit your individual needs and design-demanding applications
- AirGate to connect to your equipment remotely, without worrying about your asset’s IP address
- Plug & play support and communication with ComAp’s Intellivision 5 display
- Easy communication with the engine management system via CAN using J1939 or another communication protocol
- Option to use ComAp’s freely available PC tools for configuration and monitoring
- Built-in event & performance log for easy troubleshooting and warranty claim handling
Key Features
- Control for high-pressure and low-pressure gas systems
- Automatic compensation for gas quality changes
- Robust design
- Fully configurable 3D maps
- Remote monitoring
- Extended PLC logic
- Event-based history
- Controls and monitors bi-fuel variable-speed engines.
- Supports diesel + natural gas or hydrogen, with capability for tri-fuel systems.
- Manages high-pressure and low-pressure single-point gas injection.
- Ensures engine protection by working with the InteliBifuel Denox controller to prevent knocking.
- Includes an automatic compensation algorithm that adjusts for variations in gas quality.
- Communicates with the engine ECU via CAN bus (J1939).
- Enables remote monitoring through plug-in modules and AirGate, without needing a static IP.
- Compatible with InteliVision 5 and InteliVision 8 displays for engine data visualization.
- Designed for harsh environments with IP69/IP69K protection.
- Offers customization through a large built-in PLC interpreter and configurable 3D maps.
- Typical I/O includes:
- 9 Binary Inputs
- 18 Binary Outputs (0.5A or 4A continuous)
- 13 Analog Inputs (10 non-isolated + 3 isolated; supports Voltage, Resistance, Current, PT1000, Thermocouples)
- Certified to CE, ABS, UL, CSA standards.
