- Delivers precision accuracies with extended flow ranges
- Gate valve integrated into standard lay length of meter—nocut-ins required
- Patented magnetically coupled valve to extend field life (US Patent No. 10,161,777.B2)
- Patented flow restriction valve technology supports open,restricted and partially restricted options (US PatentNo. 8,539,827)
- Does not require infrastructure
- Valve position-indicating LED
Fully submersible—electronics completely encapsulated to withstand harsh, flooded pit environments - Low-pressure loss
- The easy-to-read, 9-digit display presents consumption, rate of flow, reverse flow indication, and alarms
- High-resolution industry standard ASCII encoder protocol
Ultrasonic Plus Meters

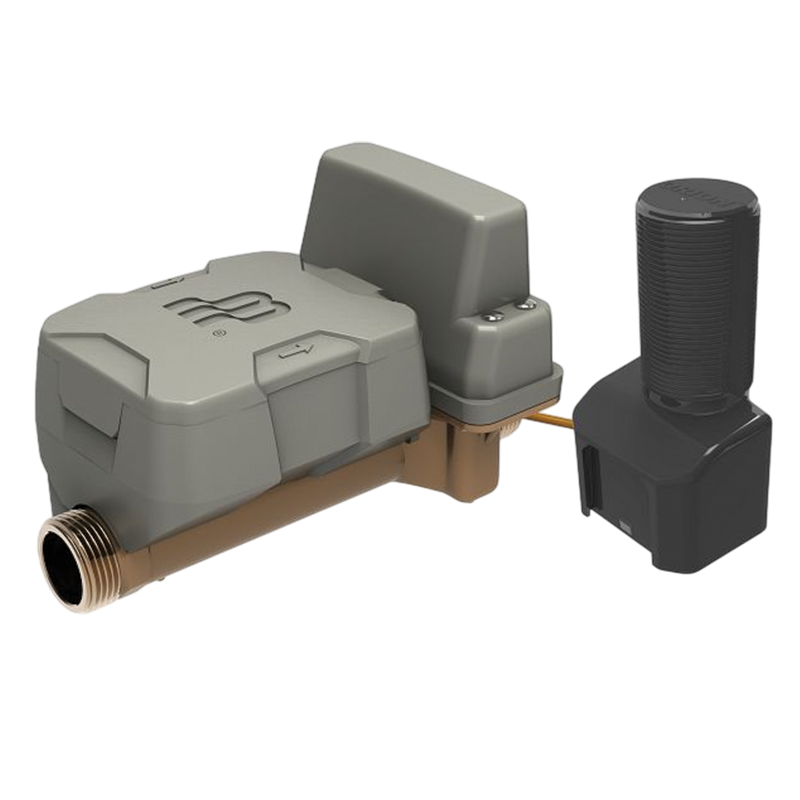

The E-Series® Ultrasonic Plus meter uses solid-state ultrasonic transit time technology to measure cold potable water and incorporates an integrated valve into the lay length of the meter. The integrated valve allows remote flow restriction of water service in residential utility applications.
Authorized utility personnel can actuate the valve via a command sent from BEACON® SaaS (Software as a Service) to an ORION® Cellular endpoint connected to the meter.
BEACON displays the status of the valve (open, partial or restricted) and upon a command to transition the valve, confirms the success of that actuation. The status of the valve is also indicated on the physical meter via a position-indicating LED.
E-Series Ultrasonic Plus meters comply with the lead-free provisions of the Safe Drinking Water Act, are certified to NSF/ANSI/CAN Standards 61 and 372, and carry the NSF 61 marking. All components of the meter comprise the certified system. E-Series Ultrasonic Plus meters comply with the applicable portions of the most recent revision of AWWA Standard C715.
All electronic components utilized in the meter and RF Transceiver design comply with applicable FCC Part 15 standards and AWWA C707 for encoded remote reading systems.
- Commercial & Industrial Use: Ensures high-accuracy flow measurement in applications with fluctuating water demand.
- Remote Flow Control: Utilities can remotely restrict or restore water service when needed.
- Seasonal Properties: Ideal for shutting off water supply in unoccupied or vacation homes.
- Multi-Tenant Buildings: Enables remote water management for individual units.
- Water Conservation: Supports controlled water usage during conservation or shortage periods.
- Non-Payment Management: Allows utilities to remotely limit service for customers with unpaid bills.

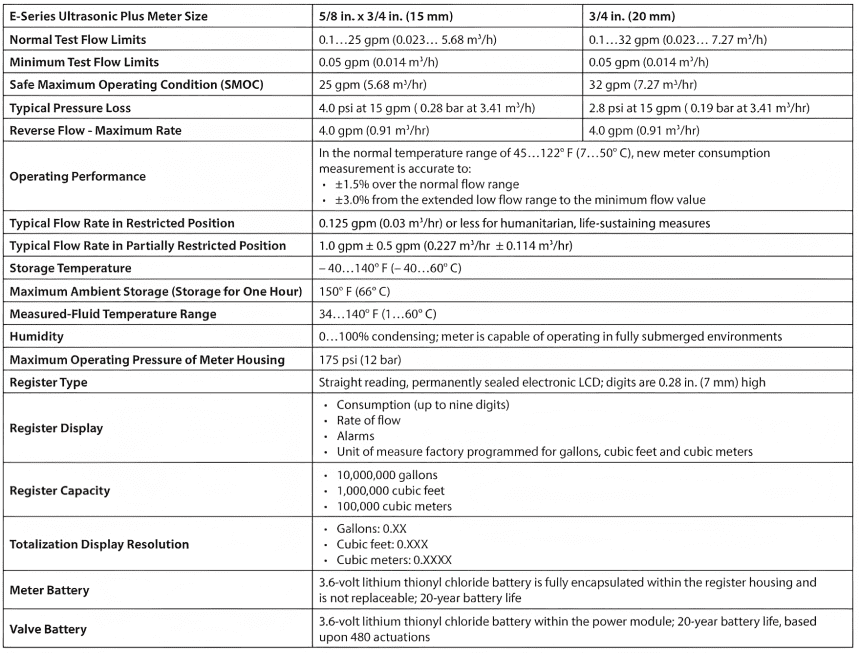

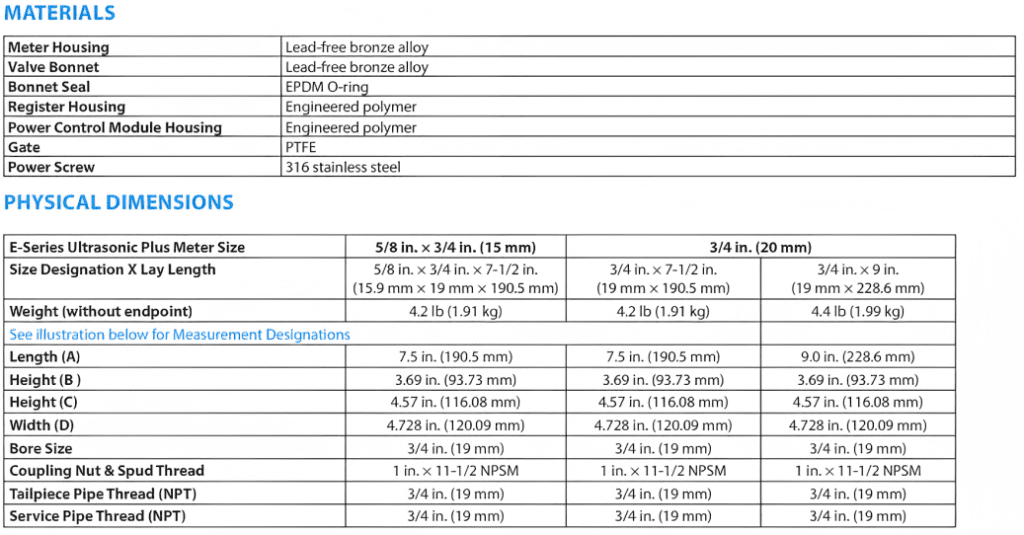

- Size: 5/8 in. × 3/4 in. and 3/4 in.
- Temperature Range: 34–140 °F (1–60 °C)
- Flow Range: 0.05–32 gpm (0.01–7.27 m³/hr)
- Power Supply: 3.6-volt lithium thionyl chloride battery
- Battery Life: 20 years
- Accuracy: ±1.5% over the normal flow range
- Extended Low-Flow Accuracy: ±3.0%
- Pressure Range: Up to 175 PSI (12 bar)
