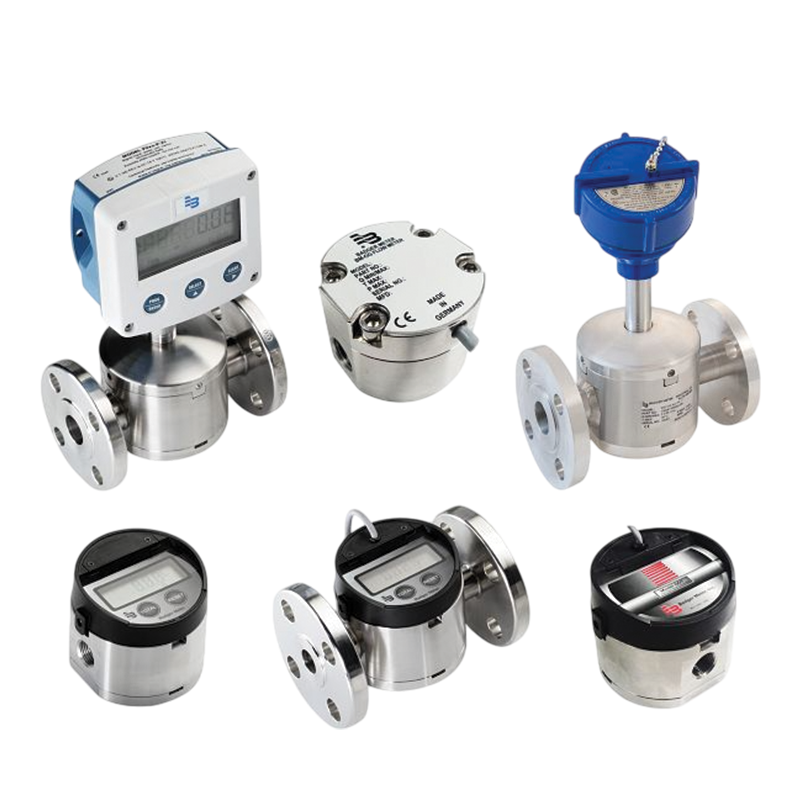

Industrial Oval Gear Flow Meter
The Industrial Oval Gear Meter is a modular flow meter design, economical yet highly accurate and rugged. Due to the rugged nature of this particular flow measurement technology, the industrial Oval Gear Meter can be used in a number of applications where conventional meters are not acceptable.
• High accuracy and repeatability
• Insensitive to viscosity change – Maintains accuracy
• Not affected by pulsating flows
• Can be mounted in tight pipework and any orientation
• Most industrial communications and outputs available
• Custom options available
• ATEX approval
ADVANTAGES
OPERATION PRINCIPLE
Fluid enters the inlet port and then passes through the metering chamber. Inside the chamber, fluid forces the internal gears to rotate before exiting through the outlet port. Each rotation of the gears displaces a specific volume of fluid. As the gears rotate, a magnet on each end of the gear passes a reed switch in the top-mounted register’s circuit board. The reed switches send pulses to the microprocessor in the register to change the LED display segments. The oval gear meter can be used in conjunction with a variety of industrial registers
- Chemical & Petrochemical: Managing and controlling flow of various process chemicals and fluids.
- Oil & Gas: Measuring diesel, lubricants, and other petroleum products.
- Industrial Processes: Precise volume dispensing of diverse industrial liquids, including corrosive types.
- Automotive Fluid Dispensing: Accurate measurement of engine oil, coolant, transmission fluid, and wiper fluid.
- Power Generation: Monitoring flow of cooling water, steam, and feedwater in power plant systems.
- Temperature Range: –30°C to 120°C (–22°F to 248°F)
- Flow Range: 0.25 to 700 lpm (0.067 to 185 gpm)
- Pressure Range: Up to 200 bar (2900 psi)
- Accuracy: High accuracy and repeatability
- Materials: Housing made of stainless steel, PVDF, and aluminum
- Features:
- Rugged and durable design
- Suitable for viscous and corrosive liquids
- Modular design for flexibility
- Minimal wearable parts for long life
- Compatible with wide range of instrumentation/control systems
- Applications: Chemical, oil & gas, and automotive industries; measures liquids like petroleum-based fluids, water solutions, engine oil, and coolants
