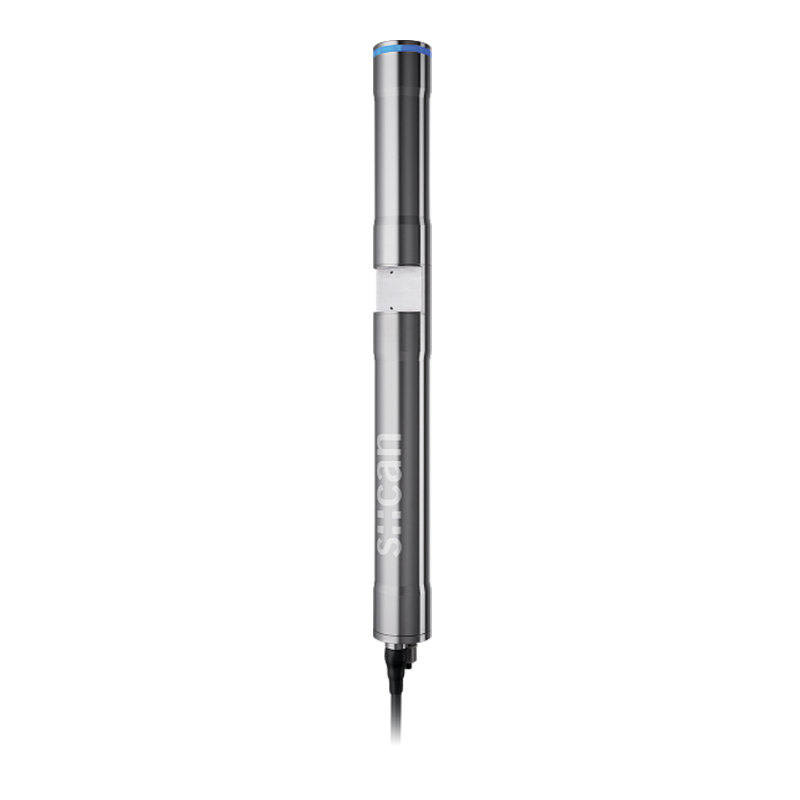

Spectro::lyser V3

High performance online water quality monitoring! s::can proudly announces the launch of the next generation of spectrometers for online water quality monitoring. As the technology leader we have performed extensive research on our customers’ needs and developed the spectro::lyser V3 based on these results.

spectro::lyser™ UV-Vis monitors depending on the application an individual selection of: TSS, TS, turbidity, color, TOC, DOC, BOD, COD, NO3-N, NO3, chloramine, HS-, O3, CLD, Chl-a, BTX, UV254, fingerprints, spectral alarms and temperature

Description

Measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
Web server on board – IoT enabled, no user software is needed to configure the probe
Communicates directly with your mobile device via WLAN
Choose exactly the parameters you want to measure – unlimited number of parameters possible
8 GB onboard memory – capacity for logging data for many years
Improved optical performance – revolutionary precision
Fast measurement interval – every 10 seconds
Extremely power efficient – sleep mode for low energy consumption
Multiparameter probe with 1 mm, 5 mm or 35 mm optical path length, ideal for waste water, surface water and drinking water
Long term stable and maintenance free in operation
Factory precalibrated, local multi-point calibration possible
Automatic cleaning with compressed air or brush/ruck::sack

Technical Specification

power supply: 12 VDC
power consumption (typical): 150 mA (average)
power consumption (max.): 300 mA
cable length: 7.5 m
housing material: POM-C
dimensions (width x height x xdepth): 182 x 46 x 36.5 mm
weight (min.): 750 g
installation / mounting: submersed
operating pressure 0 … 0.5 bar
ingress protection class: IP68
storage temperature: -20 … 80 °C
storage humidity: 0 … 95 %
