- Principle: Non-contact optical fluorescence (UV LED)
- Sensitivity: Detects oil films >1 µm
- Detectable Oils: Diesel, lubricants, crude, bunker fuels, jet fuel
- Detection Range: Up to 10 m (33 ft)
- Operating Temperature: -30°C to +60°C (-22°F to 140°F)
- Power: <2 W DC; 12–24 VDC standard; AC/solar optional
- Enclosure: IP68, hermetically sealed, anodized aluminum
- Outputs: Relay contacts, RS-485 (Modbus), 4–20 mA
- Dimensions: 590 × 83 × 80 mm (23.2 × 3.3 × 3.1 in)
- Features: Low power, 5-year LED life, easy installation, Zone 1 hazardous area suitable (ATEX model)

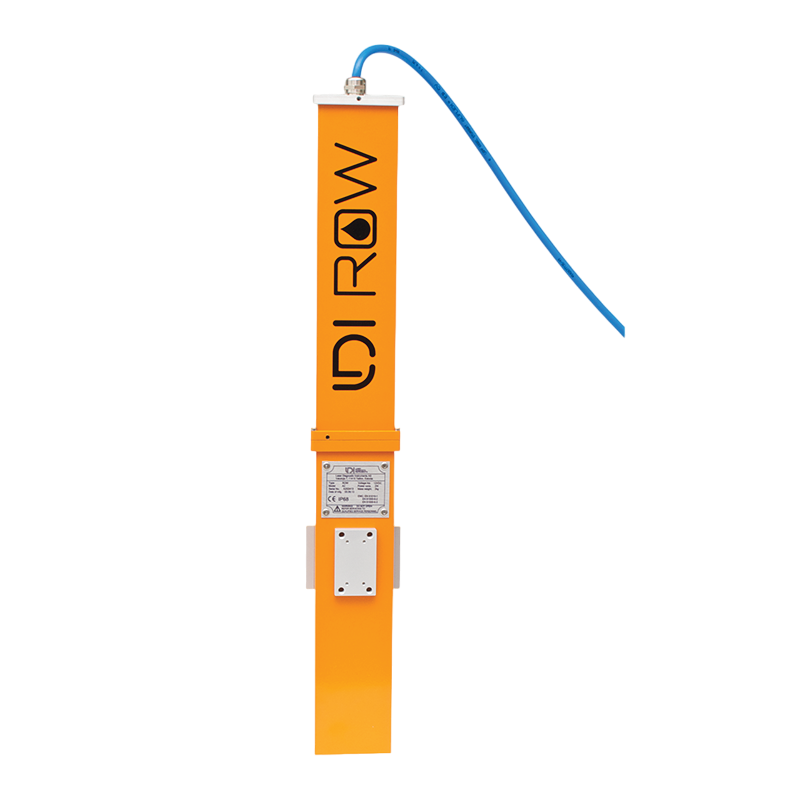

LDI ROW Aluminum Non-Contact Oil Detector
The ROW is an autonomous, non-contact sensor for detecting oil on water. It monitors industrial sites for oil spills and leaks so you can respond quickly. Protect drinking water sources and safeguard heavy industrial equipment from lubricant oil leaks protect the environment.
- Non-Contact Optical Detection: Uses pulsed UV light to excite oil molecules, eliminating sensor contamination and fouling.
- High Sensitivity: Detects very thin oil films, down to 1 µm (or <50 microns), providing early spill warnings.
- Low Power Consumption: Under 2W, making it perfect for remote, battery, or solar-powered applications.
- Durable Housing: Aluminum housing is lightweight and corrosion-resistant, with an IP68 rating for harsh outdoor use.
- Long Detection Range: Effective up to 10 meters, with longer-range versions available.
- Real-Time Monitoring: Connects to data loggers for instant alerts (email, SMS, SCADA) for prompt spill containment.
- Easy Installation: Simple, maintenance-free operation ideal for permanent or temporary deployments.
- Broad Oil Detection: Detects various oils, including fuels, lubricants, diesel, and crude oil.
- Certifications: CE, EPA, ATEX/IECEx certified, ensuring reliability and compliance.
- Storm Drains & Industrial Outfalls
- Ports & Shipping Facilities
- Power Plants (Hydro/Thermal)
- Water Treatment & Reservoirs
- Airports & Oil/Gas Facilities
