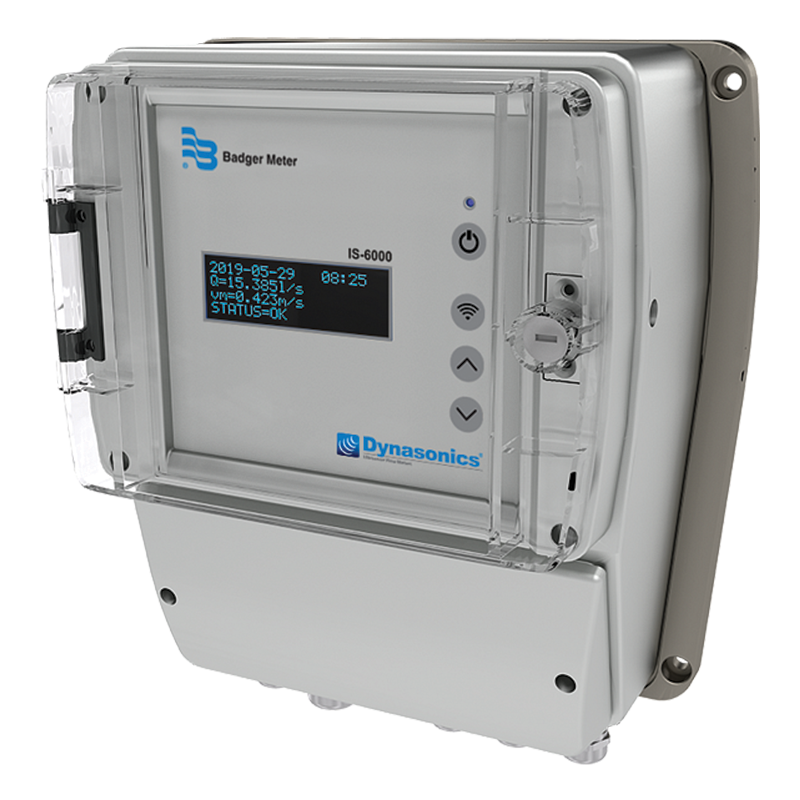

IS-6000 Doppler Area Velocity Flowmeter
For open channel and partially filled pipe flow measurements, the IS-6000 flow meter measures flow velocity and level to determine the flow rate and total volume passing through. Available with a submerged pulse-Doppler sensor, the IS-6000 is a versatile meter that eliminates the need for weirs or flumes.
BENEFITS
• Flow rate and total for open channel or partially filled pipe
• Eliminate construction and maintenance of weirs and flumes
• Eliminate recalibration based on seasonal flows
• Program remotely with a smartphone or laptop
• Upload data logs through Ethernet or WiFi
FEATURES
• Flow velocity profiling with multiple measurement points
• Low profile submerged sensor
• Bidirectional flow measurements
• Data logging with time/date stamp
• Meter setup using WiFi with webserver
• Modbus RTU and Modbus TCP Ethernet
• Rugged, aluminum enclosure for long service life in harsh environments
- Wastewater treatment plants: Measuring influent, in-plant flows, and effluent.
- Wastewater collection systems and sanitary sewers.
- Stormwater monitoring.
- Industrial discharge and process applications.
- Aqueduct measurement.
- Flow Measurement: Pulse coherent Doppler for velocity, ultrasonic travel time for water level
- Velocity Range: ±16.5 ft/s (±5.0 m/s)
- Velocity Accuracy: ±2% of reading (high velocities), ±0.1 ft/s (low velocities)
- Water Level Range: 1.6–51 in (0.04–1.3 m), expandable with external sensor
- Flow Accuracy: Typically ±2% of reading
- Pipe & Channel Sizes: 0.13–32 ft (0.04–10 m)
- Sensor Temperature Range: 5–122°F (–15 to 50°C)
- Transmitter Temperature Range: –4–140°F (–20 to 60°C)
- Sensor Material: Stainless steel
- Ingress Protection: Sensor IP68, Transmitter IP66
