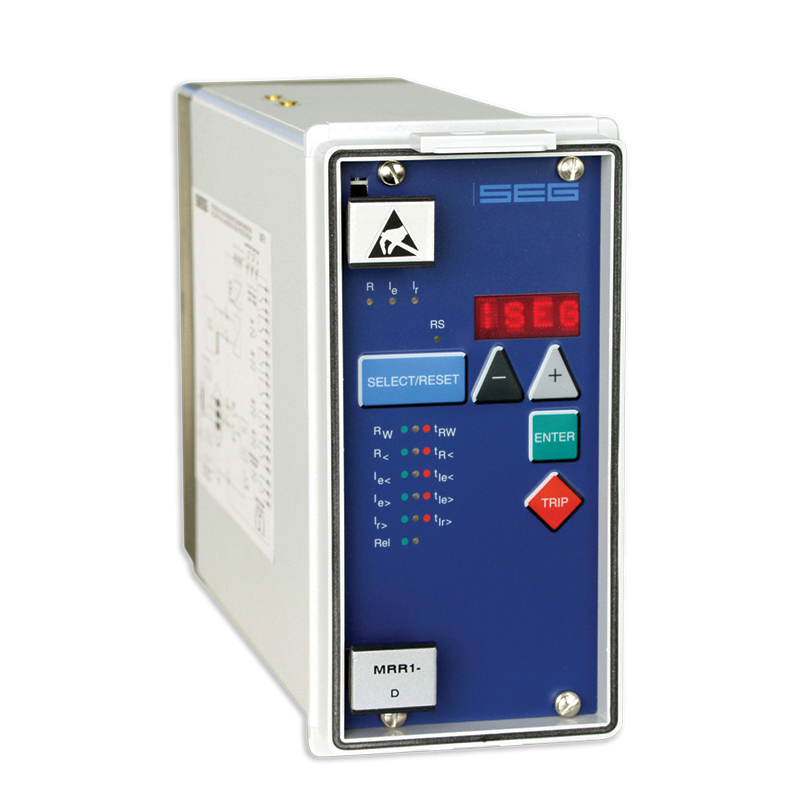

HighTECH Line – MRR1

MULTIFUNCTIONAL GENERATOR ROTOR PROTECTION RELAY

The generator rotor protection relay MRR1 com-bines rotor earth fault protection, excitation over- and undercurrent protection as well as rotating diode failure protection.

Thus providing a powerful protection regarding the rotor of synchronous generators, covering the following ANSI codes:
37 DC undercurrent relay
40 Field relay
58 Rectification failure relay
64 Ground detector relay
76 DC over current relay

The MRR1 is recommended for synchronous generators and motors above 1 MVA rating.

The rotor earth fault element detects high- and low resistance earth faults of the rotor winding. It is equipped with two stages, one for alarm, one for trip.</P.

The excitation current protection element super-vises the DC excitation current of brushless excitor machines. The protective functions are: Undercurrent, over current and ripple detection for diode failure protection.

  • Detection of high impedance earth faults with a test frequency of 0.5 Hz
  • Short circuit and overvoltage proof measuring input for the earth fault protection
  • Excitor current measurement galvanically isolated via Hall-transducer, measuring range 0 to 20 A
  • Display of insulation resistance
  • Display of the excitation current
  • Excitation current over- and undercurrent protection with independent settings for current and delay time
  • Detection of diode failures by supervision of the ripple component of the excitation current
  • Two stage supervision of the rotor insulation resistance with independent settings for resistance and time delay
  • Two trip relays, one for excitation under- and over current, one for diode failure detection
  • Digital inputs for blocking and for remote reset
  • Programmable function of the blocking input
  • Programmable assignment of protective functions to output relays
  • Remote interfacing via RS485
