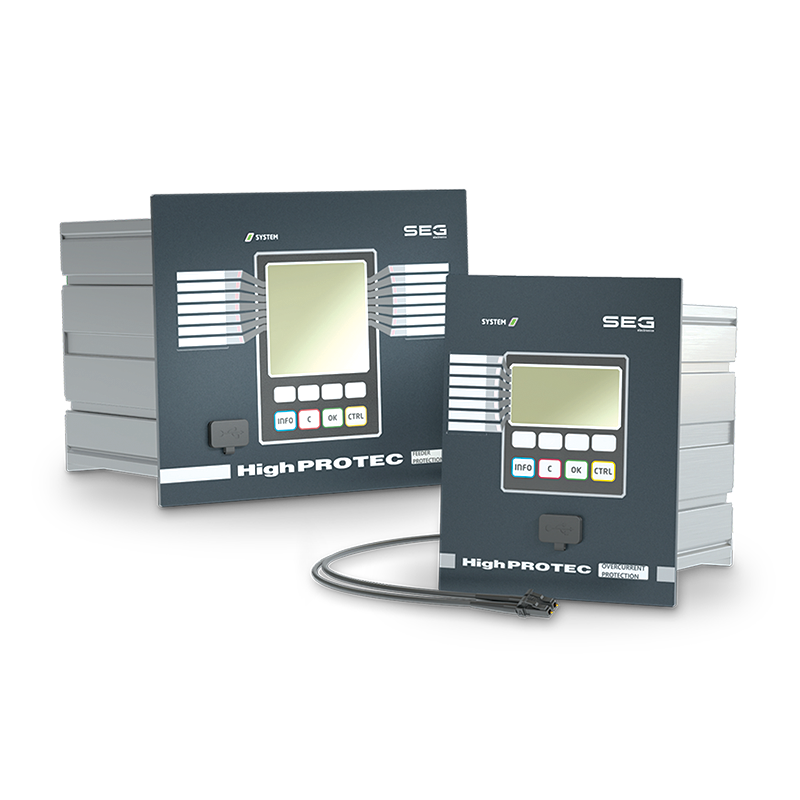

HighPROTEC Line – MRU4

Outstanding solution for reliable protection

The MRU4 is a protection relay which uses the latest Dual-Core-Processor Technology to provide precise and reliable protective functions and is very easy to operate.

It is designed to protect electrical equipment from dangerous voltage fluctuations. For example protection against under voltages caused by mains short-circuits, or overvoltage’s
due to load shedding or failure of a generator voltage controller.

Its compact design makes the MRU4 ideal for installation within the LV terminal compartments of compact SF6-insulated MV systems. The protection functions of the MRU4 have been
adapted to comply with the requirements of the VDE‑AR‑N 4110: 2023-09.

All Inclusive
• All protection features without extra charge
• Parameter setting and evaluation software
• Disturbance record analysis software
Comprehensive frequency protection package
Each of the six elements can be used as:
• f< or f> (over- and underfrequency supervision)
• df/dt (ROCOF) – Rate of change of frequency
• (f< and df/dt) or (f> and df/dt) Combination of over-, under- and rate of change of frequency (ROCOF)
• (f< and DF/DT) or (f> and DF/DT) Combination of over-, under- and increase of frequency
• Delta Phi (Vector surge)
Six Elements Voltage Protection
• Under- and overvoltage
• Programmable time dependent undervoltage tripping characteristic
Six Elements Voltage Asymmetry Supervision
• Under- and overvoltage in positive phase sequence system, overvoltage in negative phase sequence system
Logic
• Up to 80 logic equations for protection, control and monitoring
Additional Highlights
• Two Elements Residual Voltage Protection VE>
• Flexible Fourth Voltage measuring input 2 elements
VE> or VX (for Synchrocheck)
• Sliding-Mean-Square Supervision , adjustable (VDE-AR 4105)
• FRT (LVRT), adjustable LVRT-profiles, optionally AR-controlled
• Synchrocheck, now via Transformer
Supervision
• Voltage transformer supervision
• Trip circuit supervision
• CBF via position indicators
Recorders
• Disturbance recorder: 120 s non volatile
• Fault recorder: 20 faults non volatile
• Event recorder: 300 events non volatile
• Trend recorder: 4000 non volatile entries

Communication Options
• IEC 61850
• Profibus DP
• Modbus RTU and/or Modbus TCP
• IEC 60870-5-103/-104
• DNP 3.0 (RTU, TCP, UDP)
• SCADApter for Retrofit
• Configurable SCADA protocols: Modbus, Profibus, IEC 60870-5-103/-104, DNP3
• TypeCodes Communication O,P,Q,R
• Redundant Ethernet: Two Ethernet channels available on the device [Electrical Ethernet [RJ45]or Optical Ethernet [FO] – fiber optic cable]
– Switch-Mode [Redundancy with RSTP]
– PRP – Parallel Redundancy Protocol
– HSR – High-Availability Seamless Redundancy Protocol
Control
• 1 breaker
• Breaker wearr
Commissioning Support
• Customizable Display (Single-Line)
• Customizable Inserts
• Copy and compare parameter sets
• Configuration files are convertible
• Forcing and disarming of output relays
• Fault simulator: current, voltage
• Graphical display of tripping characteristics
• 8 languages selectable within the relay
PC Tools
• Setting and analyzing software
Smart view free of charge
• Including page editor to design own Control pages
• SCADApter to re-assign datapoints for Retrofit projects: Modbus, Profibus, IEC 60870-5-103/ -104
Cyber Security
• Menu for the activation of BDEW-Whitepapercompliant security settings (e. g. hardening of interfaces)
• Scurity Logger
• Centralized Security Logs (Syslog)
• Encrypted Connection Smart view Device
• Device specific certificates (No man in the middle attacks)
• Multi-Password-Level
Time Synchronisation
• SNTP, IRIG-B00X, Modbus, DNP 3.0, IEC 60870-5-103/-104

Power supply: 19 to 270 VAC / 19 to 360 VDC
Ambient temperature
Storage:
Operation:
`-20 °C to 70 °C
`-10 °C to 55 °C
Voltage AC input: 100 VAC and 400 VAC, 0 to 2 x Un
Current AC input: 1 A or 5 A
Discrete inputs (isolated): 19 to 270 VAC / 19 to 360 VDC
Relay outputs: 250 VAC 6 A, 250 VDC 0.3 A, 24 VDC 6 A
Housing: DIN-Rail mount
Dimension (W×H×D): 75 × 255 × 110 mm
Sealing: IP40
Weight: approx. 1,800 g
