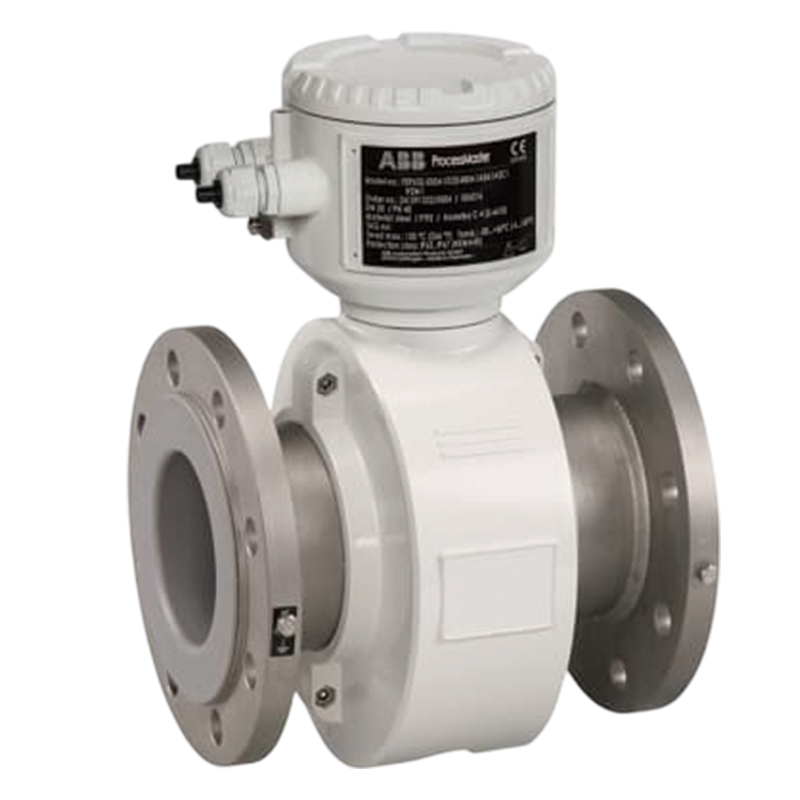

Electromagnetic Flowmeter ProcessMaster FEP630

Overview

ProcessMaster FEP630 – The first choice for all industrial applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

Real-time diagnostics keep your process up and running
– Detecting critical process conditions at an early stage reduces unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting
In-built noise/grounding check
– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for the highest confidence in your flow measurement
– Checking for sensor and transmitter integrity
– No need to remove the flowmeter from the process
Simplicity of operation
– Automatic self-configuration sequence
– Incredibly easy to work with
Ethernet IP communication
– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in web server, no additional software required for flowmeter configuration

General specifications:

  • Measuring value error
    – Standard 0.4 % of the rate, option for 0.3% and 0.2 % of the rate
  • Nominal diameter
    – DN 3 to 2000 (1/10 to 80 in.)
  • Process connection
    – Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS, AS2129
  • Nominal pressure
    – PN 10 to 100,
    – ASME CL 150, 300
  • Lining
    – Hard rubber, soft rubber, PTFE, PFA, ETFE, Linatex
  • IP rating
    – IP67 or IP68
  • Fluid temperature
    – Up to 180 °C (356 °F)
  • Communication
    – HART
    – PROFIBUS DP, Profibus PA
    – Modbus RTU, Modbus TCP
    – Ethernet IP, Profinet



    • Webserver
  • Ex approvals
    – ATEX, IECEx, cFMus, NEPSI
  • Process diagnostics
    – Empty pipe, partially filling, gas bubbles, electrode impedance, conductivity, sensor temperature
