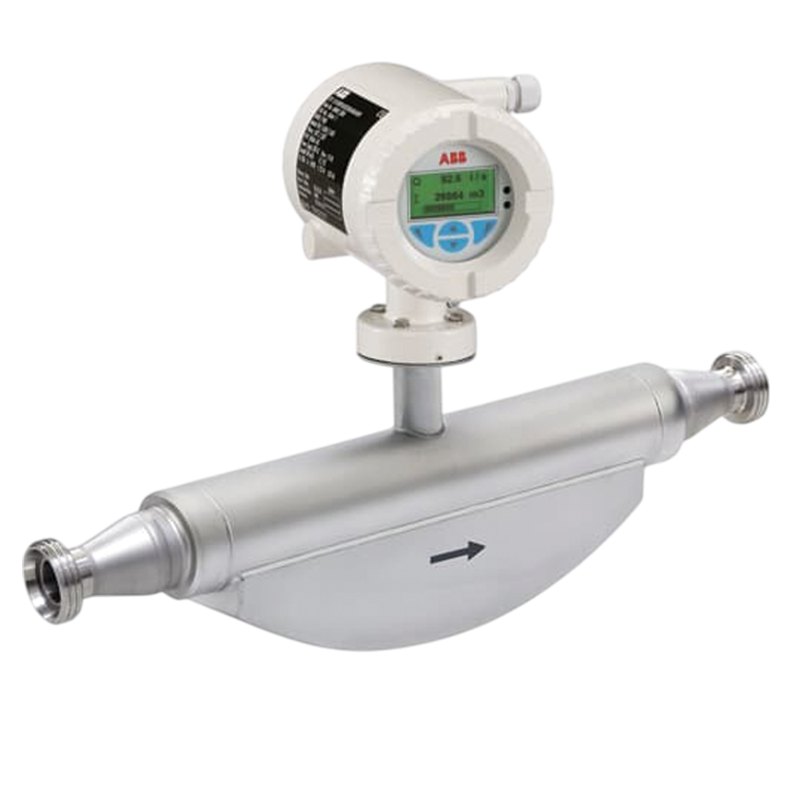

Coriolis Mass Flowmeter CoriolisMaster FCH430 and FCH450
With no up or downstream piping requirements the compact Coriolis flowmeters can be installed in the tightest spaces, enabling applications not possible before.
The FCH400 series delivers:
- Designed for hygienic applications
– EHEDG certified - Up to five modular I/Os
– Multivariable meter design
– Optional plug-in cards
– Automatic firmware update
– Various communication protocols available - SmartSensor
– All digital solution
– Installation flexibility
– Meter intelligence located in the sensor - SensorApplicationMemory
– Maximum data security
– Plug-and-play electronics replacement - ABB common look and feel
– Easy Set-up
– Operation through the glass via capacitive keys - VeriMass on-board verification and diagnostics
– Online preventive maintenance
– Extended maintenance cycles
– Reduced maintenance effort - Designed for 70 °C (158 °F) ambient temperature and high vibrations
- Enhanced Coriolis control (ECC) option for advanced measurement for multiphase conditions and other challenging fluids
- Lower pressure drop
- Self-draining
- Global approvals for explosion protection
The FCH450 adds:
- DensiMass software for direct concentration measurement
- FillMass software for filling application control
- Process industries: Used for accurate measurement in various chemical, petrochemical, and food and beverage processes.
- Hygienic industries: The FCH400 series is specifically designed for hygienic applications, featuring EHEDG certification and polished, cleanable surfaces.
- Batching: The FCH450 model can be equipped with the FillMass software, making it ideal for batching applications in food, beverage, and pharmaceutical production.
- Two-phase flow: The flowmeters can calculate water cut in two-phase flows by measuring both density and temperature.
- Concentration measurement: The DensiMass software on the FCH450 enables the calculation of percent concentration, and the accuracy is determined by the precision of the density and temperature measurements.
- General high-accuracy flow: Suitable for any application requiring maximum mass flow accuracy, without needing straight runs before or after the meter.
General Specifications:
- Nominal sizes / measuring ranges
– DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h)
– DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h)
– DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h) - Ex approvals
– ATEX zone 0/1/2, cFMus Div 1/2 and zone 0/1/2
– NEPSI Zone 0/1/2
– Various other approvals - Hygienic approvals
– EHEDG and FDA material compliant - Wetted materials
– 1.4404 / 1.4435 (316L) - Accuracy for liquids
FCH430
– Mass and volume: 0.4 % o. r. / 0.25 % o. r. / 0.2 % o. r.
– Density: 10 g/l
FCH450
– Mass: 0.15 % o. r. / 0.1 % o. r., volume: 0.15 % o. r.
– Density: 2 g/l or 1 g/l - Measuring medium temperature
FCH430
– -50 to 160 °C (-58 to 320 °F)
FCH450
– -50 to 205 °C (-58 to 400 °F) - Outputs
– 5 modular I/Os
– HART 7.1
– PROFIBUS DP
– Modbus
– Ethernet- Ethernet IP
- Modbus TCP
- Webserver
- More protocols in preparation
- Power supply
– 11 to 30 V DC, 110/230 V AC
– Power over Ethernet
