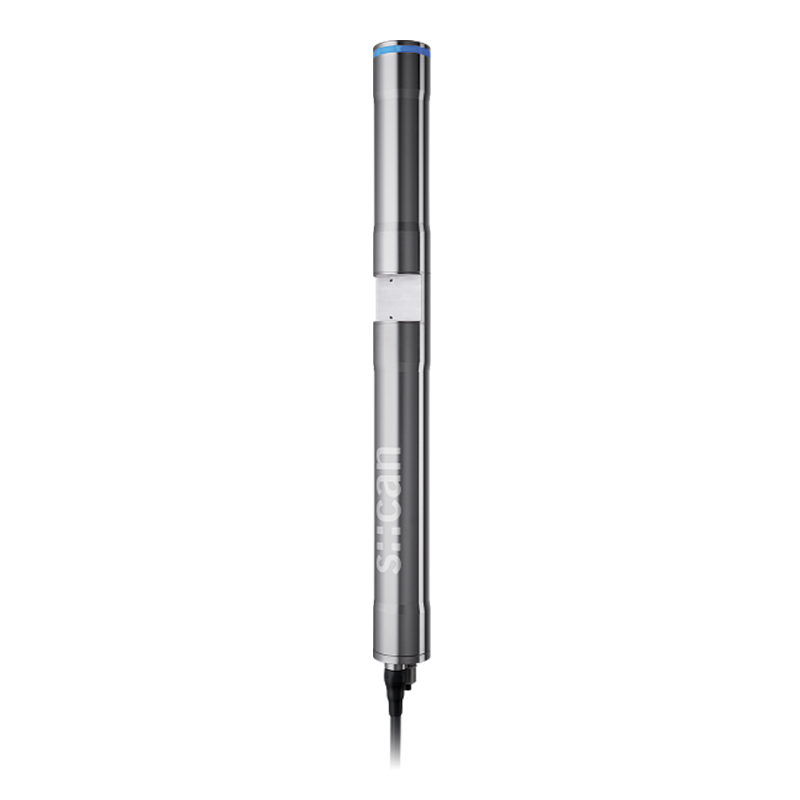

Carbo::lyser V3

The carbo::lyser is ideal for the measurement of the organic carbon load, represented by parameters like UV254, TOC, DOC, COD, or BOD, and at the same time, turbidity / solids concentration. Applicability ranges from pure water to industrial waste water. Pre-calibrations for different types of water and applications significantly facilitate use.

carbo::lyser™ II monitors 2 of the following parameters: TSS, Turbidity, TOC, DOC, BOD, COD, COD f, UV254 and UV254 f

carbo::lyser™ III monitors 3 of the follwing parameters: TSS, Turbidity, TOC, DOC, BOD, COD, COD f, UV254 and UV254 f

Description

measuring principle: UV-Vis spectrometry over the total range (190-750 nm)
web server on board – IoT enabled, no user software is needed to configure the probe
communicates directly with your mobile device via WLAN
choose exactly the parameters you want to measure – unlimited number of parameters possible
8 GB onboard memory – capacity for logging data for many years
improved optical performance – revolutionary precision
fast measurement interval – every 10 seconds
extremely power efficient – sleep mode for low energy consumption
multiparameter probe with 1 mm, 5 mm or 35 mm optical path length, ideal for waste water, surface water and drinking water
long term stable and maintenance free in operation
factory precalibrated, local multi-point calibration possible
automatic cleaning with compressed air or brush/ruck::sack
