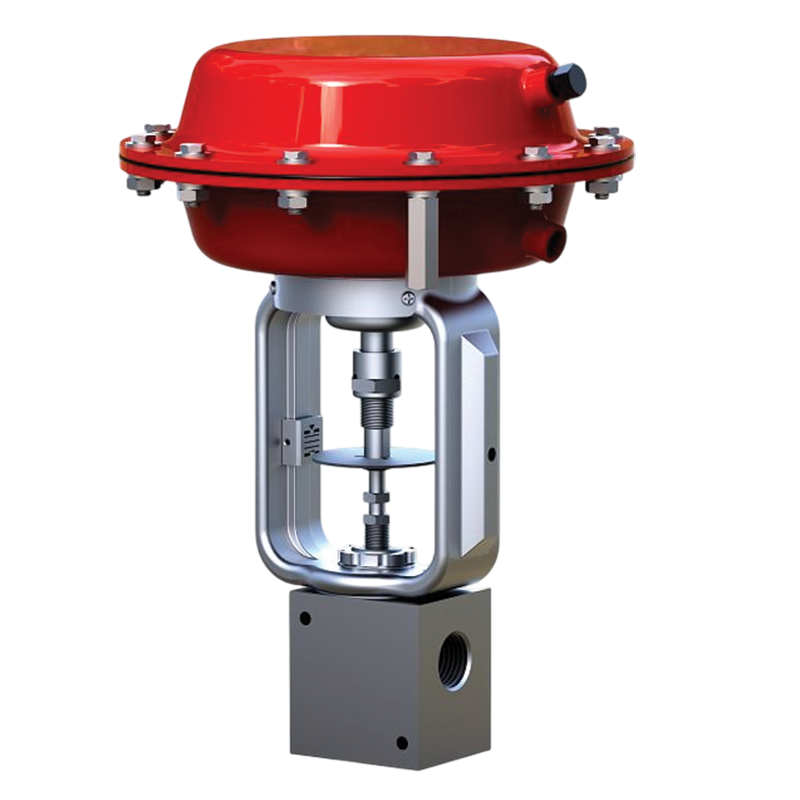

40,000 PSI Type HP-40 Ultra High Pressure Control Valve

DESCRIPTION

The HP-40 is an ultra-high pressure control valve using a tri-axially forged stainless steel body along with a solid Stellite inner valve
assembly. The HP-40 can be used for both flow control as well as a Class IV shutoff valve. The versatility of the HP-40 creates a singular solution for your high-pressure applications.

APPLICATION

The HP-40 valve is used in industrial applications, research, and process pilot plants on liquids and gases. The main use is in high-pressure chemical injection, which is used in the production of high-pressure low-density polyethylene (HPLDPE).
