Groundwater is one of India’s most critical water resources, supplying drinking water to millions and supporting agriculture, industry, and urban development. Yet contamination from both natural geology and human activities is increasing across many regions. Because groundwater moves slowly and aquifers recover gradually, pollution can remain undetected for years. A reliable Groundwater Quality Monitoring System enables early detection of water quality changes, helping utilities, industries, and regulators take corrective action before contamination becomes a larger environmental or public health concern.  Key Contaminants in Indian Groundwater A Groundwater Quality Monitoring System tracks both general water quality indicators and contaminant-specific parameters to assess aquifer health and detect emerging risks. Core parameters include pH, electrical conductivity, total dissolved solids (TDS), dissolved oxygen, oxidation reduction potential (ORP), temperature, and groundwater level. Changes in conductivity or water levels can indicate saline intrusion, aquifer stress, or the movement and concentration of contaminants. Contaminant-specific monitoring focuses on parameters such as nitrate, fluoride, and ammonia, which can be measured in real time using ion-selective electrodes, while arsenic and most heavy metals typically require laboratory confirmation through spectroscopy. Groundwater contamination broadly originates from two sources: geogenic contaminants that leach naturally from rocks and soils, and anthropogenic contaminants introduced through agriculture, industry, and waste disposal. A national assessment of more than 15,000 groundwater samples found that nearly one-fifth exceeded safe nitrate limits, around 9 percent exceeded fluoride limits, and approximately 3.5 percent contained arsenic above permissible levels. Nitrate, largely associated with fertiliser runoff and animal waste, is linked to methemoglobinemia (blue baby syndrome) in infants. Fluoride, prevalent in states such as Rajasthan, Haryana, and Telangana, causes fluorosis after prolonged exposure, while arsenic contamination in the alluvial plains of West Bengal, Bihar, and Assam is associated with cancer and skin lesions. Other commonly monitored groundwater concerns include iron, uranium, and salinity. Monitoring programmes are typically aligned with BIS IS 10500 drinking water standards and groundwater assessment frameworks established by agencies such as the Central Ground Water Board (CGWB) and the Central Pollution Control Board (CPCB). These standards help determine acceptable limits for contaminants and guide monitoring frequency and response actions. Why Periodic Sampling Falls Short Most groundwater monitoring in India still depends on manual sampling, often only before and after the monsoon. That cadence misses a great deal. Contamination can rise gradually between visits, react to a single heavy rainfall, or vary sharply between nearby wells, and a grab sample taken twice a year cannot show how an aquifer responds to pumping, recharge, or a discharge event. Remote and rural wells make the gap worse, since the cost of field visits means many sites are rarely sampled at all. The outcome is a record that documents history rather than warning of change. How an Automated System Works A sensor sonde installed inside the well takes continuous measurements at configured intervals and transmits timestamped readings to a data logger or telemetry unit. From there, data travels over cellular networks for connected sites, or via LoRaWAN and satellite links for remote borewells beyond cellular range. The Telepro platform receives, stores, and visualises this data in real time, comparing readings against BIS IS 10500 thresholds, triggering alerts via dashboards, email, or SMS, and integrating with SCADA systems where centralised control is required. Over time, the accumulated data reveals seasonal patterns, recharge behaviour, and early signs of contamination drift that no periodic sampling programme could detect. Applications Public Water Supply Continuous monitoring of municipal and rural drinking water borewells. Industrial Compliance Monitoring Monitoring around landfills, ash ponds, chemical storage facilities, and industrial effluent systems Mining & Infrastructure Projects Monitoring groundwater quality impacts around mining leases and large infrastructure developments. Aquifer Management Tracking recharge effectiveness and saline intrusion in vulnerable regions. How Aaxis Nano Supports Implementation Aaxis Nano builds groundwater monitoring solutions around online instrumentation, telemetry, and SCADA integration. The company deploys advanced monitoring technologies from In-Situ, Badger Meter, and Sommer, combining groundwater quality sensors, level loggers, and flow monitoring instruments with the Telepro platform for visualisation, threshold-based alerting aligned with Indian standards, and central reporting. Aaxis Nano handles site assessment, sensor selection, calibration, and long-term maintenance, with connectivity options suited to remote and rural wells, turning groundwater quality into a live operational signal rather than a periodic report. Benefits of Continuous Groundwater Monitoring Early detection of contamination events Reduced field sampling costs Real-time visibility into groundwater quality trends Improved regulatory compliance and reporting Better understanding of aquifer behaviour Faster response to pollution incidents Integration with telemetry, SCADA, and central monitoring systems FAQs How often should groundwater quality be monitored? Monitoring frequency depends on risk, regulatory requirements, and site conditions. While traditional programmes often rely on quarterly or seasonal sampling, automated systems can collect measurements at hourly or daily intervals, providing a much clearer picture of groundwater behaviour. Which parameters should a system measure first? Start with general indicators such as pH, conductivity or TDS, and temperature, then add contaminant-specific sensors such as nitrate or fluoride based on local risk, tracking groundwater level alongside quality. How is automated monitoring better than periodic sampling? It measures continuously inside the well, transmits data remotely, and alerts operators when a parameter crosses a limit, allowing action before contamination spreads. What factors should be considered when deploying a groundwater quality monitoring system? A successful deployment depends on several practical factors. Sensors installed in wells are susceptible to biofouling and mineral scaling, making regular cleaning and calibration essential based on local water chemistry. The monitoring sonde should be positioned within the screened zone of the well to ensure representative groundwater measurements. Power supply and communication infrastructure should also be selected according to site conditions, with solar-powered systems and low-power telemetry commonly used for remote borewells and monitoring locations.

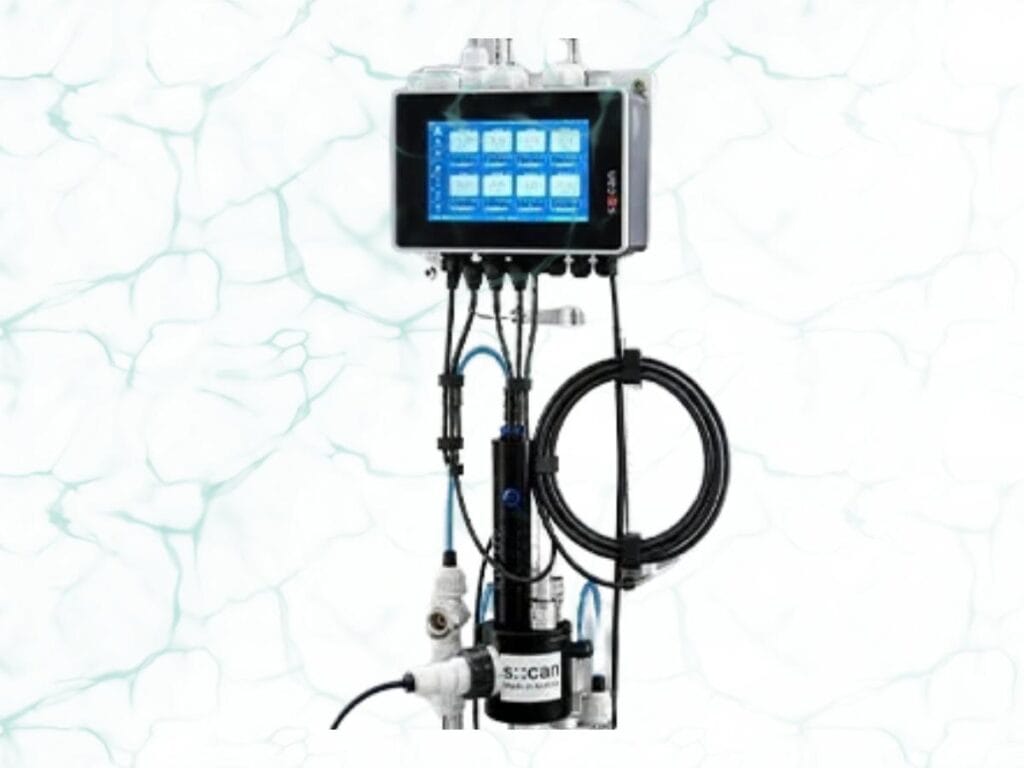

Water has quietly become one of the most regulated and most scrutinised inputs in Indian industry. Plants that once treated water management as a back-end utility now face direct pressure from regulators, rising input costs, and public attention on discharge quality. In response, a growing number of factories, treatment plants, and process facilities are replacing periodic manual sampling with Online Water Monitoring Systems that report water quality continuously instead of in batches. The shift is not about technology for its own sake. It is driven by specific operational and compliance gaps that manual testing can no longer close. The Problem With Sampling on a Schedule Conventional monitoring depends on grab samples collected at fixed intervals and sent to a laboratory. Results return a day or two later, by which time the conditions that produced them have usually changed. A single sample describes one location at one moment. It says nothing about what happened overnight, during a shift change, or when an effluent valve was briefly opened. For industries, that gap carries real consequences. An off-hours discharge exceedance can go unrecorded until the next scheduled sample. A drop in treatment performance can continue for hours before anyone notices. Because corrective action only begins after lab confirmation, most responses are reactive, and the cost of a missed event arrives as a penalty, a shutdown, or reputational damage. What an Online Water Monitoring System Actually Does An Online Water Monitoring System measures water quality directly in the process or discharge stream and transmits the data continuously to operators and, where required, to regulators. A working setup combines multi-parameter sensors, a data logger or remote telemetry unit, a communication link, and a cloud or SCADA platform. Sensors track key water quality and process parameters including flow, pH, TSS, COD, ammoniacal nitrogen, dissolved oxygen, TOC (where applicable), conductivity, turbidity, nitrate, and other application-specific indicators. Where required, BOD values are estimated using surrogate correlations or specialised analysers. Communication can be established through GSM/4G/5G, Ethernet, fibre, radio telemetry, LoRaWAN, or satellite networks depending on site conditions and regulatory requirements. The platform compares each reading against defined limits and raises an alert the moment a threshold is crossed. Why Industries Are Making the Move Regulation is the strongest single driver. Since CPCB’s OCEMS directives, industries classified under 17 Highly Polluting Industry (HPI) sectors have been required to install Online Continuous Effluent Monitoring Systems (OCEMS) and transmit real-time data to CPCB and State Pollution Control Board servers. For these plants, online monitoring is no longer optional, and the systems must stay calibrated and connected to remain compliant. Beyond compliance, water is getting expensive and scarce. Continuous monitoring provides confidence in treated water quality, enabling industries to safely reuse water for cooling towers, utilities, process applications, landscaping, and other non-potable purposes. Continuous visibility also lowers risk. Live data shows exactly which stage of a process is drifting, so operators can intervene before a parameter breaches its limit. When something does go wrong, a complete time stamped record helps separate a genuine process fault from a sensor event and supports any conversation with a regulator. Water performance has also become part of how companies report on sustainability. Verifiable, continuous discharge data carries far more weight with auditors and stakeholders than a folder of periodic lab reports. Where It Is Being Deployed Industrial effluent treatment plants form the largest use case, particularly in sectors named under the OCEMS mandate such as chemicals, pharmaceuticals, textiles, sugar and distillery, pulp and paper, and power generation. The technology is widely deployed across ETPs, CETPs, STPs, cooling water systems, and ZLD plants to support continuous compliance and operational control. Within industrial facilities, the same architecture enables process water monitoring, boiler and cooling water management, inlet water quality checks, and discharge monitoring where water quality directly affects process efficiency and product quality. Utilities and municipal operators apply these systems across treatment plant outlets, distribution networks, raw water intake monitoring points, and river monitoring stations to maintain visibility over water quality and ensure regulatory compliance. What to Plan For Before Deployment Online monitoring stays reliable when a few practical points are handled early. Sensor selection should match the actual water matrix, since effluent with high solids or aggressive chemistry fouls probes faster and needs more frequent service. Calibration is not a one time task, and most parameters need verification against laboratory standards every 30 to 90 days. Communication should suit the site, with cellular for connected locations and LoRaWAN or satellite for remote ones. Where regulatory transmission is required, the integration path to CPCB and state board servers should be confirmed before installation rather than after. Integrated Monitoring, Telemetry, and Compliance Infrastructure Aaxis Nano provides integrated solutions for continuous water quality monitoring by combining online instrumentation, telemetry, and SCADA connectivity. Multi-parameter sensors from partners such as s::can and ATi deliver real-time measurements, while the Telepro platform enables data visualization, alarm management, historical trending, and automated reporting. The solution supports seamless integration with plant SCADA systems and regulatory reporting platforms, including CPCB and SPCB servers where required. From system design and commissioning to calibration and maintenance, Aaxis Nano helps ensure reliable monitoring, data integrity, and long-term compliance performance. FAQs Q1. Is an online water monitoring system mandatory for my plant? If your facility falls under one of the 17 highly polluting industry categories defined by CPCB, an Online Continuous Effluent Monitoring System with live data transmission to CPCB and state board servers is a regulatory requirement. Many other plants adopt it voluntarily for process control and water reuse. Q2. How accurate are online sensors compared with laboratory testing? For most regulated parameters, modern sensors perform close to laboratory methods when properly calibrated. Routine verification against lab standards every 30 to 90 days keeps readings reliable. Complex parameters such as heavy metals may still need laboratory confirmation. Q3. What ongoing maintenance do these systems need? Typical upkeep includes periodic probe cleaning, calibration checks, inspection of the communication link, and replacement of consumable sensor parts. Effluent with high solids or

Water quality can change after treatment as it travels through reservoirs, pipelines, and distribution networks. Traditional grab sampling only provides periodic snapshots, making it difficult to identify sudden changes in chlorine residual, turbidity or contamination events. The MetriNet Multiparameter Water Quality Monitor provides continuous, real-time monitoring at critical points throughout the network, helping utilities maintain water quality from plant to consumer. What the MetriNet Water Quality Monitor Is MetriNet is a modular multi-parameter monitoring system from ATi, deployed in India by Aaxis Nano. Instead of one large analyser, it uses a network of small digital sensors called M-Nodes that plug into a shared communication bus. The system scales from a single sensor at a reservoir outlet to a distributed mesh across a city network, all feeding a central platform. Core Features The controller supports up to 8 M-Node sensors holding over 300,000 values, roughly 30 days of readings for 8 sensors at a one-minute interval. That local buffer matters in Indian field conditions, since data stays preserved on an internal card even when the link drops. Connectivity is flexible, with options for cellular, Wi-Fi, wired Modbus, Ethernet/IP, and Profibus DP, fitting both SCADA rooms and standalone remote sites. Built-in diagnostics, calibration reminders, and two alarm set points cut the manual attention each station needs. Using click-connect flow cells, sampled water can be returned to the main for effectively zero wastage when there is a small pressure difference between inlet and outlet, a practical advantage for utilities already fighting losses. Parameters It Measures The M-Node range covers the parameters most relevant to drinking water and distribution network monitoring. Per the product specification, MetriNet measures pH, pressure, turbidity, conductivity (2E/4E), dissolved oxygen (DO), oxygen reduction potential (ORP), nitrite, fluoride, free chlorine (FCI), total chlorine (TCI), combined chlorine, chlorine dioxide, dissolved ozone, hydrogen peroxide, peracetic acid (PAA), and other application-specific water quality parameters, enabling comprehensive real-time monitoring across water treatment and distribution systems. Free chlorine and turbidity are the priority pair for distribution monitoring, since a fall in residual chlorine or a turbidity spike often signals conditions where contamination follows. pH and conductivity add context, and the remaining parameters suit specific industrial or treatment applications. How the System Works At the centre of the system are the M-Nodes, complete digital sensors and transmitters in miniaturised bodies that connect in series. Each node is a Modbus smart transmitter that plugs directly into a MetriNet controller or any compatible data gathering system. For portable use, the Q51 controller runs and calibrates individual M-Nodes over Modbus RTU. For fixed installations, the MetriNet User Interface connects up to 8 nodes, logs data locally, and pushes it onward through IP-67 rated connectors. Nodes can be added or removed without disturbing the rest of the system, and because zero and span data sit inside each node, a freshly calibrated sensor swaps in within minutes. Applications The modular build lets one platform serve very different needs: Drinking water distribution: nodes track chlorine, turbidity, and pH, flagging loss of disinfection or discolouration early. Leak and network management: Water quality data can be integrated with pressure and leak monitoring systems to support network management decisions  Industrial and process water: in food and beverage and power generation, where quality affects the product. Healthcare and high-risk systems: renal dialysis water, HVAC circuits, and Legionella-sensitive applications needing continuous assurance. Built for Continuous Water Quality Surveillance MetriNet is engineered to provide continuous visibility into water quality across the distribution network. Its low-power digital M-Node sensors support long-term deployment at remote monitoring locations, while onboard data logging ensures measurement records remain available during temporary communication interruptions. The modular architecture enables utilities to expand monitoring coverage as operational requirements grow. Deployment, Integration and Operational Support Aaxis Nano supports the implementation of MetriNet monitoring systems through application assessment, monitoring point identification, sensor configuration, communication setup, and data integration. The system can be incorporated into existing SCADA, PLC, and telemetry infrastructures, enabling real-time data acquisition, visualization, historical trending, and alarm management. Through structured commissioning, calibration services, and preventive maintenance programs, utilities can maintain measurement accuracy, system reliability, and long-term monitoring performance across the distribution network. FAQs How many parameters can it measure? The M-Node range offers up to 16 parameters, and a single controller accepts up to 8 sensors at once. Operators choose only what a site needs, including pH, free chlorine, turbidity, conductivity, dissolved oxygen, and ORP. What happens if the network connection drops? Each controller stores over 300,000 values locally, about 30 days for 8 sensors at one minute intervals, and transmits once the link is restored. Can sensors be replaced without shutting the system down? Yes. M-Nodes plug into a shared bus and can be added or removed without affecting other measurements, and because calibration data sits in each node, a pre-calibrated sensor swaps in on site within minutes.

Oil behaves differently from any other water pollutant. A small release spreads into a thin film within minutes, drifts with wind and current, and can foul a long stretch of shoreline or a water intake before anyone notices. The cost of a spill is set largely by how fast it is caught, which is why an automated oil spill detection system for water has become standard at refineries, ports, and offshore sites.  The Detection Challenge Oil on water is harder to monitor than it sounds. A sheen only microns thick can still be a reportable event, yet it stays invisible to most general water sensors. Detection must also work at night, in fog, and against the clutter of waves, rain, and biological films that mimic an oil signature. A useful system flags a release early, points to its source, and avoids false alarms. Detection Technologies No single sensor covers every situation, so most sites combine a few: Fluorescence sensors are the workhorse for fixed point monitoring. Oil fluoresces under ultraviolet light, and an in-water probe reads that response to flag hydrocarbons at an intake or outfall continuously, often down to parts per billion. Surface film detectors sit at the waterline and read the change in reflected or absorbed light caused by an oil layer, suiting harbours and basins where a floating slick is the main concern. Laser fluorosensors take this further by using pulsed ultraviolet laser technology to detect and characterize oil remotely without direct contact with the water surface. Unlike conventional point sensors, they can monitor larger areas, rapidly localize spills, and help distinguish hydrocarbons from many naturally occurring surface films. This makes them particularly valuable for ports, terminals, offshore platforms, and environmentally sensitive water bodies where early detection over a wider area is critical. Aaxis Nano deploys this class of technology through its partnership with LDI. Radar covers wide areas. Oil damps the surface ripples radar normally sees, so a slick appears as a dark patch. Marine X-band radar watches the zone around a terminal, while satellite radar maps large offshore spills. Infrared and camera systems add visual confirmation. Thermal contrast between oil and water, combined with automated image analytics, helps verify alarms and track the movement of a slick in real time. Applications The technology choice follows the setting. Refinery and petrochemical outfalls use fluorescence sensors to confirm that treated effluent stays oil free, since a process upset can carry hydrocarbons into a drain. Ports and harbours combine surface detectors and radar to catch bunkering spills and bilge releases, while offshore platforms rely on radar and camera systems to watch the wide, unlit area around the structure. Water intake protection is a growing use. Power plants, desalination units, and drinking water works drawing from rivers or the sea install detection upstream of the intake to close a gate before oil reaches the plant, and inland pipelines crossing rivers use fixed detectors to catch a leak before it travels downstream. Regulatory Requirements Two layers of regulation drive adoption in India. For shipping, MARPOL Annex I sets a hard limit: machinery space bilge water may be discharged only if its oil content stays under 15 ppm, enforced by oil filtering equipment with an automatic stopping device. That single threshold drives much of the onboard and terminal monitoring in use.For spills in Indian waters, the National Oil Spill Disaster Contingency Plan (NOSDCP) designates the Indian Coast Guard as the Central Coordinating Authority for oil spill response. Ports, oil-handling facilities, and offshore operators are responsible for responding to incidents within their areas of operation, while the Coast Guard coordinates larger or more complex spill response efforts requiring multi-agency support. Domestic environmental regulations and discharge consent conditions also place limits on oil and grease concentrations in industrial effluent, making continuous detection a compliance tool as much as a safety measure. How an Automated Oil Spill Detection System Works How Aaxis Nano Supports Implementation Implementing an effective oil spill detection system requires more than selecting the right sensor. Factors such as site conditions, monitoring objectives, communication infrastructure, and response requirements all influence system performance. Aaxis Nano supports these implementations by combining advanced sensing technologies, including LDI laser fluorosensors, with telemetry, SCADA integration, and the Telepro platform to deliver continuous monitoring, real-time alerting, and operational visibility. From site assessment and sensor selection to commissioning and integration with existing monitoring and emergency response systems, the focus is on ensuring that detection data translates into actionable response workflows. This enables faster spill containment, reduced environmental impact, and stronger regulatory compliance. FAQs How does a sensor detect oil in water? Most fixed systems use fluorescence: oil glows under ultraviolet light, and the sensor measures that response to detect hydrocarbons, often at parts per billion, without contact with the slick. Radar and infrared methods add wide-area and night-time coverage. What is the 15 ppm rule? Under MARPOL Annex I, oily bilge water from ships may be discharged only if its oil content is below 15 parts per million, and the filtering equipment must stop the discharge automatically above that level. Who is responsible for oil spill response in Indian waters? The Indian Coast Guard, under the National Oil Spill Disaster Contingency Plan. Response is tiered, with ports, terminals, and operators handling smaller spills and the Coast Guard coordinating major incidents. Can oil spill detection systems be integrated with SCADA and automation platforms? Yes. Modern oil spill detection systems can be integrated with SCADA, telemetry, and control platforms to generate alarms, send notifications, trigger equipment shutdowns, close intake gates, and maintain event logs for regulatory reporting and audit purposes.

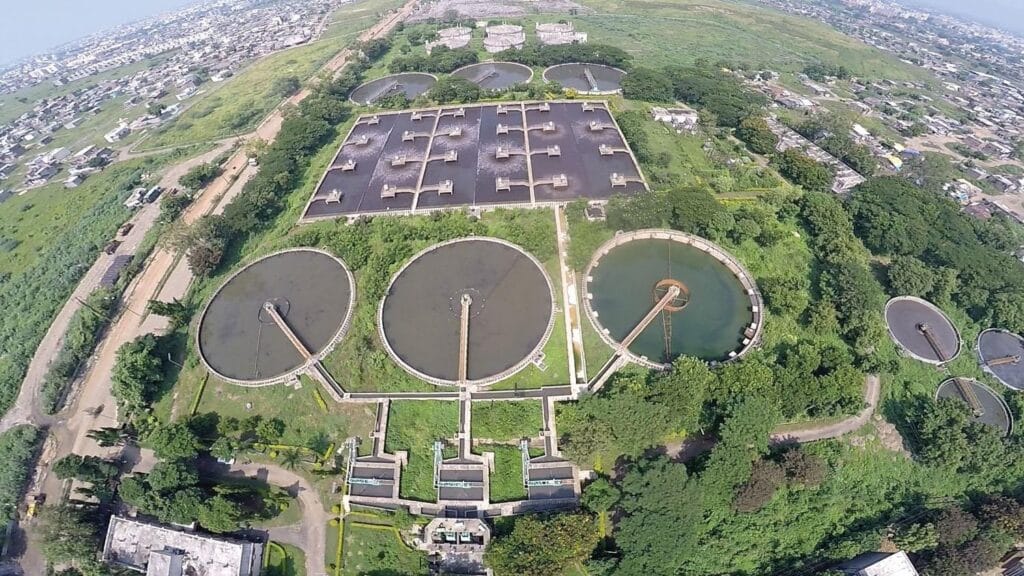

Municipal water utilities today face a growing challenge: delivering safe drinking water while reducing chemical dependency, operational risk, and environmental impact. As cities expand and source water quality becomes more variable, utilities are moving beyond conventional chlorination alone and adopting advanced disinfection technologies that provide faster and more reliable pathogen control. One technology gaining widespread adoption is UV disinfection. By using ultraviolet light to inactivate harmful microorganisms without adding chemicals to the water, UV systems help utilities strengthen microbial protection, reduce disinfection by-products, and support regulatory compliance. Today, many of the world’s leading treatment facilities use UV as a critical barrier within a multi-stage treatment process. Why Conventional Chemical Disinfection Alone Has Limitations Chlorination continues to play an important role in water treatment because it provides residual protection throughout the distribution network. However, relying solely on chemical disinfection can present several operational and water-quality challenges.  Certain chlorine resistant pathogens such as Cryptosporidium and Giardia can survive standard chlorination doses. Chemical disinfection can also produce unwanted disinfection byproducts like trihalomethanes (THMs) and haloacetic acids (HAAs), especially when source water contains high organic content. In addition, chemical dosing systems require continuous handling, storage, and monitoring of hazardous substances. Variations in pH, turbidity, and organic load can also affect disinfection efficiency, making process control more complex for utilities operating large scale treatment networks. UV disinfection addresses many of these limitations by providing rapid microbial inactivation without altering the chemical composition of water. What is UV Disinfection? UV disinfection uses ultraviolet light, typically at a wavelength of 254 nanometres, to deactivate microorganisms by damaging their DNA and RNA structures. Once exposed to sufficient UV energy, bacteria, viruses, and protozoa lose their ability to reproduce and infect consumers. Unlike chemical disinfectants, UV treatment does not introduce additives into the water and does not generate harmful residual by-products under normal operating conditions.  Modern municipal UV systems are commonly installed after filtration processes and before final water distribution. In many treatment plants, UV acts as a primary disinfection barrier while chlorine provides secondary residual protection within the pipeline network. Core Components of a Municipal UV System A typical UV disinfection installation consists of several integrated components working together for controlled and validated pathogen inactivation. UV Reactors Water flows through stainless-steel reactor chambers containing multiple UV lamps arranged to maximise exposure throughout the flow path. Modern reactor designs are engineered to deliver consistent UV dose distribution even under varying flow conditions. UV Lamps Municipal systems typically use either Low-Pressure High-Output (LPHO) lamps or Medium-Pressure lamps. LPHO systems are known for their energy efficiency and longer operating life, while Medium-Pressure systems can deliver higher intensity output within a more compact footprint.  Quartz Sleeves UV lamps are enclosed within quartz sleeves that isolate electrical components from water while allowing maximum UV transmission. Maintaining sleeve cleanliness is essential for long-term performance.  UV Intensity Sensors Online sensors continuously monitor UV dose intensity to verify that disinfection performance remains within validated operating conditions. Control and Automation Systems Modern UV installations are closely integrated with PLC, SCADA, and telemetry platforms. Operators can monitor lamp performance, UV intensity, flow rates, alarms, and maintenance schedules in real time, enabling faster response to operational issues and improved process control. How UV Disinfection Works After coagulation, sedimentation, and filtration, water enters the UV reactor, where UV-C light damages microbial DNA, preventing replication. UV treatment effectiveness depends on: UV intensity Exposure time Water transmittance Modern UV systems automatically adjust lamp output based on flow and water quality, maintaining reliable disinfection while reducing energy use. Many municipal systems are validated to meet regulatory pathogen reduction requirements across a range of operating conditions, providing an added layer of treatment assurance. Key Advantages of UV Disinfection Effective Against Chlorine Resistant Pathogens UV systems are highly effective against Cryptosporidium and Giardia, which are difficult to fully control through chlorination alone. This makes UV particularly valuable for surface water treatment plants exposed to biological contamination risk. No Chemical Byproducts Since UV treatment does not involve oxidation reactions like chlorine, it significantly reduces the formation of THMs and HAAs, helping utilities meet stricter drinking water standards. Rapid Disinfection Microbial inactivation occurs within seconds as water passes through the reactor, enabling high throughput operation without large contact tanks. Improved Safety UV systems reduce dependence on hazardous chemical storage and handling, lowering operational risk for plant personnel. Compact Installation Compared to large chemical contact basins, UV reactors require relatively small installation footprints, making them suitable for both new plants and retrofit projects. Operational Challenges and Design Considerations Although UV disinfection offers significant advantages, system performance depends heavily on proper design and maintenance. Water Quality Dependence High turbidity, suspended solids, iron, manganese, and organic matter can reduce UV transmittance and shield microorganisms from exposure. Effective pretreatment is therefore essential. Lamp Fouling Mineral scaling and biofilm accumulation on quartz sleeves reduce UV transmission efficiency over time. Automatic mechanical or chemical cleaning systems are commonly used to maintain performance. Energy Consumption UV systems require continuous electrical power for lamp operation. Energy optimization strategies include variable lamp output control and reactor staging based on flow demand. No Residual Protection Unlike chlorine, UV leaves no residual disinfectant within the distribution network. Most municipal systems therefore use UV alongside low level chlorination or chloramination for downstream protection. Applications in Municipal Water Treatment UV disinfection is widely deployed across multiple municipal treatment scenarios: Surface water treatment plants Groundwater treatment facilities Recycled water and wastewater reuse projects Desalination plants Rural and decentralized drinking water systems Smart water infrastructure upgrades Large scale utilities increasingly integrate UV performance monitoring into centralized SCADA systems for real time operational visibility and compliance reporting. Industry Evolution Modern UV systems are becoming more intelligent and energy efficient through digital monitoring and automation. Advanced reactors now use real time UV transmittance compensation, predictive maintenance analytics, and remote performance diagnostics. Utilities are also integrating UV systems into broader smart water management platforms, combining water quality monitoring, hydraulic analytics, and automated reporting into unified operational dashboards. With tightening regulatory requirements and growing emphasis

In many Indian utilities, treated water quality is still monitored through periodic sampling and laboratory culture testing. Under BIS IS 10500:2012, neither E. coli nor total coliform organisms should be detectable in a 100 mL drinking water sample. When contamination is detected, utilities are expected to investigate and repeat sampling immediately. The operational challenge is response time. Conventional microbiological testing depends on bacterial culture growth, which typically requires 24 to 48 hours before results are available. By the time contamination is confirmed, the affected water may already have moved through the distribution network. As utilities move toward smarter water infrastructure, high-frequency automated microbial monitoring is emerging as an operational early-warning layer that improves visibility between laboratory sampling intervals. Why Periodic Lab Testing Falls Short Contamination events in distribution systems are often intermittent rather than constant. Short-duration events may occur due to: pressure transients, pipe leakage or intrusion, loss of chlorine residual, biofilm disturbance, maintenance activity, or localized network failures. A grab sample only reflects water quality at a single location and time. Conditions elsewhere in the network, or even a few hours later, may be very different. Because laboratory culture methods require incubation time, corrective actions are often reactive rather than preventive. Short-duration contamination events may remain undetected between scheduled sampling intervals. How Real-Time Monitoring Works Real-time monitoring takes a different route. Instead of waiting for whole bacteria to grow into colonies, it measures the enzymes they produce. Total coliforms carry β-galactosidase, and E. coli carries β-glucuronidase. Automated enzymatic analysers add fluorogenic reagents that react with these enzymes and generate a measurable fluorescence response associated with microbial contamination. An automated analyser runs this on site: it draws the sample, adds the reagent, incubates briefly, and reads the fluorescence. Systems such as ColiMinder can provide automated microbiological indication results in approximately 15 minutes and can support up to 56 automated measurements per day, with higher-frequency configurations available. This approach creates a near real-time operational visibility layer for drinking water systems. Core Technologies in a Deployment A working monitoring point usually combines a few layers: Enzymatic activity analysers that measure β-glucuronidase and β-galactosidase activity to flag faecal and coliform contamination quickly. ColiMinder is one such system, deployed by Aaxis Nano as part of its microbial monitoring offering. It operates fully automated on-site, drawing the sample, adding the reagent, and reading the fluorescence, making it suitable for continuous unattended deployment at treatment plant outlets, reservoir monitoring stations, and distribution network entry points. Supporting sensors for free chlorine, turbidity, pH, and conductivity, which add context, since a loss of disinfectant or a turbidity spike can signal conditions where bacteria may follow. Data loggers and RTUs that timestamp readings and send them over 4G/LTE, NB-IoT, or LoRaWAN. Cloud dashboards that track trends, apply threshold-based alerting, and generate operational notifications. Operational Benefits The payoff is speed. When detection falls from a day or two to about a quarter of an hour, an operator can isolate, flush, or re-chlorinate a section before bad water spreads. A continuous reading also helps tune disinfectant dosing, keeping chlorine neither unsafely low nor wastefully high. If something goes wrong, live data shows which zone is affected, keeping a boil-water advisory targeted rather than city-wide. High-frequency monitoring also supports monitoring documentation workflows and operational visibility.  Deployment Locations High-frequency microbial monitoring is commonly deployed at: Treatment plant outlets Reservoir inlets and outlets District metered area (DMA) entry points Post-disinfection verification stations Recycled water systems Pharmaceutical facilities Hospital water systems These locations provide earlier visibility into potential contamination events before broader network exposure occurs. How Aaxis Nano Supports Implementation Aaxis Nano supports utilities and industrial operators through telemetry integration, SCADA connectivity, and deployment of partner instrumentation platforms including ColiMinder, S::CAN, and ATI water quality monitoring systems.  Through its partnership with ColiMinder, it deploys automated enzymatic analysers that measure E. coli and coliform activity on site in about 15 minutes, providing higher-frequency operational visibility between laboratory sampling intervals. These analysers integrate with supporting instrumentation from partners such as S::can and ATi, with all data feeding into Aaxis Nano’s Telepro platform for  visualization, alerting, and SCADA integration. What Aaxis Nano’s Platform Delivers Aaxis Nano Hydrology Solutions supports utilities and industrial operators through telemetry integration, SCADA connectivity, and deployment of partner instrumentation platforms including ColiMinder, S::CAN, and ATI water quality monitoring systems. The company’s capabilities include: remote monitoring infrastructure, telemetry integration, cloud visualization, alarm management, dashboard configuration, SCADA integration, and operational monitoring support. By combining online instrumentation with centralized operational visibility, utilities can improve awareness of changing water quality conditions across distributed systems. FAQs Q1. How does an enzymatic analyser detect E. coli so quickly? E. coli produces the enzyme β-glucuronidase. Automated analysers use fluorogenic reagents that react with this enzyme and generate a measurable fluorescence signal associated with microbial contamination. Because the method measures enzymatic activity rather than waiting for bacterial colony growth, results can be generated much faster than traditional culture-based testing. Q2. Where should a utility install these instruments first? Typical starting points include: treatment plant outlets reservoir monitoring points DMA entry locations and post-disinfection verification stations Combining microbial monitoring with chlorine and turbidity monitoring improves operational context and incident detection capability
