TRACER SYSTEM TQ-F

MOBILE DISCHARGE MEASUREMENT SYSTEM FOR TURBULENT RIVERS WITH UNKNOWN CROSS-SECTION PROFILE – FLUORESCENCE TRACER

The discharge measurement is performed by using the well-established tracer-dilution method which is especially suitable for high volumes of water. The system can be deployed in turbulent rivers, creeks, or waters for which data regarding the cross-section profile are not available or unknown. It is used as a fluorescent material as a tracer. After the insertion of a known amount of tracer material two optical fluorescence probes automatically determine the discharge. This way high plausibility and accurate results can be guaranteed. New TQ-COMMANDER V2 software is available! More details

FEATURES AND ADVANTAGES

  • Simple, mobile discharge measurement
  • Reliable results even without knowledge and independent of the cross-section profile
  • Suitable for fast-flowing, turbulent waters or where access is limited
  • Applied especially with water amounts of several m³/s
  • Environmentally friendly, harmless for water
  • Discharge values are immediately available
  • Easy transmission of measurement data from the sensor to receiving device via Bluetooth
  • Convenient receiving of data on a laptop
  • Real-time visualization of measurement data
  • User-friendly guidance through the measurement by the included software TQ-Commander
  • Simultaneous measurement with up to four probes
  • Tracer material: fluorescence (fluorescein or similar)
  • Probe type: optical fluorescence probe
  • Compact and convenient: complete equipment securely packed in two cases

Description

FIELDS OF APPLICATION

The TQ-Tracer system is especially suitable for fast-flowing, turbulent waters with complex cross-sections, for example, mountain streams, small brooks, tributaries, or even fish passes. Equally, the TQ-tracer works very well in shallow rivers where most other instruments fail to get reliable results or cannot be used anymore at all.

The TQ is used particularly in hydrometry as well as by consulting engineers, civil engineers, and hydropower plant operators monitoring the discharge, for control measurements, or for project evaluations.



IMPLEMENTATION

The tracer dilution method can be applied for discharge measurement in all waters in which a thorough mixing of the tracer takes place. High turbulences, alternating cross sections, and stones promote the mixing process and therefore are helpful. For particularly turbulent waters and very high flow velocities, there is a TQ-version available where the sensitive probes are protected with a robust reinforcement. The user-friendly software TQ-Commander leads comfortably through the measurement and provides a full measuring report after the measurement.



TECHNICAL DETAILS TQ-F

GENERAL
  • Measuring principle tracer dilution method with instantaneous feed
  • Application of all discharge volumes

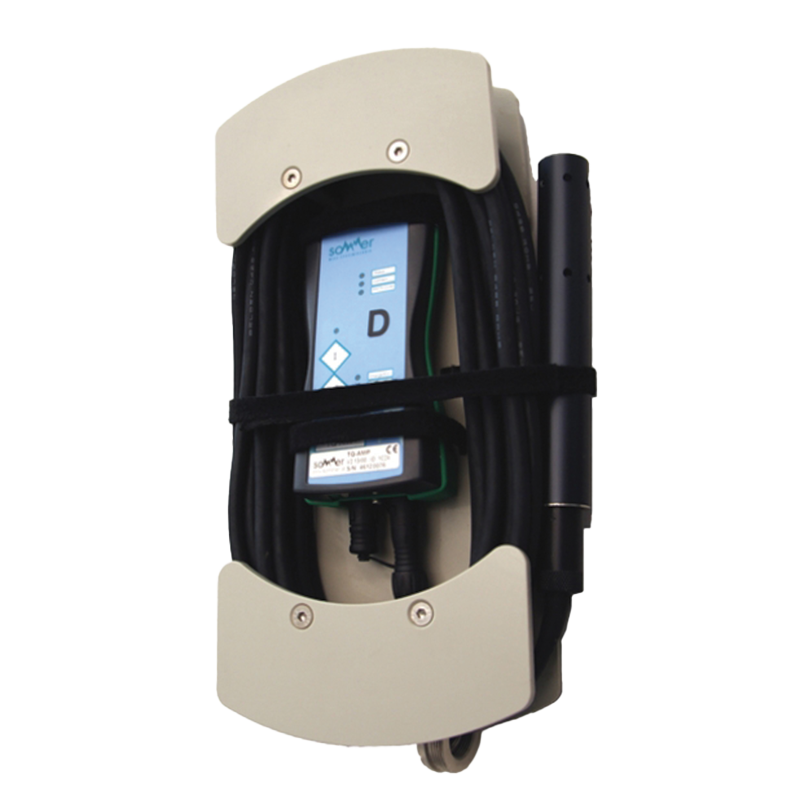

TQ-AMP (MEASUREMENT DEVICE WITH BLUETOOTH TRANSMISSION)

  • Memory capacity none (data stored in the receiving device)
  • Transmission interval 1 second
  • Data transfer Bluetooth class 1 (transmission range up to 100m)
  • Operating temperature -20 … +60 °C
  • Protection IP66
  • Energy supply 3x 1.5 V batteries, size AA or 3x 1.5 V / 2500 mAh NiMH batteries, size AA
  • Operation time 25 hrs (with 3x 2500 mAh batteries)
  • Recharging time approx. 10 hrs



PROBES

  • Probe type fluorescence probe
  • Measurement range Fluorescein/Rhodamine: 0 … 50 μg/l (ppb)
  • Resolution 0.05 μg/l (ppb)
  • Operating temperature 0 … +50 °C
  • (Further types of probes for different tracer substances are available upon request.)



ACCESSORIES INCLUDED

  • Pipette 500 μl
  • Jars bottle for calibration solution, measuring cup stainless steel 750 ml, measuring cup 500 ml, volumetric flask 500 ml
  • Other USB memory sticks (software and documentation), USB Bluetooth adapters, rechargers, protection- and weighting armor
  • TQ-Commander (software) PC-Version Windows XP, Windows Vista, or Windows 7 up to 10
