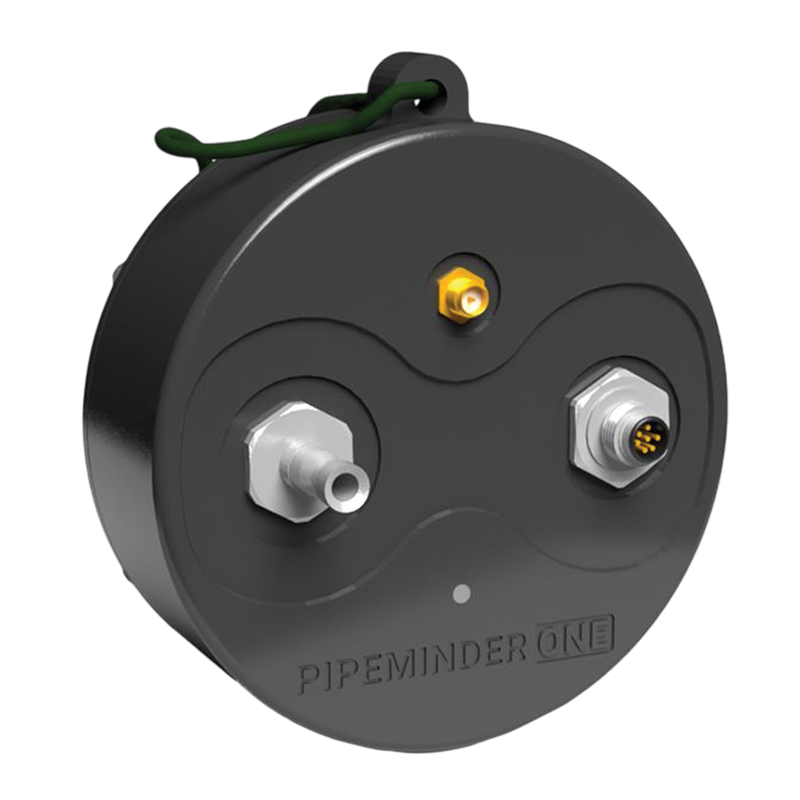

PIPEMINDER ONE (STANDARD VERSION)
Improve the way you monitor and manage your network with precise, high-frequency pressure logging, transient event detection, real-time burst notifications and location tracking, high- and low-pressure warnings, and compatibility with flow and water quality monitoring.
Easy-to-use APIs and system integrations allow pressure data to be analysed alongside third-party information and SCADA events, giving you a more complete understanding of network conditions. Advanced network management and analysis capabilities help control pressure-related issues, minimise leakage, and reduce the likelihood of future leaks quickly and efficiently.
- High & Low Pressure Alerts – Get immediate notifications whenever pressure exceeds or drops below predefined limits. During these events, reporting frequency can also be increased to capture more detailed information when required.
- Reduce Leakage with Data-Based Network Management – Pressure measurements captured at 128 samples per second provide detailed transient analysis, enabling waveform pattern identification, event source triangulation, and intelligent event notifications.
- Identify & Pinpoint Breaks and Critical Pressure Events – Receive immediate notifications through email and SMS, while alarm information can also be transferred to your operational systems for rapid awareness and response.
- Integrated Water Quality & Pressure Monitoring – Data from connected water quality sensors can be aligned with pressure measurements and recorded events, offering a clearer understanding of potentially damaging conditions within the network.
01
Distribution Network Monitoring
02
Industrial Process
- Pressure Transient Detection The device samples pressure at a high rate (128 times per second) to detect and analyze sudden, potentially damaging, pressure spikes or drops (transients).
- Burst Alarming and Locating It provides immediate email and SMS alerts for burst events, allowing for rapid response to minimize damage and water loss. When multiple units are used, the location of the burst can be triangulated.
- Network Calming and Leakage Reduction By understanding and mitigating pressure transients, the device helps “calm” the network, which reduces pipeline fatigue, lowers break rates, and extends the asset life of the water infrastructure.
- High/Low Pressure Alarming Users can set alarms for when pressure values go outside desired limits, ensuring consistent service delivery and preventing potential issues.
- Performance Monitoring It can be used for general distribution network monitoring to ensure system health, reduce non-revenue water loss, and ensure regulatory compliance.
- Integrated Data Analysis The device can integrate data from third-party sources, such as flow meters and water quality sensors, via the companion RADAR cloud data platform for a more comprehensive network view.
| Specification | Details |
|---|---|
| Operating Temperatures | 32°F to +150°F (expansion of freezing water below 32°F will damage sensor) |
| Network / SIM | 4G/3G/2G integrated SIM card |
| Pressure Sensor | 0–300 psi absolute range, 128S/s, ±0.25% accuracy |
| Connection | 21KA male connection with ¼” NPT adapter (optional coiled hose available) |
| Materials | Acetal housing, 316L stainless steel pressure port, IP68 rated |
| Antenna | 4G SMA connection (various external cellular antennas available) |
| Battery / Power | Choice of rechargeable / single use batteries (mains power / solar adaptors available) |
| GPS / Clock | GPS time & location synchronisation on deployment (continued clock synchronisation over cellular network) |
| Certifications | EN, CE, FCC |
