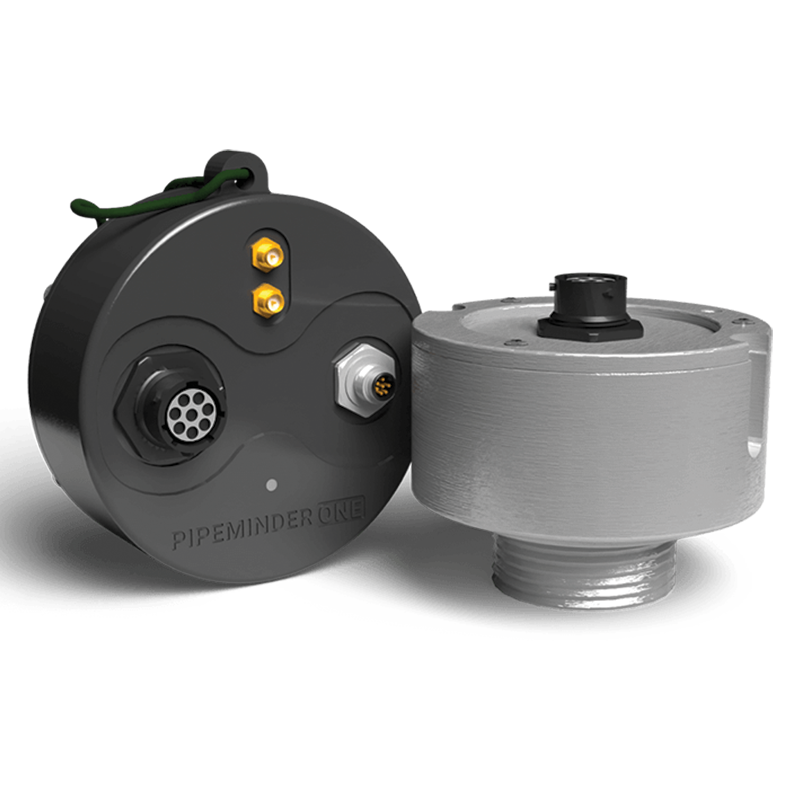

PIPEMINDER ONE (ACOUSTIC SENSOR VERSION)
High-resolution pressure monitoring delivers essential burst alerts across pipelines, along with asset performance data and notifications that help prevent failures and extend asset lifespan.
Combines acoustic and pressure monitoring to enable precise leak detection and detailed pressure analysis. Two effective approaches to minimise non-revenue water loss. One integrated system.
- Continuous & Precise Leak Detection – Automated leak detection alarms pinpoint the area of concern by analysing continuous acoustic correlations captured through the integrated hydrophone.
- Reduce Leaks with Data-Driven Network Management – High-resolution pressure data recorded at 128 samples per second provides intelligent pressure transient analysis, including pressure waveform classification, event source triangulation, and intelligent event alerts.
- Detect & Locate Breaks and Critical Pressure Events – Instant email and SMS notifications, along with alarm exports to operational platforms, keep you informed about critical network events.
- Compact Design for Easy Installation – The compact form factor enables flexible installation within existing hydrants and chambers.
01
Distribution Network Monitoring
02
Industrial Process
| Specification | Details |
|---|---|
| Operating Temperatures | -20°C to +65°C (expansion of freezing water below 0°C will damage sensor) |
| Network / SIM | 4G/3G/2G integrated SIM card |
| Pressure Sensor | External, 0-20 bar absolute range, 128S/s, ±0.25% accuracy |
| Connection | 1½” BSP parallel thread connection, adaptors available (common adaptor sizes: 1½” BSP parallel / 1½” BSP taper / 2½” BSP parallel) |
| Materials | Acetal housing, 316L stainless steel sensor head, IP68 rated |
| Antenna | 4G SMA connection, GPS SMA connection (various external celluar and GPS antennas available) |
| Battery / Power | Choice of rechargeable / single use batteries (mains power / solar adaptors available) |
| GPS / Clock | Regular GPS time & location synchronisation (continued GPS signal required for acoustic collections) |
| Certifications | EN, CE, FCC |
