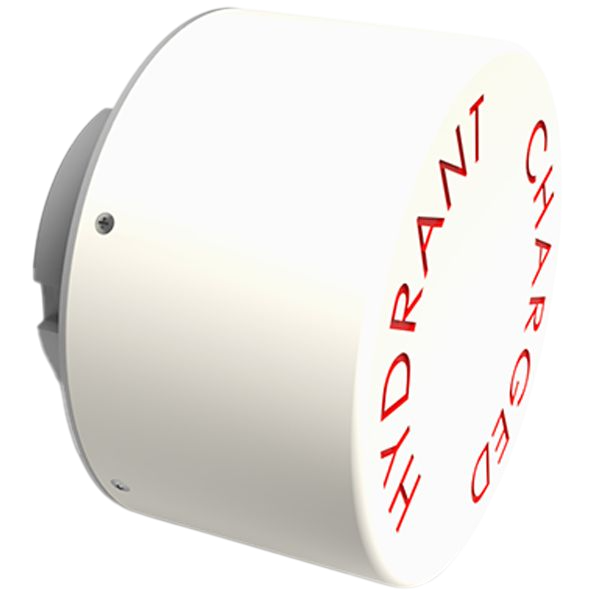

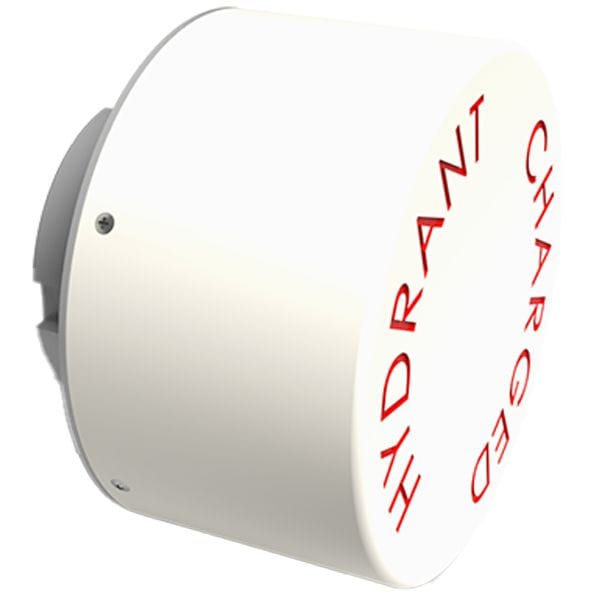

PIPEMINDER ONE (HYDRANT SENSOR VERSION)
High-performance pressure and data logging enables pressure transient and burst detection while providing valuable insights for effective network management.
- Designed for Secure, Direct Hydrant Installation – Built for direct hydrant mounting, the compact and secure IP68-rated enclosure with internal rechargeable batteries enables quick, flexible, and dependable deployment.
- High-Resolution Pressure & Accurate Timing – PIPEMINDER-ONE Hydrant features a highly accurate 20 bar pressure sensor with a sampling rate of 128 times per second, combined with precise network timestamping for highly reliable data accuracy.
- Pressure Waveform Classification – Automatically analyse and group transient waveforms with similar shapes, making it easier to differentiate significant or unusual events from normal network activity.
- Network Monitoring – Combine imported water quality information with pressure monitoring data to gain a complete view of the water distribution network and detect potentially harmful contamination events.
01
Distribution Network Monitoring
| Specification | Details |
|---|---|
| Operating Temperatures | 32°F to +150°F (expansion of freezing water below 32°F will damage sensor) |
| Network / SIM | 4G/3G/2G integrated SIM card (optional standard size SIM card supported) |
| Pressure Sensor | 0–300 psi absolute range, 128S/s, ±0.25% accuracy |
| Connection | 2.5” NST (NH) female connection, direct hydrant port mounting |
| Materials | 316L stainless steel housing & pressure port, acetal cover, IP66 rated (nylon security cover included, 6.77in diameter x 5.78in height, 2lb) |
| Antenna | Integrated 4G antenna |
| Battery / Power | Integrated rechargeable LiFePo battery |
| GPS / Clock | GPS time & location synchronisation on deployment (continued clock synchronisation over cellular network) |
| Certifications | EN, CE, FCC |
