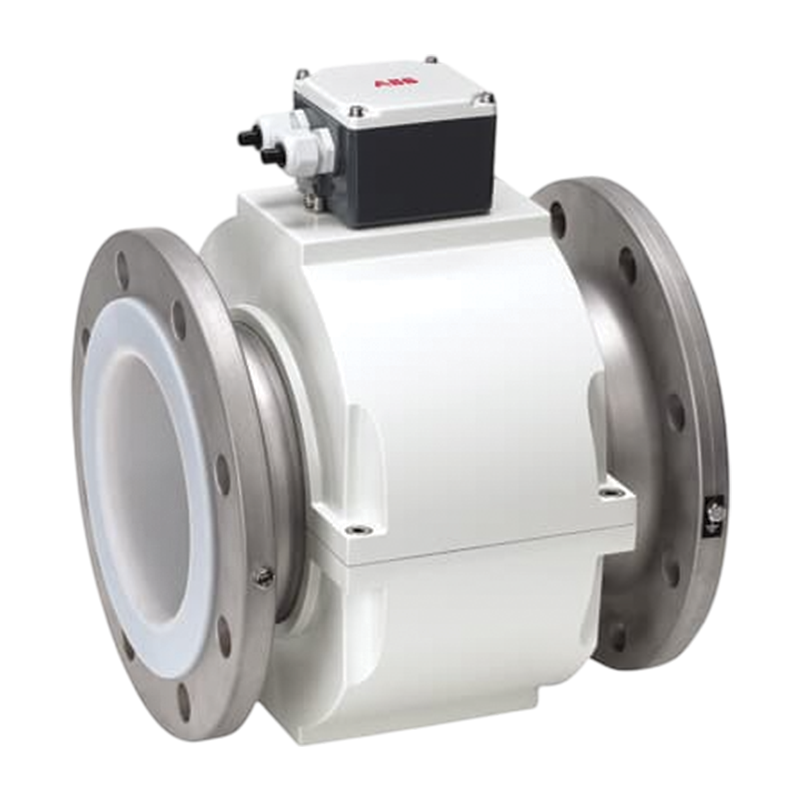

Electromagnetic Flowmeter FSM4000

FSM4000 is a robust flowmeter for heavy-duty applications. It masters critical applications and conserves valuable resources with highly accurate measurements of process parameters in a wide range of industries.

Overview

The design of the flowmeter offers a wide range of industry-specific liners, electrodes, and sizes to meet the needs. The powerful transmitter is easy to use and provides the most stable signal output. Its measurement performance is unsurpassed in applications with high contents of solids, high content of pulp stock, pulsating flows, or other noise.



Description

Features

General specifications:

  • Nominal diameter
    – DN 3 to 1000 (1/10 to 40 in.)
  • Nominal pressure
    – PN 10 to 40
    – ASME CL150, 300
  • Process connection
    – Flanges in accordance with DIN / EN, ASME
  • Liner material
    – PFA, PTFE, hard rubber, soft rubber, ceramic carbide
  • Communication
    – HART protocol
    – Optional PROFIBUS PA, FOUNDATION Fieldbus
