- Soil flux studies: Ideal for measuring gas exchange between soil and atmosphere in the field.
- Greenhouse gas monitoring: Simultaneously measures CH₄ and CO₂ on-site.
- Natural gas leak detection: High-sensitivity detection, over 1,000× more sensitive than conventional methods.
- Compliance monitoring: Supports adherence to air quality regulations.
- Air quality studies: Suitable for general air quality measurements in various environments.
- Field sampling: Operates across a wide sample temperature range of −40 to 50 °C.

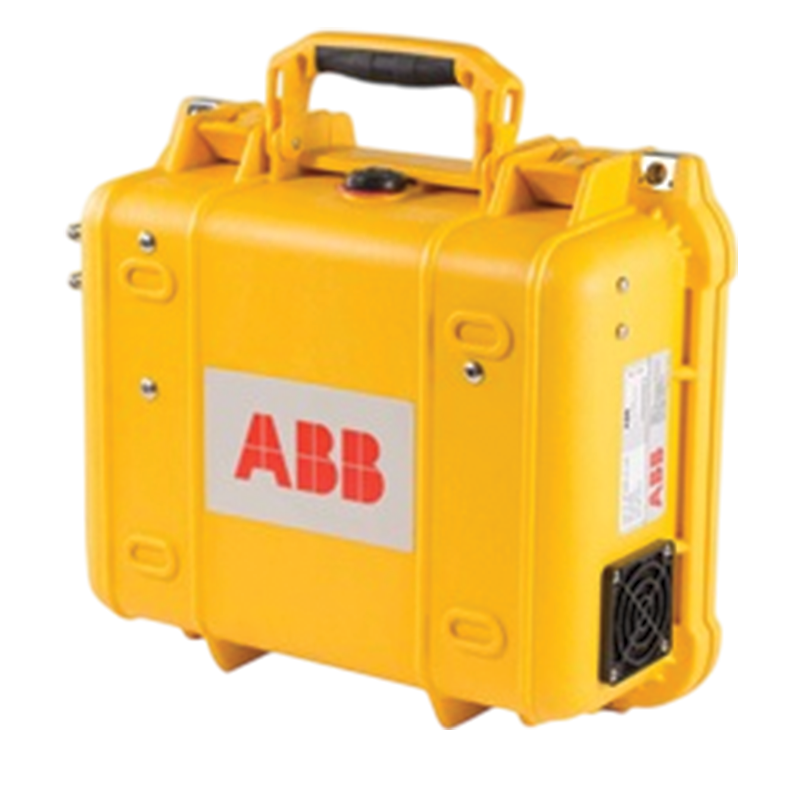

Microportable gas analyzers GLA131 Series
Sensitive, precise, accurate, highly linear (wide dynamic range) and fast.
Pre-calibrated analyzer in extremely compact crushproof enclosure weighing less than 6 kg. Operates directly on AC or DC power. Battery recharges when analyzer connected to AC. System includes all software for analysis and an internal vacuum pump for less than 0.4 second gas flow response.
The GLA131-GGA starts recording data within 20 seconds after power on so users do not have to wait for a long warm-up period for the system to thermally equilibrate. ABB’s patented OA-ICOS technology, a fourth-generation cavity enhanced absorption technique, has many advantages overolder, conventional and delicate cavity ringdown spectroscopy and direct absorption techniques. ABB analyzers are easy to operate and robust, thus providing users with higher performance and reliability at minimal operating costs.
The GLA131-GGA analyzer has an internal computer that can store data practically indefinitely on an SD card and send real time data to a tablet, smartphone or other WiFi device. The analyzer includes control and analysis software.
| Operating Temperatures | 0°C to +65°C (expansion of freezing water below 0°C will damage sensor) |
| Network / SIM | 4G/3G/2G integrated SIM card |
| Pressure Sensor | 0-20 bar absolute range, 128S/s, ±0.25% accuracy |
| Connection | 21KA male connection, coiled hose available (optional 21KA hydrant cap / alternate connections available) |
| Materials | Acetal housing, 316L stainless steel pressure port, IP68 rated |
| Antenna | 4G SMA connection (various external celluar antennas available) |
| Battery / Power | Choice of rechargeable / single use batteries (mains power / solar adaptors available) |
| GPS / Clock | GPS time & location synchronisation on deployment (continued clock synchronisation over cellular network) |
| Certifications | EN, CE, FCC |
Sampling conditions:
Sample temperature: −40 to 50 °C
Operating temperature: 5 to 45 °C
Ambient humidity: 0–99.9% RH, non-condensing
Flow response time: <0.4 s (1/e)
Data measurement rate: 0.01–10 Hz (user selectable)
Data outputs: WiFi, Ethernet, USB, MIU (8 ports), Serial (RS-232)
Power requirements:
10–30 VDC or 110/240 VAC
Max consumption: 35 W (two-laser systems)
Power supply/charger included: 120 W
Dimensions: 12 × 34 × 29.5 cm (H × W × D) / 6 × 13.4 × 11.6 in
Weight: 6.1 kg (13.5 lbs) with internal battery
