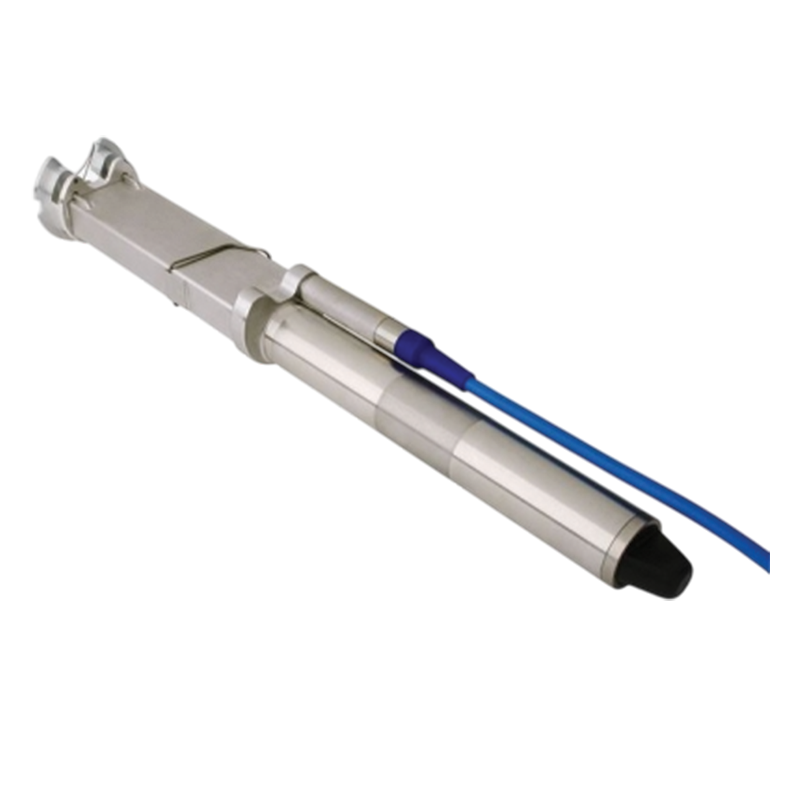

Level Data Logger PD-3/4/5

DATA LOGGER WITH PROBES FOR GROUNDWATER MONITORING

Level Data Loggers are the ideal measurement devices for reliable measuring of water level and temperature, conductivity or pH-value, or further parameters in groundwater, at springs or lakes. Appropriately to the measuring requirements diverse loggers and probes can be supplied.

FEATURES AND ADVANTAGES

  • Measuring up to four different parameters
  • Compact, watertight housing, flood-proof, and suitable for long-term use in the field
  • Compensation for barometric fluctuations and temperature fluctuations as a standard
  • Data retrieval locally or by means of data transmission (only PD-5)
  • Convenient back-check measuring by use of an electric contact gauge without the need to dismantle the equipment
  • Energy supply for up to 10 years of operating time or 2,000,000 measurements
  • Universal range of application: level pipes, wells, open water, or measurement at the weir
  • Variable cable lengths are possible
  • The system at a good value for money level

Description

FIELDS OF APPLICATION

SOMMER level data loggers are considered to be the ideal measuring instruments in order to reliably record water levels in level pipes and wells. Moreover, the PD-product family is a useful tool for hydrography, and groundwater monitoring as well as for water resources management, applicable for measurements in open water, water reservoirs, or tanks where it builds a dependable tool for water management. Simple and cost-efficient parameters like water level, temperature, conductivity, etc. are recorded.



PD-MINI (MAX. 2 PARAMETERS)

Reliably measure water level and temperature. The PD-Mini is ideal for reliable monitoring of groundwater monitoring wells. It is an inexpensive solution to measure and record water level and temperature, even under extreme conditions such as intense heat/cold or high humidity. The pressure probe and the logger form a compact and rigid unit.



TECHNICAL DETAILS PD-MINI

  • Parameter water level up to 100 m;  temperature, -5°C to +70 °C
  • Resolution 0.02 mbar, < 0,1 °C
  • Memory 200’000 Measurements
  • Interface USB-radio 433MHz
  • Power supply D lithium cell batteries for 200.000 measurements or 10 years of operation
  • Measurement interval adjustable, 1 second to 99 days
  • Assembly in level pipe 1″ to 6″ pipes; from 3″ with fall protection rings (optional)
  • Material stainless steel housing V4a
  • Protection IP 68, permanently flood-proof up to 1 m hydrostatic head



PD-5 (MAX. 4 PARAMETERS AND WITH DATA TRANSMISSION)

High-end logger with data transmission – Hydrology at its highest level: With the opportunity to measure up to four parameters at the same time and built-in data transmission the PD-5 stands above all for its customer value. Using GPRS technology it delivers the collected data via the internet directly to the PC or a web server of the water management system.



TECHNICAL DETAILS PD-5

  • Parameters water level, temperature, conductivity, pH value, turbidity (optional)
  • Data transmission 2G oder 3G (via FTP/FTPS, SMS, E-mail)
  • Frequency 900 / 1800 MHz (standard); 850 / 1900 MHz (alternative)
  • Memory 4 MB for up to 190.000 measuring values
  • Interface RS-232
  • Sensor interface 1x RS-485 Modbus (optional 2x)
  • Power supply standard: 3 pcs. alkali-manganese battery size C – for approx. 2 years; alternative: 3 pcs. lithium battery size C – approx. 5 years with daily data transmission
  • Measuring interval adjustable, 1 second to 99 days
  • Dimensions Ø 49 mm x 380 mm – including battery compartment and antenna
  • Assembly in level pipe 2″ to 6″ pipes; from 3″ with fall protection rings (optional)
  • Material housing in high-grade stainless steel 1.4301 / high-quality synthetic (polyoxymethylene)-closure prohibits network shielding
  • Protection IP 68, permanently flood-proof up to 1.5 m hydrostatic head



TECHNICAL DETAILS FOR MEASURING PROBES

WATER PRESSURE PROBE (COMPATIBLE WITH PD-5)

  • Parameter water level: adjustable; up to 300 m hydrostatic head; temperature: 0 to +50 °C (expandable up to +70 °C)
  • Accuracy < 0.05 % of measuring range (water level); < 0.1 °C (temperature)
  • Dimensions Ø 22 mm x 120 mm
  • Material high-grade stainless steel 1.4571



MULTIPARAMETER PROBE (COMPATIBLE WITH PD-5)

  • Parameters water level: adjustable; up to 200 m hydrostatic head; temperature 0 to +50 °C (expandable up to +70 °C); conductivity: 0 to 200 mS/cm
  • Accuracy < 0.05 % of measuring range (water level); < 0.1 °C (temperature); < 0,5 % of measuring range; min. 0.002 mS/cm (conductivity)
  • Abmaße Ø 30 mm x 175 mm
  • Material high-grade stainless steel 1.4571 / POM



CONDUCTIVITY PROBE (COMPATIBLE WITH PD-5)

  • same as a multiparameter probe, except measuring water level



PH-VALUE PROBE (COMPATIBLE WITH PD-5)

  • Parameters pH-Value 2 to 14 pH; temperature 0 to +50 °C
  • Accuracy < 0.02 pH; < 0.1 °C (temperature)
  • Overlap max. 100 m hydrostatic head (= 10 bar)
  • Dimensions Ø 29.5 mm x 250 mm
  • Material high-grade stainless steel 1.4571



GENERAL TECHNICAL INFORMATION

  • Data format readout of data in ASCII or Excel format
  • The cable of probes special cable (Ø 6 mm): UV-resistant polyurethane-manteling with kevlar core and inside air hose for compensation of barometric fluctuations, no cartridges necessary; selectable cable length up to max. 300 m
  • The assembly device conveniently fits into level pipes with the possibility to do back-check measurements with an electric contact gauge without the need to disassemble the probes.
  • Accessories USB-transmission cable 5 m, user software, caps for level pipes with synthetic insert (sizes from 1 ¼” to 6″; from 3″ with fall protection rings – optional)
  • Temperature temperature-compensation 0 … +50 °C
  • Optional equipment probe to measure turbidity (applicable only for PD-5)
