DISCHARGE RADAR RQ-30 ADMS
WELL-PROVEN RQ-30 DISCHARGE MEASUREMENT WITH DATA LOGGER AND DATA TRANSMISSION IN COMPACT HOUSING

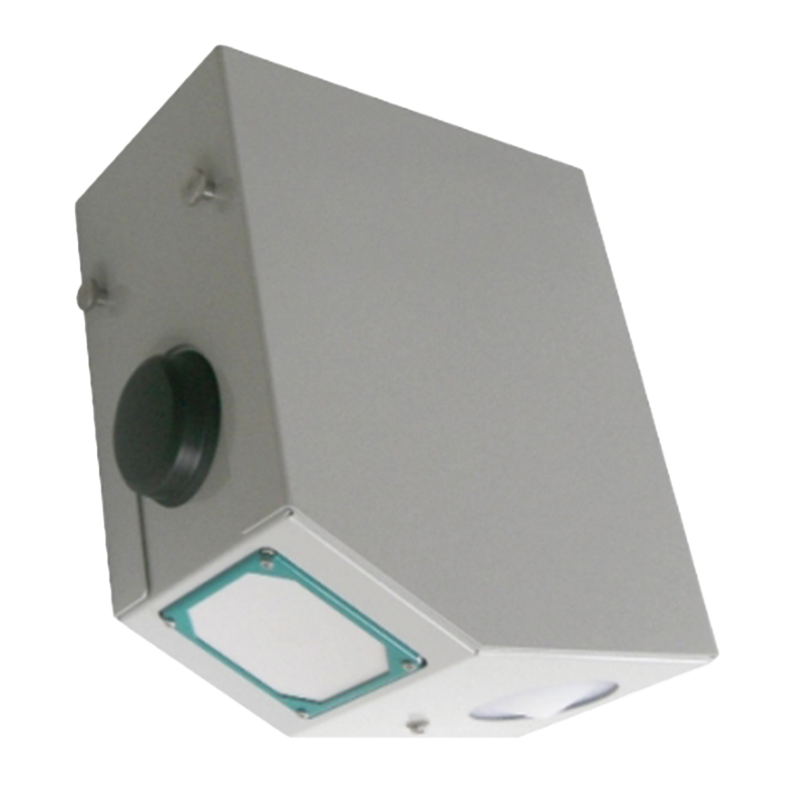

The RQ-30 ADMS is an all-in-one discharge measurement System. It contains the non-contact flow velocity and water level sensors of the RQ-30 and applies the same algorithms and model to calculate the discharge in the RQ-30 sensor.
The rechargeable batteries allow autonomous operation for several months and the integrated charge controller provides for an easy connection to a solar panel. The integrated data logger of the RQ-30 ADMS offers wireless 2-way data communication. The 2-way communication makes it possible to remotely access the sensor and data logger anytime from anywhere.
Notifications by E-mail and SMS are a standard feature of the RQ-30 ADMS. Optionally, the RQ-30 ADMS can be equipped with a SOMMER Time lapse camera for visual surveillance of the monitoring site.
- Non-Contact Measurement: Radar-based velocity and water level measurement from above the surface—avoids in-stream sensors, reducing debris damage and maintenance.
- All-in-One Design: Integrates water level and velocity sensors, data logger (MRL-7/8), and communication modem in a compact, IP66-rated, vandal-resistant aluminum housing.
- Autonomous Operation: Rechargeable 24 Ah/12 V batteries with integrated charge controller; can also connect to a solar panel for continuous power.
- Wireless Data Transmission: 2-way communication via 2G/3G/4G for remote access, configuration, and data retrieval.
- Data Logging & Alarms: Internal flash memory and SD card for extensive storage; alerts via email or SMS when user-defined limits are exceeded.
- Advanced Calculation: Discharge calculated using dynamic hydraulic models and cross-sectional profiles to derive mean velocity from surface velocity.
- AI & Diagnostics: Machine learning for environmental compensation, early error detection, and advanced velocity diagnostics including spectrum display.
- Optional Camera: Can include a SOMMER time-lapse camera for visual site monitoring.
- Hydrology & Environmental Monitoring: Supports long-term studies, flood forecasting, and regulatory reporting.
- Irrigation & Water Management: Monitors flow rates for efficient distribution in canals and channels.
- Flood Surveillance: Reliable, maintenance-free, flood-proof monitoring during high-water events.
- Spot Measurements: Suitable for temporary flow assessments at specific times.
Non-Contact Radar Water Monitoring – Technical Specifications
- Protection & Power
- Protection Class: IP66
- Battery: 24 Ah / 12 V
- Recommended Solar Panel: 20 W (mid-latitude)
- Power Consumption: Active 150 mA, Standby 3 mA
- Miscellaneous: Over-voltage, reverse power, and lightning protection
- Operating Temperature: –40 to 85°C (–40 to 185°F)
- Total Weight: 19.5 kg
Water Level Measurement
- Range: 0–15 m (standard), 0–35 m (extended)
- Resolution: 1 mm
- Accuracy: ±2 mm
- Radar Frequency: 26 GHz (K-Band)
- Radar Opening Angle: 10°
Velocity Measurement
- Range: 0.08–16 m/s (depending on flow)
- Accuracy: ±0.01 m/s or ±1% FS
- Resolution: 1 mm/s
- Direction Recognition: Yes
- Measurement Duration: 5–240 s
- Measurement Interval: 8 s – 5 h
- Radar Frequency: 24 GHz (K-Band)
- Radar Opening Angle: 12°
- Distance to Water Surface: 0.5–35 m
Data Transmission
- Networks: Quad-band EGSM 850/900/1800/1900 MHz
- Transmission Power: Class 4 (2 W) at 850/900 MHz; Class 1 (1 W) at 1800/1900 MHz
- 2G/3G/4G: Up to 14.4 kbps (transparent), 9.6 kbps (non-transparent)
- Data Transfer: FTP/HTTP server
- MDS Server: Includes database, station/user management, and web-based data visualization
Data Logger
- Storage: Up to 500,000 values
- Data Readout: Remote
