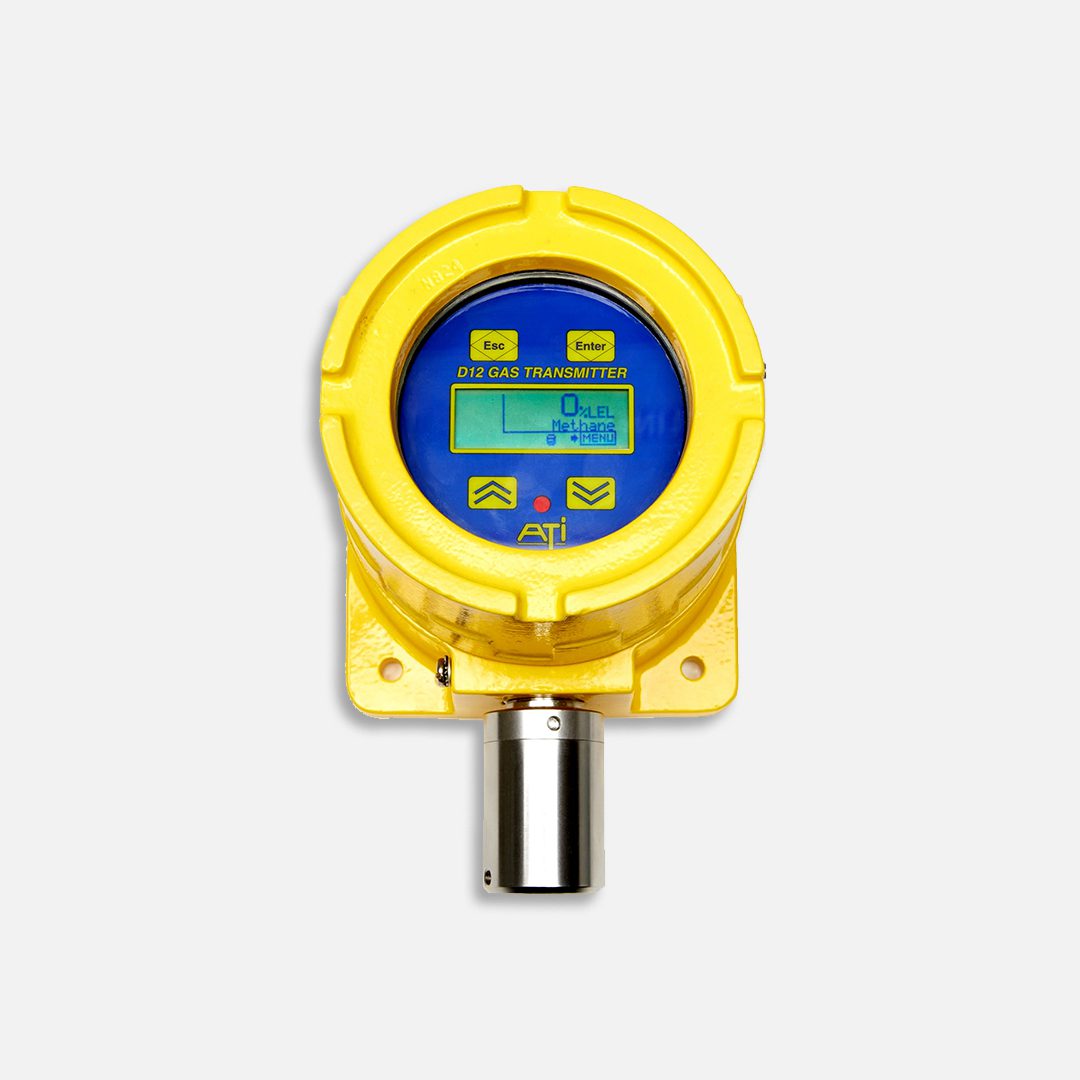

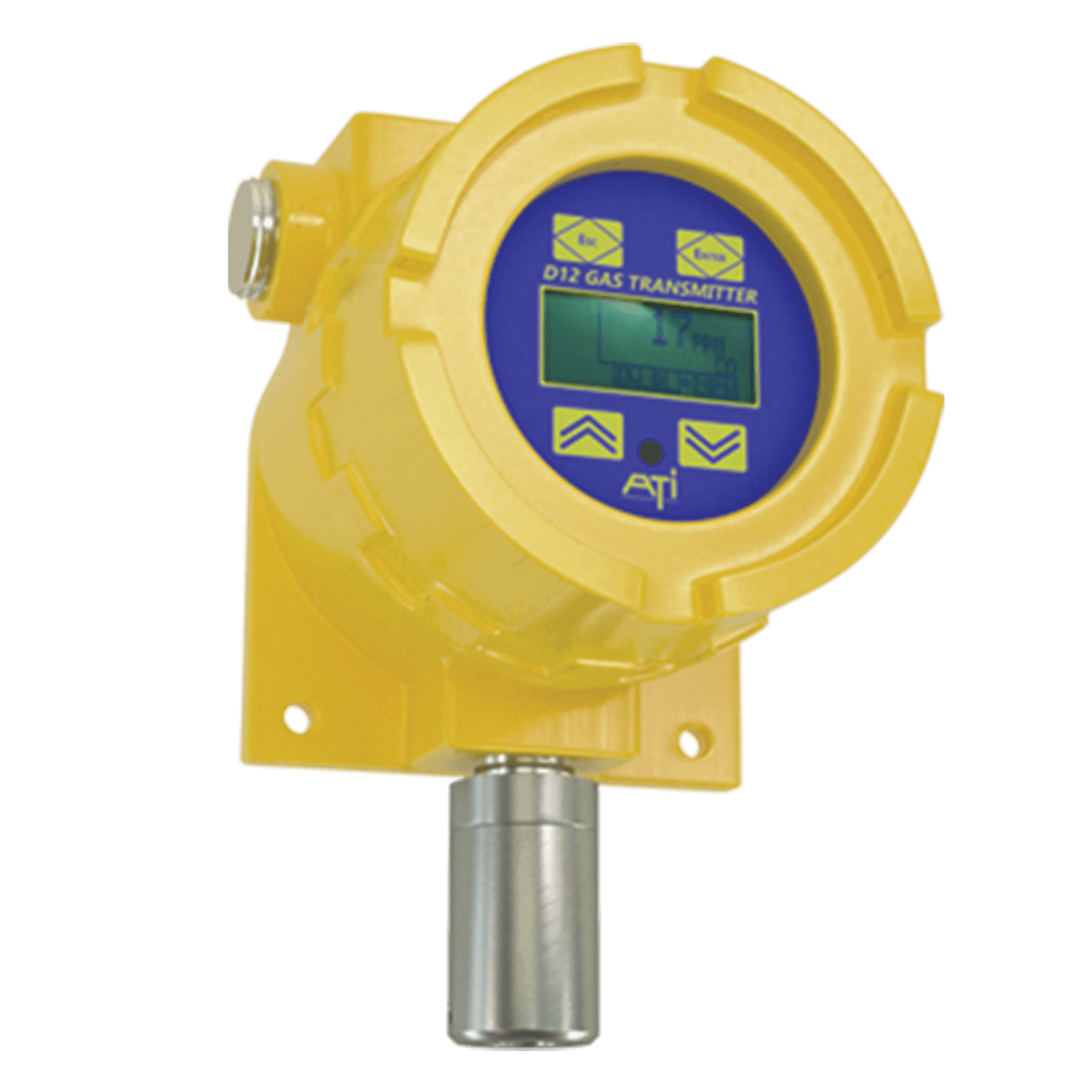

D12Ex-IR Infrared Gas Transmitter

ATi’s D12Ex-IR provides infrared gas detection capability in an explosion-proof package, suitable for almost any industrial environment.

Infrared combustible gas or CO2 detection

The D12Ex-IR is a versatile infrared system used primarily for the detection of combustible levels of methane or other hydrocarbons. It may also be used for monitoring CO2 levels, either in ppm or percent levels.

D12Ex-IR transmitters provide analog signals for remote interface and optional relays for local alarming functions. Two digital communication options, Modbus™ and Hart™, are also available. Certified for use in explosion hazard areas, the unit provides rapid and reliable detection of
hazardous conditions so that protective measures can be activated.

The D12Ex-IR is also available with an infrared sensor designed for CO2 measurements in ambient air or in pumped gas samples. Two carbon dioxide sensors may be specified, one for low range use and another for higher levels of CO2. The low range sensor may be scaled from 0-1000 PPM minimum to 0-5% maximum, while the high range sensor covers ranges from 0-10% minimum to 0-50% maximum.

Features & specification

  • Requires no routine calibration to ensure proper operation
  • Continuous self-test automatically indicates a fault, with fail to safe operation
  • A multi-layered filtering system protects optics from dirt and water ingress
  • Straight optical path eliminates the need for reflective surfaces, such as mirrors or beam splitters
  • Highly resistant to poisoning and etching
  • Standard 4 to 20 mA output (current source)
  • Explosion proof housing designed for harsh environments

Key benefits

  • Microprocessor-based intelligent gas detector
  • Uses infrared absorption technology
  • Ideally suited for harsh environments

Applications

The E12-15 IR Infrared High-Level Ammonia Gas Detector is available for a wide range of applications including:

  • Engine rooms
  • Emergency vents
