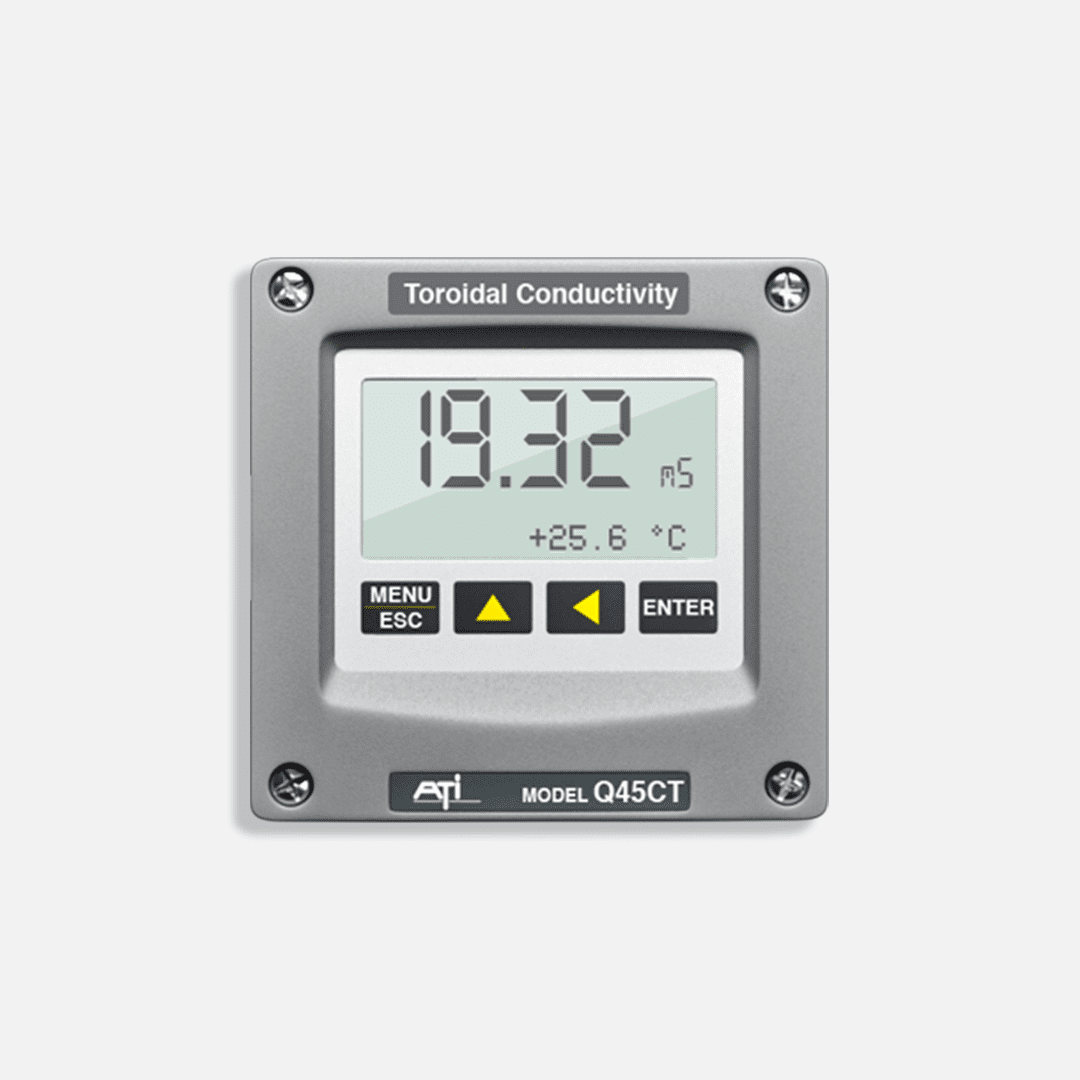

Q45CT Toroidal Conductivity Monitor

ATi’s Q45CT Toroidal Conductivity Transmitter is designed for on-line water quality monitoring of chemically aggressive process solutions.

Key benefits

  • Toroidal sensor immune to fouling
  • Submersion or in-line sensors

Features & specification

  • Measurement from 0-2000 uS to 0-2.000 S
  • Loop-powered or battery-operated
  • External 5-17 VDC version for solar applications
  • Large, easy-to-read LCD display
  • Total Dissolved Solids (TDS) on secondary display
  • Clear, menu-driven user interface
  • NEMA 4X (16-66) enclosure
  • Wall or pipe mounting bracket standard Build-in PID controller

Applications

  • Cooling Towers
  • Plating Baths
  • Acid & Base Dilution
  • Salt Water Aquariums
  • Brine Systems
  • Processing Wastewater
  • Streams & Rivers
  • Salt Water Intrusion
Categories: , Tag:

[vc_row][vc_column][manufactory_section_title title=”Non-contact Conductivity system”][/vc_column][/vc_row][vc_row][vc_column][manufactory_empty_space height=”40″ height_tablet=”40″ height_mobile=”40″][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]ATi’s Q45CT Toroidal Conductivity system is well suited for aggressive chemical processes, water applications that coat or foul traditional sensors and plating bath operations, where high current densities are present.

The sensor consists of two metallic ribbon coils that are fixed in place by the sensor jacket material. The drive coil is used to induce a current in the process solution. The second sensing coil is used to measure the current in the process solution, the magnitude of this current is proportional to the conductivity of the process solution.

The Q45CT is also available as a Concentration Monitor. The conductivity monitor comes with concentration / temperature tables for sodium hydroxide, potassium hydroxide, hydrochloric acid, nitric acid, and sulfuric acid. A user configurable table is also available for entering data points for a custom concentration curve.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”8288″ img_size=”large”][vc_column_text]

Toroidal sensor

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][manufactory_section_title title=”Downloads”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=” Q45CT Toroidal Conductivity Monitor – Product Literature” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FQ45CT-Toroidal-Conductivity-Monitor-Product-Literature.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=” Q45CT Toroidal Conductivity Monitor – Support Drawings” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FATIs-Q45CT-Toroidal-Conductivity-Monitor-Support-Drawings.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=”Q45CT External DC Power Toroidal Conductivity Transmitter” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FQ45CT-External-DC-Power-Toroidal-Conductivity-Transmitter.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=” Q45CT Portable Toroidal Conductivity Monitor-Analyzer” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FQ45CT-Portable-Toroidal-Conductivity-Monitor-Analyzer.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=” Q45CT Toroidal Conductivity Transmitter” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FQ45CT-2-Wire-Toroidal-Conductivity-Transmitter.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row][vc_row][vc_column][vc_btn title=” Q45CT Toroidal Conductivity Monitor – Typical Specs” style=”outline” color=”turquoise” i_type=”material” i_icon_material=”vc-material vc-material-picture_as_pdf” add_icon=”true” link=”url:https%3A%2F%2Fwww.analyticaltechnology.com%2Fwp-content%2Fuploads%2F2022%2F02%2FATI-Q45CT-Typical-Specs.pdf|target:_blank|rel:nofollow”][/vc_column][/vc_row]

Parameters

Conductivity
