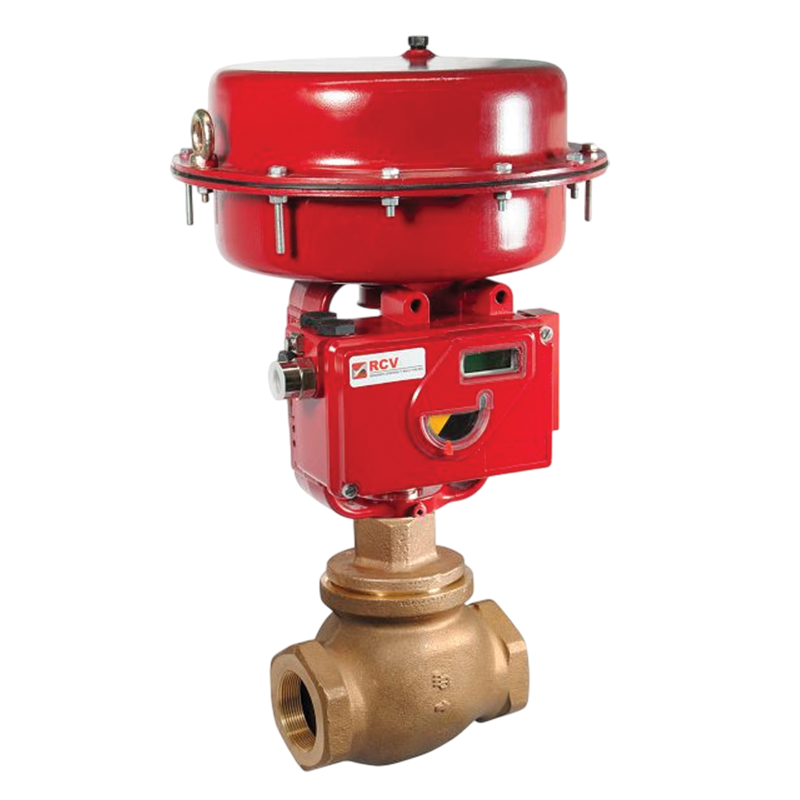

Actuator, Pneumatic (Type PA58)

The PA58 actuator is a pneumatic, multi-spring diaphragm actuator designed specifically to fit the RCV product line. The actuator can
be used with a wide range of valve solutions from larger process valves to high-pressure applications. The actuator is field reversible
(without additional parts) allowing flexibility within the field. This actuator is available air-to-open or air-to-close. The yoke and the actuator housings are made of carbon steel and coated with epoxy for corrosion resistance.

Get A Quote
Explore More Product
FUNCTION

The PA58 actuator normally operates in response to a 24 psi range. The signal range causes the valve to stroke a distance of
approximately 1 inch. Depending on the associated RCV valve, a positioner is needed if a shorter stroke is necessary.

STANDARD FEATURES
  • Field reversible: Can be reversed without additional parts.
  • Heavy-duty construction: Durable for demanding applications.
  • Corrosion resistance: Powder-coated finish and stainless steel external hardware.
  • Simple design: Easy to maintain.
OPTIONAL FEATURES
  • Signal range options: 3-27#, 6-30#
  • Stainless steel housing and yoke
  • Electroless nickel-plated housing and yoke
  • Diaphragm: Buna N and nylon
  • Manual handwheel for operation without air; can be used as a
    travel stop



  • Oil & Gas: Upstream operations including well testing, enhanced oil recovery, and separation processes needing precise flow control.
  • Chemical & Petroleum: Handles high-pressure and severe-service applications with rugged valve control.
  • Industrial Manufacturing: Automated valve control for process optimization and regulatory compliance.
  • Water Treatment: Integrated into systems for process control and regulation.

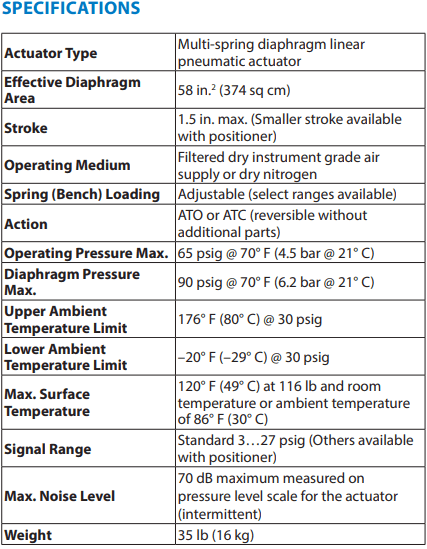

  • Actuator type: Pneumatic, multi-spring diaphragm
  • Compatibility: Designed for the RCV product line
  • Operating temperature: –20 to 176°F (–29 to 80°C)
  • Max. pressure range: Up to 65 psi (4.5 bar)
  • Standard signal range: 3–27 psig (other ranges available with positioner)

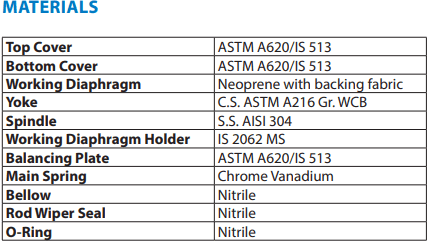

  • Construction: Yoke and actuator housings in carbon steel, epoxy-coated for corrosion resistance
  • External hardware: Stainless steel
  • Field reversible: Yes, without additional parts
  • Available actions: Air-to-open or air-to-close

Download Brochure

Specification Sheet
Manual Sheet
