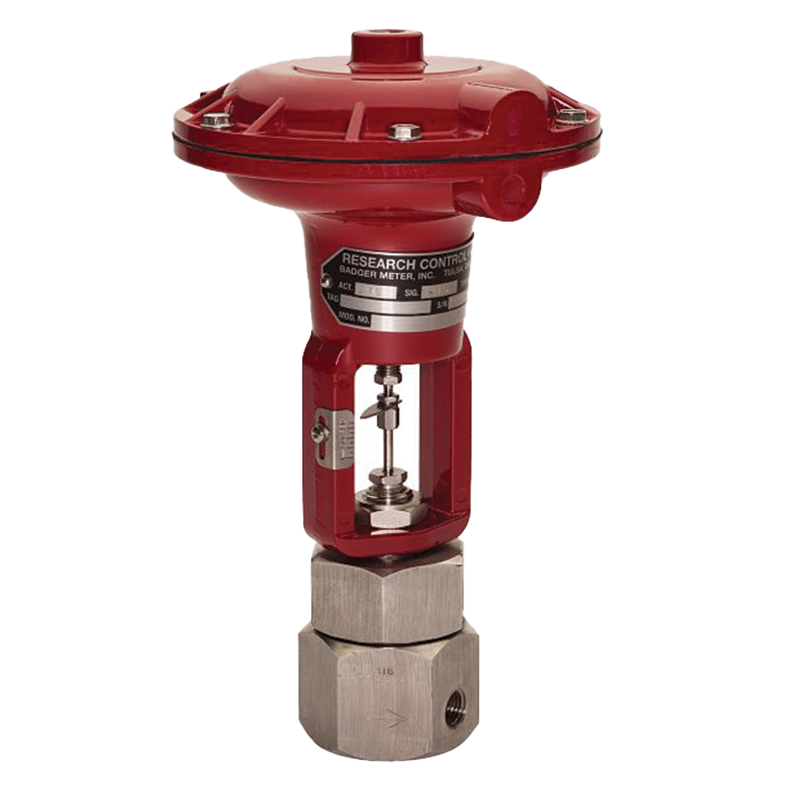

10,000 PSI Type HP-10 High Pressure Control Valve

DESCRIPTION

The Type HP-10 high-pressure control valve is available in 1/4 inch and 1/2 inch line sizes and Globe or Angle configurations. It is specially designed for the control of high-pressure liquids and gases.

APPLICATIONS

The Type HP-10 valve is widely used in industrial applications, research, and process pilot plants on liquids and gases where pressures are above our standard Type 807 control valve ratings

SPECIFICATIONS

STANDARD FEATURES

  • Wide range of interchangeable trims
  • Choice of linear or equal percent on most trims
  • TFE chevron ring packing
  • ANSI Class IV shutoff (size “O” and larger)

OPTIONAL FEATURES

  • AE high-pressure fittings
  • Socket weld and butt weld ends
  • Casing flange
  • Globe pattern body
  • Graphite packing
  • REK packing (Reduced Emissions)
