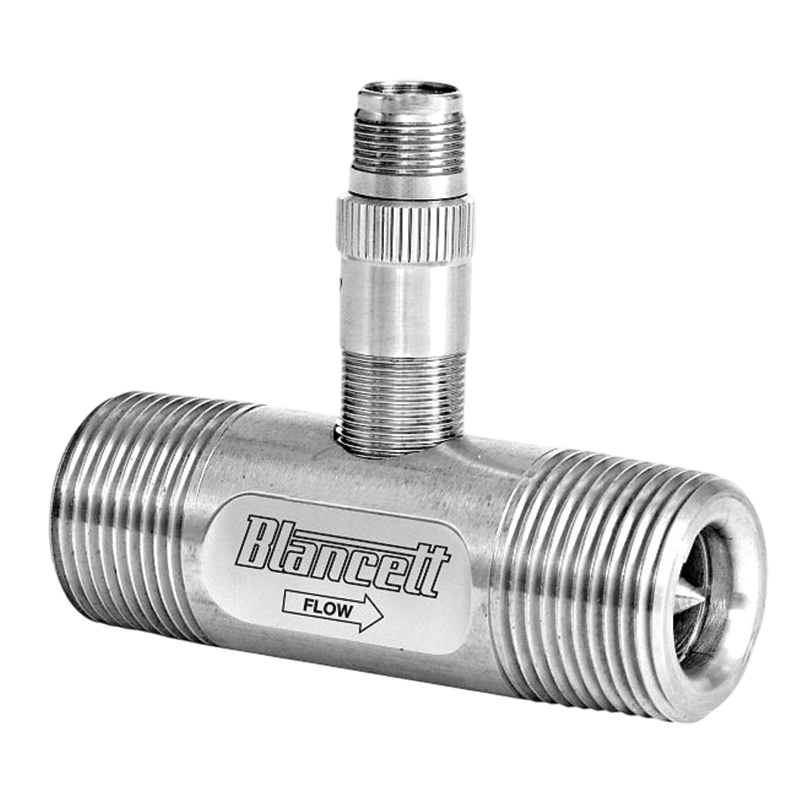

Model 1200 In-Line Turbine Flowmeter

The Blancett Model 1200 in-line turbine flow meter was engineered for applications in highly corrosive environments. Developed for use in petrochemical and other process industries with liquid chemical flows, the Model 1200 turbine meter provides accuracy and durability in aggressive industrial environments. The meter features a 303 stainless steel body and internal wetted parts, with two type-440 stainless steel ball bearings.

The Model 1200 maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects and many industrial applications.

When paired with a Blancett flow monitor, the Model 1200 turbine meter meets a wide range of measurement requirements. This makes it ideal for
applications such as pipelines, production/injection fields, mining operations, offshore facilities, and other industrial applications. For a full list of Blancett flow monitors, see www.badgermeter.com

Get A Quote
Explore More Product
  • Offers accurate and repeatable flow measurement in ranges from 0.25…25 gpm (0.57…94.64 lpm)
  • Cost-effective solution for turbine flow meter applications
  • 303 stainless steel construction offers long service life in severe operating environments
  • Available in NPT end connections
  • NIST traceable calibration
  • Installation in pipe sizes 1/4…3/4 inch (6.35…19 mm), with or without a bypass line
  • Integrates electronically with a Blancett B2900 flow monitor
  • K-factor Scaler, or the F to I/F to V Intelligent Converter Field replaceable repair kits allow for turbine replacement without loss of accuracy

INSTALLATION

The Model 1200 turbine meter is simple to install and service. It operates in a horizontal orientation with the flow direction arrow aligned in the same direction as the actual line flow. For optimum performance, install the flow meter with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.

  • Petrochemical: Ideal for corrosive liquid chemical flows.
  • Oil & Gas: Commonly used in water flood projects and abrasive fluid measurement.
  • Industrial Processes: Suitable for aggressive and demanding fluid applications.
  • Pipelines & Injection Fields: Robust design supports accurate flow measurement in harsh environments.
  • Mining: Handles corrosive and abrasive mining fluids effectively.
  • Offshore: Durable construction makes it reliable for offshore operations.
  • Size: 6–19 mm (¼–¾ in)
  • Flow Range: 0.57–94.64 lpm (0.25–25 gpm)
  • Pressure Range: Up to 275 bar (4000 psi)
  • Temperature Range: –51 to 177 °C (–60 to 350 °F)
  • Material: 303 stainless steel
  • Accuracy: ±1.0% of reading
  • Repeatability: ±0.1%
  • End Connection: NPT male
  • Calibration: NIST traceable
