SCADA System

Full Form, Working, Architecture & Integration by Aaxis Nano

SCADA stands for Supervisory Control and Data Acquisition — a powerful system used for industrial automation and centralized monitoring. It collects real-time data from machines, sensors, and devices across large-scale operations, enabling intelligent decision-making and remote control.

From manufacturing and power distribution to water treatment and infrastructure, SCADA systems are at the heart of modern industrial efficiency.

What Is SCADA and How It Works?

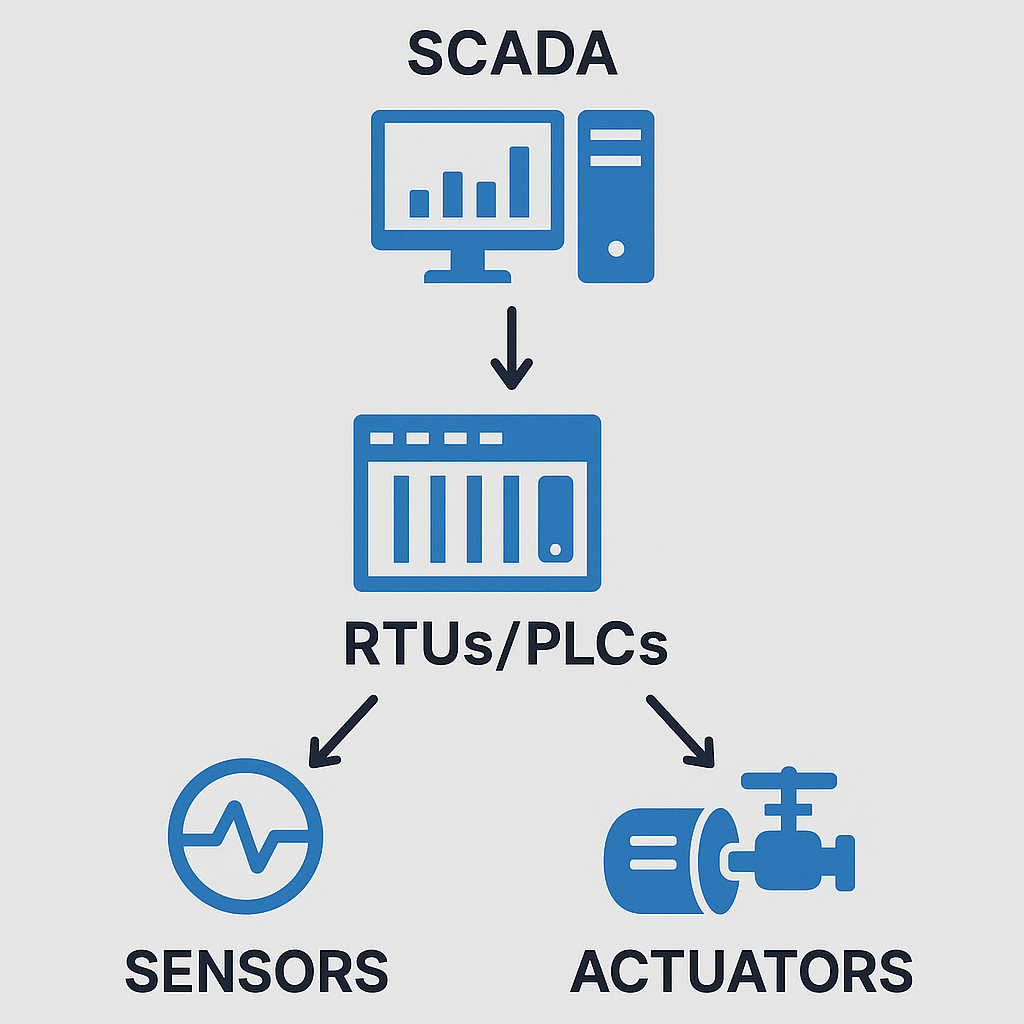

Visual representation of working of SCADA

Visual representation of working of SCADA

A SCADA system allows industries to monitor and control remote or distributed assets from a central location. It connects with sensors, field instruments, and control hardware like PLCs to ensure smooth operations with real-time feedback.

Key SCADA Components:

  • Sensors & Actuators – Gather field data like pressure, temperature, flow, etc.
  • PLCs & RTUs – Execute control tasks and transmit information
  • Communication Networks – Send and receive data securely
  • HMI/SCADA Software – Visualize data, set alarms, and issue control commands

How It Works:

  • Inputs are read
  • Logic is processed by PLCs
  • Outputs are updated
  • Data is sent to the central SCADA interface

SCADA Full Form in Electrical Systems

In the electrical sector, SCADA systems are critical for real-time control and monitoring of:

  • Substations
  • Power grid infrastructure
  • Load balancing
  • Transmission & distribution automation
  • Emergency responses and remote diagnostics

With SCADA, utilities can prevent outages, optimize power usage, and respond to failures instantly.

SCADA PLC Integration – Smart Automation in Action

PLC (Programmable Logic Controller) and SCADA work together to create a reliable, automated control system. While PLCs control specific machines and processes, SCADA acts as a central hub for supervisory tasks, reporting, and analytics.

Benefits of SCADA + PLC Integration:

  • Real-time visibility into plant operations
  • Predictive maintenance and early alerts
  • Automated data logging and reporting
  • Minimal downtime with intelligent alarms

Industries Using This Combo:

  • Water & wastewater treatment
  • Manufacturing lines
  • Oil & gas refineries
  • Food processing
  • Transportation hubs
  • Smart infrastructure

5 Levels of SCADA Architecture – A Structured Control System

Level Name Role
0 Field Devices Sensors, valves, actuators
1 Control Layer PLCs, RTUs manage direct control
2 Supervisory Layer SCADA software and HMI dashboards
3 Production Layer MES (Manufacturing Execution Systems)
4 Enterprise Layer ERP integration, reporting, cloud access

What’s the Difference Between PLC and SCADA?

Aspect PLC SCADA
Function Executes local control logic Supervises, monitors, visualizes
Location On-site, connected to equipment Centralized monitoring
User Interface None or basic indicators GUI-based, graphical dashboards
Flexibility Fixed once programmed Configurable in real-time
Data Handling Real-time control Real-time + historical analytics

Think of PLC as the hands doing the work and SCADA as the brain overseeing everything.
