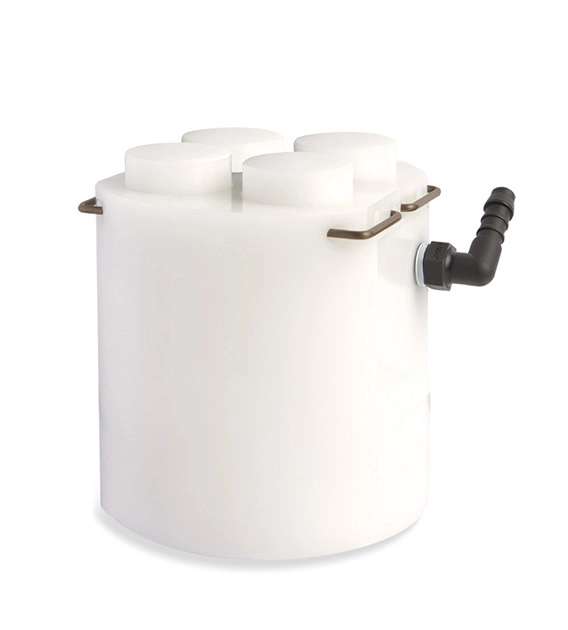

Sensors flow assembly for four s::can physical probes
The s::can flow assembly for four physical probes is a flow cell/pipe::scan system designed to measure multiple water quality parameters at once in a bypass or in-line installation. It ensures proper flow, pressure, and temperature conditions for accurate sensor performance and interfaces seamlessly with Badger Meter displays or data acquisition systems.
- Impeller design: Durable 4–6 blade, non-magnetic, non-fouling impeller that tolerates debris.
- Signal output: Offers a low-impedance square-wave output proportional to flow, or a 4–20 mA analog signal for PLCs and data loggers.
- Long-distance transmission: Supports cable runs up to 2000 ft without the need for signal amplification.
- Performance: Provides reliable accuracy and repeatability even at low flow rates, typically without needing calibration.
- Applications: Suitable for clean water systems, HVAC, industrial process flow monitoring, and wastewater applications.
- Wastewater Treatment Plants: Supports continuous monitoring for compliance, process optimization, early event detection, and chemical dosing control.
- Industrial Process Control: Monitors process water, chemical flow, and effluents across diverse industrial applications.
- Building Services & HVAC: Helps maintain energy efficiency and prevent corrosion in closed-loop HVAC systems through reliable water quality monitoring.
- Irrigation & Grounds Management: Ensures efficient water use and assesses water source quality for large-scale irrigation systems.
- Environmental Monitoring: Suitable for pump monitoring, system flow balancing, wastewater reuse tracking, and broader water resource management.
- Bypass installation: Designed for bypass setups where a controlled portion of the main flow passes through the chamber for measurement.
- Capacity: Holds one i::scan probe plus up to three additional sensors (e.g., condu::lyser, ammo::lyser).
- Easy integration: Supports straightforward flow-through or bypass installation.
- Durable materials: Typically made from POM-C or PVC, selected based on application needs (wastewater, surface water, etc.).
- Cleaning option: Supports optional automatic cleaning with an auto-brush for the i::scan probe.
