- Wastewater treatment: Automatic cleaning keeps sensors accurate in high-TSS, high-turbidity conditions.
- Environmental monitoring: Ideal for continuous nitrate monitoring in rivers and lakes with minimal manual maintenance.
- Remote stations: Provides reliable, low-maintenance operation where manual cleaning is difficult.
- Industrial processes: Self-cleaning ensures long-term sensor reliability in challenging industrial fluids.

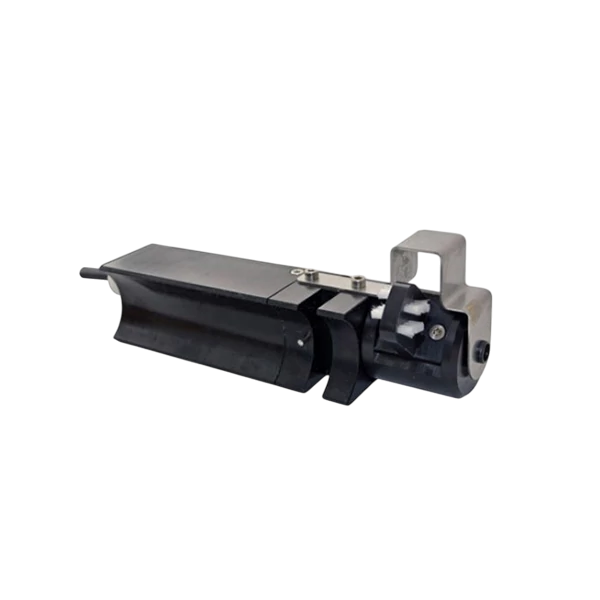

ruck::sack
- Submersible auto brush for spectrometer probes and i::scan
- Interchangeable brushes for spectrometer probes with path length 35.15.5 mm and i::scan 35.5 mm
- Same basic module for all variants
- The cover plate protects the brush from clogging
- Accessory for Spectrometer Probes: It attaches to Badger Meter’s s::can spectrometer probes and the iscan device to keep the optical windows clean.
- Automated Cleaning: It features an “autobrush” mechanism for mechanical cleaning of the probe’s measuring surface, reducing the need for manual maintenance.
- Submersible Design: The system is built for underwater use and can be submerged in various water sources for continuous monitoring applications.
- Protection: It includes a shelter that protects the brush mechanism from clogging with debris in the water.
- Exchangeable Brushes: The cleaning brushes are exchangeable, allowing for easy replacement and long-term use.
- Multiple Pathlengths: The accessory is offered in several pathlengths (5 mm, 15 mm, and 35 mm) to accommodate different measurement requirements.
Technical data
- Power supply: 12 VDC
- Power consumption (typical): 150 mA (average)
- Power consumption (max.): 300 mA
- Cable length: 8 m
- Housing material: POM-C
- Dimensions (WxHxD): 182 x 46 x 36.5 mm
- Weight (min.): 750 g (incl. cable)
- Installation/assembly: submerged
- Area of application Pressure 0 … 0.5 bar
- Protection category: IP68
- Storage temperature: -20 … 80 °C
- Storage Humidity: 0 … 95 %
Article number
- F-146-rs-35: ruck::sack submersible AutoBrush for spectro::lyser 35 mm
- F-146-rs-15: ruck::sack submersible AutoBrush for spectro::lyser 15 mm
- F-146-rs-05 : ruck::sack submersible AutoBrush for spectro::lyser 5 mm
- F-146-rs-i::scan-35: ruck::sack submersible AutoBrush for i::scan 35 mm
- F-146-rs-i::scan-05: ruck:: sack submersible AutoBrush for i::scan 5 mm
Recommended accessories
- F-146-brush-35: brush for ruck::sack – 35 mm spectro::lyser (spare part)
- F-146-brush-15: brush for ruck::sack – 15 mm spectro::lyser (spare part)
- F-146-brush-05: brush for ruck::sack – 5 mm spectro::lyser (spare part)
- F-146-brush-i::scan-35: brush for ruck::sack – 35 mm i::scan (spare part)
- F-146-brush-i::scan-05:brush for ruck::sack – 5 mm i::scan (spare part)
