AIR TEMPERATURE & HUMIDITY PROBES
RELIABLE MEASUREMENT OF AIR TEMPERATURE AND AIR HUMIDITY FOR EXPERTS
Temperature and humidity measurements are needed for diverse requests and are of the most important meteorological parameters. Often both of the parameters are recorded with one sensor. SOMMER is offering with the Hydroclip and the MP-408A two very robust and long-term stable sensors for fulfilling highest requirements.

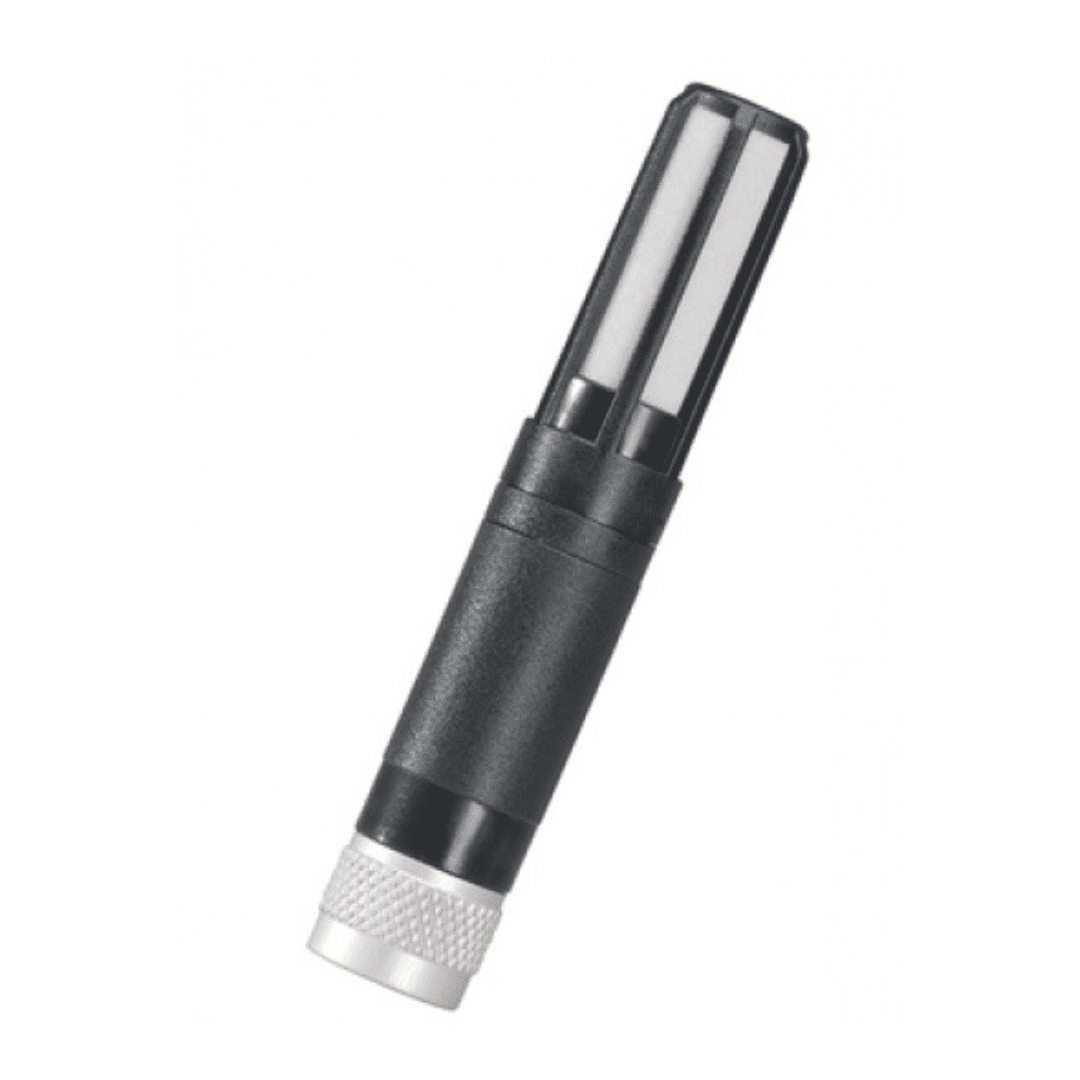

HYGROCLIP (HC2)
A very reliable and long-term stable sensor for extreme conditions. With its compact design it is easy installed in the field and can be easily integrated into existing systems.
- Exact and long-time stable sensor (1 % relative humidity / year)
- Resistant against moisture (dew) and dust (protection IP 65)
- Universal-power supply 5 … 26.5 VDC
- quickly and simply exchangeable through plug connection
MP-408A
The MP-408A sensor is featured with special accuracy, reliability and long-term stability especially also under extreme conditions. It is equipped with specially developed weather protection shield. Meteo sensors of highest quality and long lifetime are developed for demanding application in the nature.
- Exact and long-term stable sensor
- Resistant against moisture (dew) and dust
- Universal-power supply 5 … 26.5 VDC
- Meteorology & Weather Monitoring: Used in automatic weather stations (AWS) for ambient air data, forecasting, climate studies, and avalanche warning systems.
- Hydrology: Supports flood warning and hydrographic monitoring networks by providing essential air-condition data.
- Alpine & Extreme Environments: Designed for long-term reliability in remote, high-alpine, and harsh conditions.
- Industrial Control: Integrates with industrial control systems and BMS for monitoring climate conditions in machinery rooms, warehouses, and sensitive facilities.
- Agriculture & Greenhouses: Used in smart farming and greenhouse environments to optimize crop growth, humidity control, and irrigation.
HYGROCLIP (HC2)
- Measuring element/ principle hygrometer AC-1 / Pt100
- Measuring range humidity 0 … 100 % rh; accuracy: ±1.5 % rh
- Measuring range temperature -40 … +100 °C; non-linearity: 0.3 °C (at 23 °C)
- Output 0 … 1 VDC
- Voltage supply 3.5 … 50 VDC
- Powerc onsumption approx. 4 mA
- Protection IP 65
- Dimensions ø 15 mm; length 100 mm
MP-408A
- Measuring element/ principle capacitive / Pt100
- Measuring range humidity 0 … 100 % rh; Accuracy: ±1.5 %
- Measuring range temperature -40 °C … +60 °C; non-linearity: 0.1 °C (at 0 °C)
- Output 4 … 20 mA
- Voltage supply 5 … 26.5 V DC
- Power consumption max. 50 mA
- Protection IP 65
- Dimensions ø 25 mm; length 260 mm
