Heavy Metal Sensors and Kits

Sensor Kits Include
(Equipment for (25) Tests and/or Calibrations):

  • (25) Sensor Bags with Sensor & Cuvette
  • (25) Sample Tubes (with buffer)
  • (25) 1 mL Syringes
  • (15) Disposable Transfer Pipettes
  • 3-8 mL Analyte Standard Solution
  • Instruction Manuals
  • Material Safety Data Sheets (MSDS)

Additional Parameters in Development:

  • Chromium
  • Arsenic
  • Nickel
  • Silver
  • Calcium
  • Magnesium
  • Sodium
  • And more as the Market Demands…

Sensor Accuracy:

 SensorDetectable Range (Dilution Available)         Part               NumberAccuracy
Lead2-100ppbAND010Greater of 15% or 2ppb
 Uranium2-60ppbAND011Greater of 15% or 2ppb
Copper0.1-2ppmAND017Greater of 15% or 0.05ppm
MercuryPass/Fail at 2ppb
(up to 50ppb)
AND014N/A
Zinc 1-15ppmAND015Greater of 20% or 1ppm
Cadmium0.1-1.0ppmAND016Greater of 15% or 0.1ppm

Description

Sensors and Kits

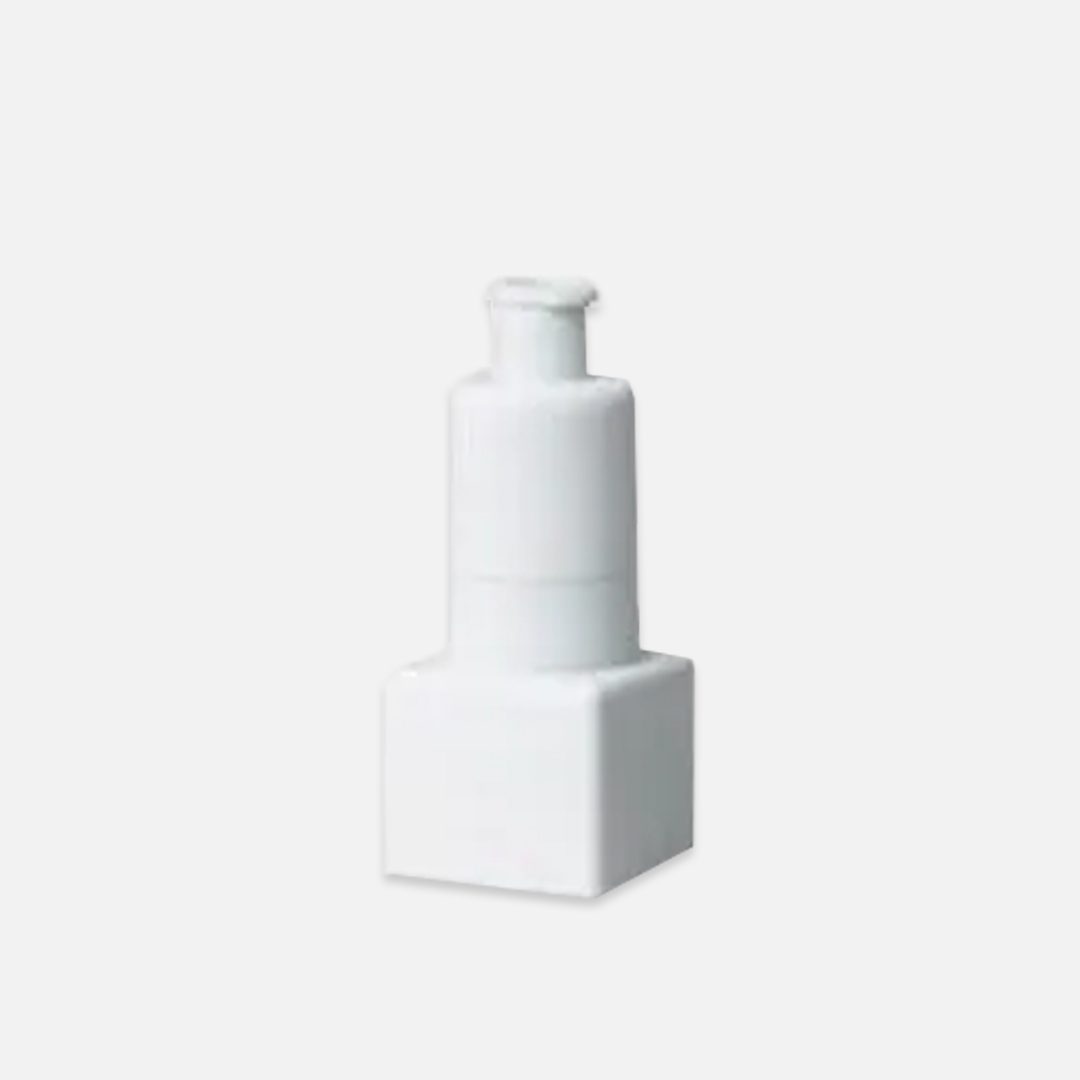

Each disposable color-coded sensor is designed for a specific heavy metal test target. Kits provide sampling tubes, syringes and cuvettes. Sensors, supplies and fluorimeter are also sold separately.  ANDalyze’s proprietary Catalytic DNA sensors use a DNAzyme reaction mechanism that fluoresces in the presence of a target contaminant substance such as lead. The fluorescence of the reaction is measured to determine the toxicity of the target heavy metal and is reported in parts per billion (ppb).

To help differentiate the materials specific to each analyte, the packaging has been individually labeled and the sensor housings and buffer caps have been color coded.
