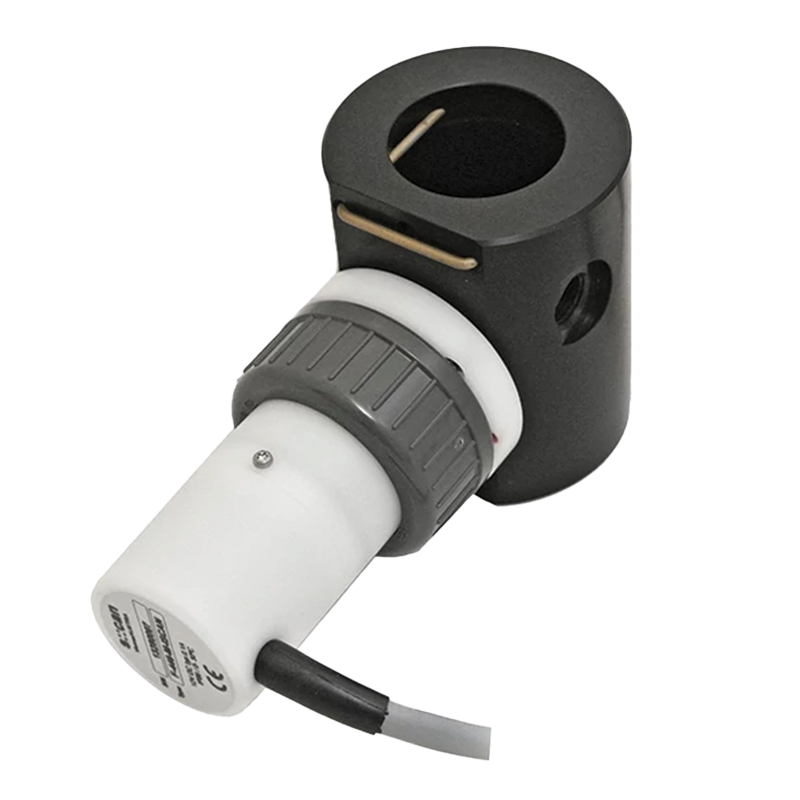

Flow assembly, Pom-C (for i::scan)
- For easy and proper bypass installation of an i::scan
- Automatic cleaning for i::scan by auto brush possible (optional)
- Housing Material: The main body of the flow assembly is made from POM-C (Polyoxymethylene Copolymer), a durable and robust engineering plastic known for its high strength, rigidity, and resistance to impact and chemicals.
- Installation: It facilitates the proper and easy installation of the s::can i::scan probe in a flow-through setup, allowing the water sample to pass directly through the measurement area.
- Accessory Compatibility: The assemblies are designed to be used with other accessories, such as an optional automatic cleaning system (autobrush) to reduce maintenance requirements.
- Versatility: Specific flow cell bypass fittings are available for different application needs, including configurations that can accommodate the i::scan and up to three additional physical probes (e.g., pH, ORP, conductivity sensors).
- Wastewater Treatment: Installation of the i::scan and related sensors for monitoring parameters like COD, TOC, N03, N02, and TSS.
- Drinking Water: Monitoring water quality parameters in potable water applications, often without the need for automatic cleaning features in this context.
- Commercial and Industrial Settings: As part of comprehensive solutions for process optimization, regulatory compliance, and cost control in various industries.
Technical data
- Housing material: POM-C
- Dimensions (diameter x length): 70 x 86
- Process connection: G 1/4″, hose nozzle 7mm
- Installation/assembly: flow fitting
- Temperature range: 0 … 50 °C
- Pressure range: 0 … 6 bar
- Article number: F -46-i::scan (without auto brush)
- Item number: F-446-i::scan (with auto brush)
Recommended accessories
- F-501-eco-us System Panel micro::station US
- F-501-eco-eu System Panel micro::station EU
- F-45-process Process connection 1/4″ G
- F-45-fl ow-1 unit for automatic flow limitation
- F-45-strain inlet filter
- F-446-m-i::scan i::scan auto brush for F-46 flow fittings
