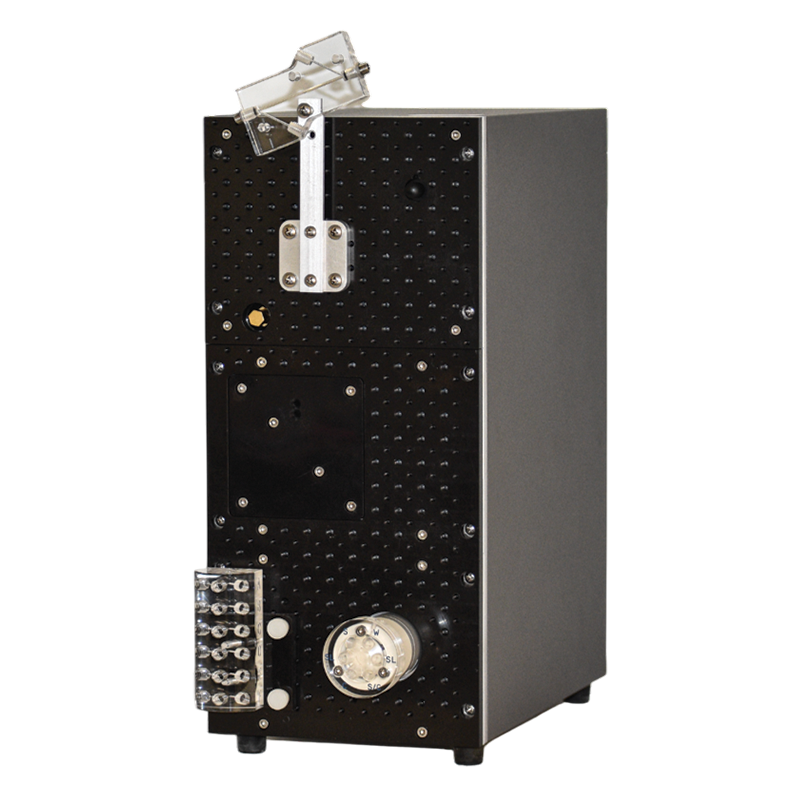

FIAlyzer-FLEX
DESCRIPTION
The FIAlyzer-FLEX has a modular design, whereby the instruments can be combined into a 1-4 channel system with a combination of methods. This allows laboratories that need to analyze one set of samples for several analytes to do so in one run; conversely, a lab that is focused on a single parameter or prefers a dedicated system for each parameter can select a single-channel option.
Analyzer
- Type: Flow Injection Analyzer, single channel, expandable to multiple channels
- Enclosure material: Aluminum (gray powder-coated / anodized)
Peristaltic Pump
- Type: 16-channel peristaltic, individual pressure plates
- Materials: Aluminum, Acetal, stainless steel
- Tubing type: 2-stop PVC Peristaltic Pump Tubing
Valve
- Type: 6-port; Two Position Injection Valve
- Wetted materials: PPS, Valcon E2 (proprietary reinforced PTFE composite)
- Port type: Flat-bottom ¼-28
Dimensions
- Height: 13 in (33 cm)
- Width: 6 in (15 cm)
- Depth: 9.8 in (25 cm)
- Weight: 26 lb (4 kg)
Communication
- Input: USB
- Control options: FIAsoft software
Power requirements
- Voltage: 24 Vdc
- Current: Max. 2.5 A
