- Modular & Compact: Single channel expandable to 4 channels; footprint under 1 sq. ft.
- Automated Analysis: Full automation for liquid handling, sample preparation, and detection
- Peristaltic Pump: 4-channel, precise; uses 3-collar tubing (one spare) for cost savings; capable of overnight operation
- Lab-on-Valve (LOV): Integrates mixing and reaction in the manifold for efficient analysis
- Spectrometer: Full array (400–900 nm) for simultaneous readings; broadens concentration range and reduces noise
- Injection Valve: 6-port, two-position, with an inexpensive rotor
- Capabilities & Applications:
- Methods: EPA/SM methods for Ammonia, TKN, Nitrate/Nitrite, Phosphate (Orthophosphate, Total P), Sulfate
- Analysis: Nutrients (N, P), Phenols, Surfactants, Metals
- Throughput: Up to 250 samples/hour
- Applications: Environmental monitoring (water, soil), agricultural testing, fertilizer analysis, research
- Software & Control:
- FIAsoft: Customizable in-house software for control, data processing, and reporting (CSV, LIMS integration)
- Real-Time Data: View active wavelengths, zoom, pan, and inspect peaks easily
- QC Features: On-the-fly QC checks with software flags
- Benefits:
- Robust & Reliable: Durable design for routine lab use
- Low Cost: Inexpensive pump tubing and efficient design
- Flexible: Adaptable to single or multi-parameter needs; compatible with autosamplers

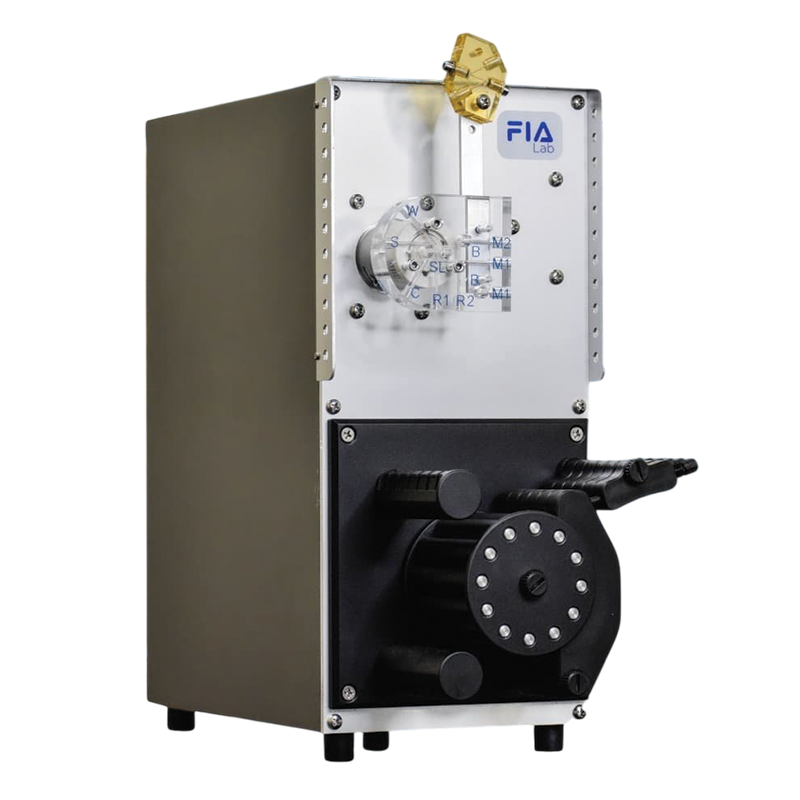

FIAlyzer-1000 Series
The FIAlyzer-1000 has a modular design, whereby the instruments can be combined into a 1-4 channel system with a combination of methods. This allows laboratories that need to analyze one set of samples for several analytes to do so in one run; conversely, a lab that is focused on a single parameter or prefers a dedicated system for each parameter can select a single-channel option.
Environmental Labs:
- Water Quality: Analyze drinking water, wastewater, and runoff for nutrients (ortho-phosphate, total phosphorus, nitrate, nitrite, ammonia, TKN) and other substances
- Toxic Substances: Detect various pollutants in water matrices
Agricultural Labs:
- Soil & Plant Analysis: Test soil, plant tissue, and manure for nutrient content
- Fertilizer Analysis: Quality control for fertilizer products
Industrial & Research:
- Semiconductor Manufacturing: Quality control applications
- Research: Develop methods for seawater analysis, biochemical events, and radiochemical purification
- Analyzer:
- Type: Flow Injection Analyzer, single channel, expandable to multiple channels
- Enclosure Material: Aluminum (gray powder-coated / anodized)
- Peristaltic Pump:
- Type: 6-channel, individual pressure plates
- Materials: Aluminum, stainless steel
- Tubing: 2-stop PVC Peristaltic Pump Tubing
- Valve:
- Type: 6-port, Two Position Injection Valve
- Wetted Materials: Plexiglas, Valcon E2 (reinforced PTFE composite)
- Port Type: Flat-bottom ¼-28
- Relay Output:
- Voltage: 24 V
- Current: Max 4 mA
- Dimensions:
- Height: 13 in (33 cm)
- Width: 6 in (15 cm)
- Depth: 9.8 in (25 cm)
- Weight: 17.5 lb (7.9 kg)
- Communication:
- Input: USB
- Control Options: FIAsoft software
- Power Requirements:
- Voltage: 24 VDC
- Current: Max 2.5 A
