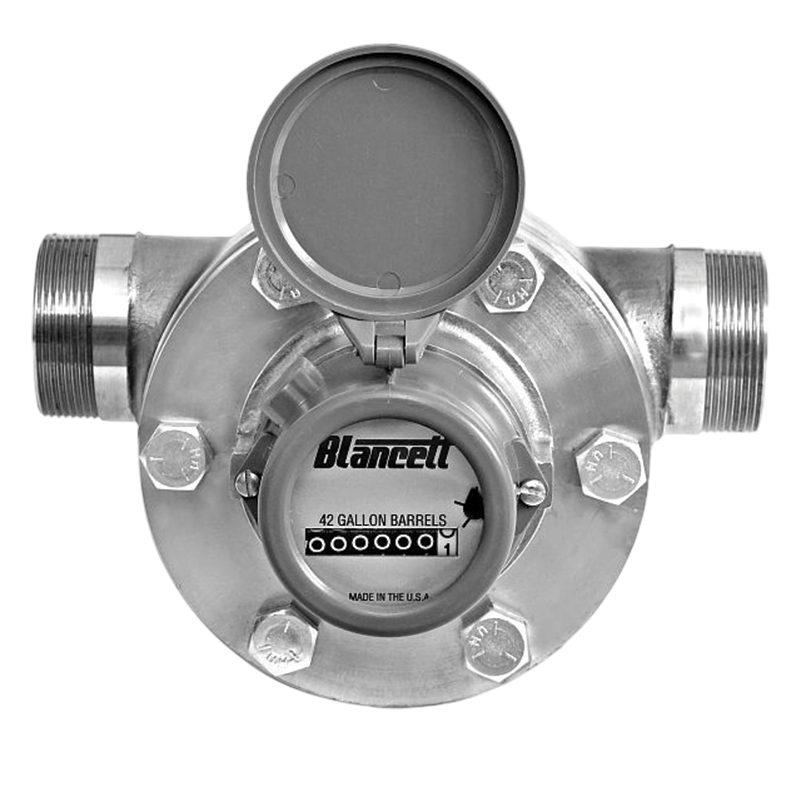

900 Series Flowmeter
Blancett 900 Series positive displacement flow meters are designed specifically for the measurement of floodwater line flow in secondary oil recovery operations. Using a time-proven rotary vane mechanism, the 900 Series flow meters provide reliable long-term measurement and totalization with minimum attention and maintenance.
• Interchangeable inlet inserts with three different-sized orifices
• Pre-calibrated orifices for specific low, medium, and high meter flow ranges
• Vaned impeller operates at pressures up to 5000 psi
• Two end connections: 2 in. NPT (male) and 1 in. NPT (female)
- Secondary oil recovery: Measures injected floodwater volume to maintain reservoir pressure and improve oil extraction.
- Well testing & production: Used in upstream operations requiring reliable, long-term flow measurement.
- Meter Type: Positive Displacement (Rotary Vane)
- Application: Floodwater line flow in secondary oil recovery; general industrial fluids
- Size Range: 1 in. & 2 in. (25–50 mm)
- Flow Range: 2–90 gpm (7.5–340.7 lpm), based on orifice insert
- Accuracy: ±2% of reading
- Repeatability: ±0.1%
- Maximum Pressure: Up to 5000 PSI (345 bar)
- Operating Temperature: 30° to 200°F (–1° to 93°C)
- Body Material: Stainless steel
- Internal Components: Polymer rotor, bearings, shaft & supports
- End Connections: 1 in. FNPT & 2 in. MNPT
- Recommended Strainer: 60-mesh
