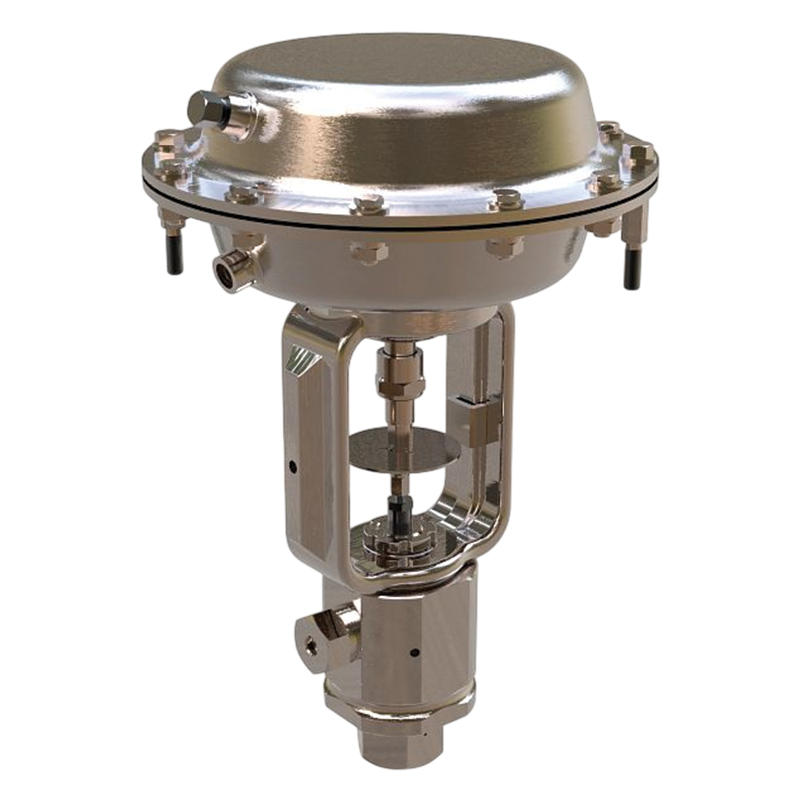

60,000 PSI Type HP-60 Ultra High Pressure Control Valve

DESCRIPTION

The HP-60 is an ultra-high pressure control valve using a 17-4 PH body along with a solid Stellite® inner valve assembly. The HP-60
can be used for both flow control as well as a Class IV shutoff valve. The versatility of the HP-60 creates a singular solution for your high-pressure applications.

APPLICATION

The HP-60 valve is used in industrial applications, research, and process pilot plants on liquids and gases. The main use is in high-pressure chemical injection, which is used in the production of high-pressure low-density polyethylene (HPLDPE).

SPECIFICATIONS

STANDARD FEATURES

Wide range of interchangeable trims
Choice of linear or quick opening trims
ANSI Class III shutoff for sizes P-1 through P-6
ANSI Class IV shutoff for sizes K through O
Solid Stellite inner valve
9/16 in. high-pressure cone and collar fittings (F562C)
The pressure rating of 60,000 psi (4136.85 bar) at 100° F (37.78° C)
Maximum upstream pressure is 60,000 psi (4136.85 bar)
Maximum downstream pressure is 47,150 psi (3250.88 bar)
(for higher downstream pressure, consult the factory)
